Manual Hand Winch Stacker

Name: Manual Hand Winch Stacker
Brand: Beacon
Price: 1934.89 USD
Availability: InStock

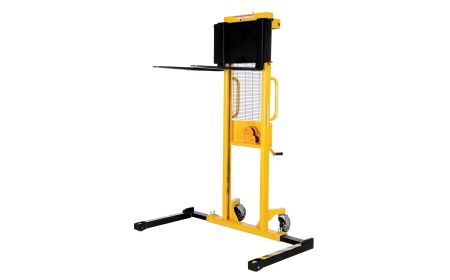

Manual Hand Winch Stacker - BVWS Series by Beacon Industries

Beacon® BVWS-770 Series

Manual Hand Winch Stacker features heavy duty mast design with manual winch operation for simple use. This Pallet Truck is maintenance free, easy to use and operate.

Starting at: $1,934.89

See chart below and click a model number

Product Details

Construction: Sturdy Design includes steel construction, factory assembled.
Size: Dimensions: 42.25" Wide x 47" Long x 78.18" High.
Service Range: 1-9/16" to 59".
Lowered Fork Height: 1-9/16", or 3-3/8
Raised Fork Height: 59"
Overall Width: Adjustable forks minimum 6" OD to maximum 26-3/4" OD. Straddle leg minimum 35-1/2" ID to Straddle leg maximum 47-1/4" ID.
Overall Fork Width: 3-1/8" or 4"
Overall Fork Length: 30"
Powered: Manual Hand Winch Stacker with full height push handle allows for easy steering. Features hand winch steel cable mechanism for lifting and lowering, 3/4" lift per handle revolution.
Power: Manual Push.
Color: Black / Yellow
Capacity: 770 lbs.
Standard: Manual Hand Winch Stacker features 2 front 4" diameter wheels.
Note: Units with the suffixes AA is for adjustable fork (works with pallets and skids), FF is fixed forks (works with skids only).

Manual Hand Winch Stacker - BVWS-770 Series
Model No.	Capacity (LBS)	Lift Height	Lower Height	Adjustable Forks Minimum Outside Dimension	Adjustable Forks Max. Outside Dimension	Straddle Leg Minimum Inside Dimension	Straddle Leg Max. Inside Dimension	Price
1) BVWS-770-AA	770	59"	1-9/16"	6¼"	26¾"	35½"	47¼"	$1,977.50
2) BVWS-770-AA-DC	770	59"	1-9/16"	6"	24"	35½"	47¼"	$5,018.23
3) BVWS-770-FF	770	59"	3⅜"	-	-	-	-	$1,934.89
4) BVWS-770-FF-DC	770	59"	3⅜"	-	-	-	-	$4,706.46
OPTION
Model No.	Description							Price
5) BVWS-DK	Removable Steel Platform 27¼"x42¼"							$310.41
