Platform Scale

Platform Scale - Warehouse Scale - BVLPFS series

Beacon® BVLPFS Series

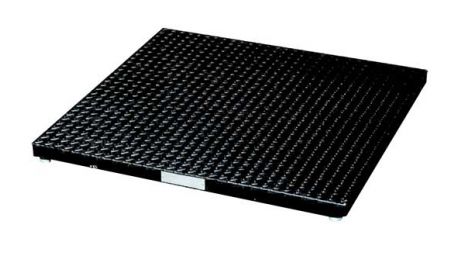

The Platform Scale is designed for use in high volume shipping and receiving areas. These Warehouse Scale units may be either free standing or pit mounted. Units have overload protection up to 150% of rated capacity. These models also feature adjustable leveling feet. The display is 6 digit and 7 segment with bidirectional RS232 port, pounds or kilograms options, and 5 controls: Print, Net/Gross Weight, Unit, Tare, and Zero.
Starting at: $1,806.13

See chart below and click a model number

Product Details

  • Construction: The platform is constructed from diamond tread heavy duty mild steel for many years of heavy use. The platform also has welded channel support. Indicator is stainless steel.
  • Size: Platforms range in size from 36" to 60" wide, 36" to 60" long, and 2-3/4" to 4" high.
  • Powered: Models have a 110V AC power supply.
  • Color: This series is powder coated Beacon black.
  • Weight: Units range in weight from 200 to 446 lbs.
  • Capacity: Models have uniform and sensor capacities of 2,000 or 4,000 lbs.
  • Options: Optional approach ramps for either side of the Platform Scale are available. Units are 36" wide x 36" long, 48" wide x 36" long, or 60" wide x 36" long. All ramps have a 4.45 degree angle and are 4-1/2" high.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Documents

Options

Platform Scale - BVLPFS Series
Model No. Capacity (LBS) Sensor Capacity (LBS) Indexing Accuracy (LBS) Power Overall Size (W x L x H) Price
1) BVLPFS-2 2,000 2,000 0.50 110V AC 36"x36"x2¾" $1,806.13
2) BVLPFS-4A 4,000 4,000 1 110V AC 48"x48"x2¾" $1,966.37
3) BVLPFS-4B 4,000 4,000 1 110V AC 60"x60"x2¾" $2,346.74
OPTION
Model No. Description Size (W x L x H) Angle Price
4) BVLPFS-R-3636 Approach Ramp 36"x36"x4½" 4.45° $621.88
5) BVLPFS-R-3648 Approach Ramp 48"x36"x4½" 4.45° $733.87
6) BVLPFS-R-3660 Approach Ramp 60"x36"x4½" 4.45° $886.39
