Pallet Truck Scale

Pallet Truck Scale - BEPT series

Beacon® BEPT-SCL Series

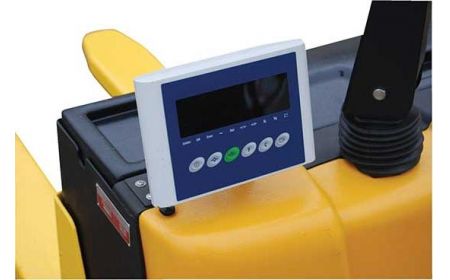

The Pallet Truck Scale provides the ability to verify incoming and outgoing shipments without the load needing to leave the unit. This unit feature an LCD scale with 5 function keys--Tare, Net/Gross, Zero, Print, LB/KG--and 1/2" high, easy-to-read characters. The display shows weight in 1-lb. increments within the rated capacity and features best accuracy of 0.01% of maximum calibrated weight. The ergonomic handle with easy-to-use throttle has infinite adjustment of forward and reverse speeds, emergency reverse function, lift and lower controls, and horn. The electromagnetic disc brake has an auto dead-man function when the operator lets go of the handle.
Starting at: $7,333.25

See chart below and click a model number

Product Details

  • Construction: This unit features reinforced welded forks with adjustable tie rods.
  • Size: Units are either 28-1/2" or 30-1/4" wide, 66" or 76-1/2" long, and 49" high. The scale is 6" long x 8-1/2" long x 5" high. Rider platforms are 12" long x 18" wide x 4-3/4" high.
  • Service Range: Lowered height is either 3.1" or 3.2". Raised height is 7.8" or 8.2".
  • Overall Fork Width: Forks are 25" or 27" wide overall. Individual forks are 6-7/8".
  • Overall Fork Length: Forks are 47" or 48" long overall.
  • Power: Unit features 24V DC 0.7 or 1.2 KW drive and1.3 or 2.0 KW lift motors. Standard battery is 6V, 95 Ah. AGM battery also available. Units with 3,000-lb. capacities have 2 batteries; 4,500-lb. units use 4. Display functions with standard alkaline batteries.
  • Weight: Units weigh from 622 to 910 lbs.
  • Note: This unit is not NTEP approved.
  • Operation: 3,000-lb. units operate at full charge for 3 to 4 hours or 8 hours when used intermittently. 4,500-lb. units operate for 6 to 7 hours at full charge or 8 hours when used intermittently.
  • Capacity: 3,000 or 4,500 lbs.
  • Standard: An RS232 port is included for serial printing. Drive wheels are 10" x 3-1/8". Load rollers are 2-3/4" x 3". Stabilizing rollers are 1-1/2" x 3". All wheels and rollers are poly-on-steel. Units include either 2 or 4 batteries.
  • Options: Pallet Truck Scale units with optional ride-on operator platform, AGM battery, and printer are available.
  • Surcharge: Tariffs or surcharges may apply to current published pricing.

Documents



Pallet Truck Scale - BEPT-SCL Series
Model No. Capacity (LBS) Forks (W x L) Individual Fork Width Service Range Overall Size (W x L x H) Operation Price
1) BEPT-2547-30-SCL 3,000 25"x47" 6" 3.1" to 7.8" 28½"x66"x49" 24V DC Motor, 12V 95 Ah Batteries (2) $7,333.25
2) BEPT-2748-45-SCL 4,500 27"x48" 6⅞" 3.2" to 8.2" 30¼"x76½"x49" 24V DC Motor, 6V 95 Ah Batteries (2) $9,022.51
Pallet Truck Scale with Rider Platform - BEPT-SCL Series
Model No. Capacity (LBS) Forks (W x L) Individual Fork Width Service Range Overall Size (W x L x H) Operation Price
3) BEPT-2748-45-SCL-RP 4,500 27"x48" 6⅞" 3.2" to 8.2" 30¼"x76½"x49" 24V DC Motor, AGM Batteries (4) $9,313.63
Pallet Truck Scale with AGM Battery - BEPT-SCL Series
Model No. Capacity (LBS) Forks (W x L) Individual Fork Width Service Range Overall Size (W x L x H) Operation Price
4) BEPT-2547-30-SCL-AGM 3,000 25"x47" 6" 3.1" to 7.8" 28½"x66"x49" 24V DC Motor, AGM Batteries (2) $7,611.43
5) BEPT-2748-45-SCL-AGM 4,500 27"x48" 6⅞" 3.2" to 8.2" 30¼"x76½"x49" 24V DC Motor, AGM Batteries (4) $10,460.84
Pallet Truck Scale with Rider Platform and AGM Battery - BEPT-SCL Series
Model No. Capacity (LBS) Forks (W x L) Individual Fork Width Service Range Overall Size (W x L x H) Operation Price
6) BEPT-2748-45-SCLRPAGM 4,500 27"x48" 6⅞" 3.2" to 8.2" 30¼"x76½"x49" 24V DC Motor, AGM Batteries (4) $10,751.85
OPTION
Model No. Description Price
7) BEPT-SCL-PT Optional Printer $611.21
8) BEPT-45-RP-KIT Optional Rider Platform - Field Installed $264.33
