Hydraulic Upender

Hydraulic Upender - Upender Rotator - BHUE Series

Beacon® BHUE Series

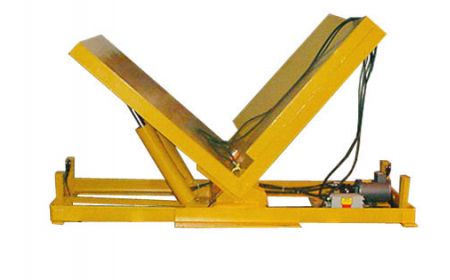

The rotating Hydraulic Upender upends and tilts work materials to an ergonomically correct position for the worker. This Upender Rotator features limit switches and mechanical stops in both directions. This tilter has double-acting hydraulic cylinders and smooth steel tops with 3-3/4" straight safety toe guards with safety stripes. The unit features hard, chrome-plated, polished shafting, hydraulic cylinder rods and axles. The series also has double-acting hydraulic cylinders and lifetime self-lubricating, anti-friction bearings at all pivot points for best overall performance.
Starting at: $30,315.30

See chart below and click a model number

Product Details

  • Models: Pricing below is only for the standard platform width and length. Additional charges will apply for a larger platform size above standard platform standard pricing and will be quoted individually by Beacon to the customer.
  • Construction: Features heavy-duty steel construction.
  • Size: The Hydraulic Upender units are available in a variety of platform sizes ranging from 24" wide x 36" long to 50" wide x 72" long. The chart below identifies the platform standard and maximum standard sizes.
  • Service Range: Hydraulic Upender models tilt up to 90 degrees. Units have lowered heights of either 10" or 18".
  • Electrical: The 2,000 and 4,000 lb. units are powered by a 3.2 Hp. 208/230/460 Vac, 3 Ph, 60 Hz., and the 8,000 to 12,000 lb. units are powered by 5 Hp. 208/230/460 Vac, 3 Ph, 60 Hz intermittent duty TENV super torque motor.
  • Capacity: The standard models are available with capacities ranging from 2,000 to 12,000 lbs. Special hydraulic models are available with capacities above 12,000 lbs. The special heavy capacity units greater than 12,000 lbs. will include redesign and engineering time, heavier capacity hydraulic cylinders, thicker deck, redefined substructure, and clevises points.
  • Options: The Hydraulic Upender options include a hydraulic sliding hold down clamp with independent control, a key operated up/down selector, electric toe guards, conveyor tops, ball transfer tops and Accordion Skirt.
  • Limited Warranty: To keep the warranty valid you cannot cantilever the geometric ratio weight beyond the center of gravity. All units are quoted the capacity within its deck size.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Usage: This item is made to order; therefore, delivery times are not guaranteed. Production schedules may fluctuate due to supply chain dynamics or unforeseen circumstances. Fulfillment times may vary and lead times are quoted as approximate only. A signed approval drawing is required prior to production. Freight, site preparation, installation and training are not included. The customer is responsible for ensuring the correctness of fit.
  • Note: Technical components may change during manufacturing because of upgrades or product supply.
  • BHUE - Video
  • BHUE - Clamp - Video
  • BHUE - Clamp - Test - Video

Documents
Hydraulic Upender - BHUE Series
Model No. Angle of Tilt Capacity (LBS) Platform Std. Widths Platform Max. Lengths Lowered Height Motor HP - Tilt Cylinder Qty - Tilt Upender Survey Sheet Required for Quote Note Price
1) BHUE-02-90 90° 2,000 24"-48" 36"-48" 10" 3.2 1 Yes A $30,315.30
2) BHUE-04-90 90° 4,000 24"-48" 36"-48" 10" 3.2 2 Yes A Call for Quote
3) BHUE-06-90 90° 6,000 24"-48" 36"-48" 10" 3.2 2 Yes A Call for Quote
4) BHUE-08-90 90° 8,000 30"-48" 50"-72" 18" 5 2 Yes A Call for Quote
5) BHUE-10-90 90° 10,000 30"-48" 50"-72" 18" 5 2 Yes A Call for Quote
6) BHUE-12-90 90° 12,000 30"-48" 50"-72" 18" 5 2 Yes A Call for Quote
Notes:
A: *Priced as the standard platform size, contact marketing for a larger platform size quote. See Options and Accessories for wall mount push button control, key lockout, foot operated control, limit switch, ball transfer top, electric toe guards, accordion skirts, beveled toe guards for pit mounting.
Hydraulic Upender Clamp - BHUE-CL Series
Model No. Angle of Tilt Capacity (LBS) Platform Std. Widths Platform Max. Lengths Lowered Height Motor HP - Tilt Motor HP - Clamp Cylinder Qty - Tilt Cylinder Qty - Clamp Upender Survey Sheet Required for Quote Note Price
7) BHUE-02-90-CL 90° 2,000 24"-48" 36"-48" 10" 3.2 1 1 1 Yes A Call for Quote
8) BHUE-04-90-CL 90° 4,000 24"-48" 36"-48" 10" 3.2 1 2 1 Yes A Call for Quote
9) BHUE-06-90-CL 90° 6,000 24"-48" 36"-48" 10" 3.2 1 2 1 Yes A Call for Quote
10) BHUE-08-90-CL 90° 8,000 30"-48" 50"-72" 18" 5 1 2 1 Yes A Call for Quote
11) BHUE-10-90-CL 90° 10,000 30"-48" 50"-72" 18" 5 1 2 1 Yes A Call for Quote
12) BHUE-12-90-CL 90° 12,000 30"-48" 50"-72" 18" 5 1 2 1 Yes A Call for Quote
Notes:
A: *Priced as the standard platform size, contact marketing for a larger platform size quote. See Options and Accessories for wall mount push button control, key lockout, foot operated control, limit switch, ball transfer top, electric toe guards, accordion skirts, beveled toe guards for pit mounting.

WarningPROP 65 WARNING

For California Residents: www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.

  OPTIONS:
1) Hydraulic Upender Options (15 items)
