Hydraulic Tilt Table

Hydraulic Tilt Table - Heavy Capacity Tilter - BHTT Series

Beacon® BHTT Series

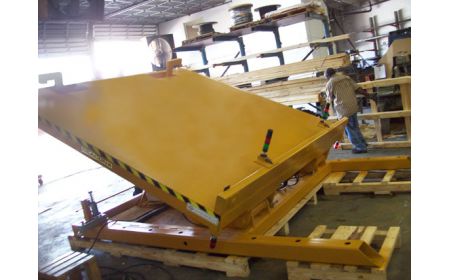

The workstation Hydraulic Tilt Table is heavy duty with deck sizes up to 120" x 120" and degree of tilt from 45 to 90 degrees. Capacities of these Heavy Capacity Tilter units range up to 6,000 lbs. Each product is electric hydraulic powered by a motor pump reservoir. The unit has an adjustable limit switch to control the tilt angle. Internal high pressure gear pump with check valve, relief valve, pressure compensated flow control valve, solenoid valve, suction, and return filters, make this series an efficient ergonomic work station piece of equipment.
Starting at: $12,549.78

See chart below and click a model number

Product Details

  • Construction: Heavy duty steel welded construction. Lifetime self-lubricating, anti friction bearings at all pivot points. Smooth steel top deck surfaces. Anchor grab claws or chains provided, please specify when ordering.
  • Electrical: 460 V AC, 3 Phase, 60 Hertz is Standard. (Optional electrical changes are available including Voltage, Phase and Hertz at an additional charge).
  • Powered: Internally mounted self contained horse power units ranging from 3/4 Hp to 1-1/2 Hp depending on the size of model. Optional Air (Rotary Air/Oil or Reciprocating Air/Oil) is available at an additional charge.
  • Installation: Base frame of the Hydraulic Tilt Table unit must be anchored to the floor.
  • Color: Structural surfaces are degreased, oxide primed, and finished with two coats of yellow enamel.
  • Operation: The hydraulics include single acting hydraulic cylinders with internal stops to 45 degree. Units which tilt from 45 to 90 degrees will include double acting hydraulic cylinders.
  • Standard: Straight safety toe guards with black and yellow safety stripes on toe guards.
  • Options: Options for the Hydraulic Tilt Table include: remote power unit, wall-mounted control station, key operated, foot control, up limit switch, electric toe guards, beveled toe guards, and accordion bellow skirting.
  • Limited Warranty: To keep the warranty valid you cannot cantilever the geometric ratio weight beyond the center of gravity. All units are quoted the capacity within its deck size.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Usage: This item is made to order; therefore, delivery times are not guaranteed. Production schedules may fluctuate due to supply chain dynamics or unforeseen circumstances. Fulfillment times may vary and lead times are quoted as approximate only. A signed approval drawing is required prior to production. Freight, site preparation, installation and training are not included. The customer is responsible for ensuring the correctness of fit.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

What Is A Hydraulic Tilt Table?

Documents
Hydraulic Tilt Table - 45 Degree Tilt - BHTT Series
Model No. Capacity (LBS) Platform Std. (Inches) Platform Max. (Inches) Base Up Speeds Tilt Table Survey Sheet Required for Quote Price
1) BHTT-2436-2960-02-45 2,000 24x36 29x60 24x35 15 Yes $12,549.78
2) BHTT-3036-5060-02-45 2,000 30x36 50x60 30x35 15 Yes Call for Quote
3) BHTT-5450-7272-02-45 2,000 54x50 72x72 54x49 15 Yes Call for Quote
4) BHTT-2436-2960-04-45 4,000 24x36 29x60 24x35 22 Yes Call for Quote
5) BHTT-3036-5060-04-45 4,000 30x36 50x60 30x35 22 Yes Call for Quote
6) BHTT-5450-7272-04-45 4,000 54x50 72x72 54x49 22 Yes Call for Quote
7) BHTT-2436-2960-06-45 6,000 24x36 29x60 24x35 30 Yes Call for Quote
8) BHTT-3036-5060-06-45 6,000 30x36 50x60 30x35 30 Yes Call for Quote
9) BHTT-5450-7272-06-45 6,000 54x50 72x72 54x49 30 Yes Call for Quote

Hydraulic Tilt Table - 45 Degree Tilt - BHTT Series (continued)
Model No. Capacity (LBS) Platform Std. (Inches) Platform Max. (Inches) Base Up Speeds Tilt Table Survey Sheet Required for Quote Price
10) BHTT-6078-8490-02-45 2,000 60x78 84x90 60x77 22 Yes Call for Quote
11) BHTT-9696-96102-02-45 2,000 96x96 96x102 96x95 22 Yes Call for Quote
12) BHTT-102108-120120-02-45 2,000 102x108 120x120 102x107 22 Yes Call for Quote
13) BHTT-6078-8490-04-45 4,000 60x78 84x90 60x77 30 Yes Call for Quote
14) BHTT-9696-96102-04-45 4,000 96x96 96x102 96x95 30 Yes Call for Quote
15) BHTT-102108-120120-04-45 4,000 102x108 120x120 102x107 30 Yes Call for Quote
16) BHTT-6078-8490-06-45 6,000 60x78 84x90 60x77 45 Yes Call for Quote
17) BHTT-9696-96102-06-45 6,000 96x96 96x102 96x95 45 Yes Call for Quote
18) BHTT-102108-120120-06-45 6,000 102x108 120x120 102x107 45 Yes Call for Quote
Hydraulic Tilt Table - 90 Degree Tilt - BHTT Series
Model No. Capacity (LBS) Platform Std. (Inches) Platform Max. (Inches) Base Up Speeds Tilt Table Survey Sheet Required for Quote Price
19) BHTT-2436-2960-02-90 2,000 24x36 29x60 24x35 30 Yes Call for Quote
20) BHTT-3036-5060-02-90 2,000 30x36 50x60 30x35 30 Yes Call for Quote
21) BHTT-5450-7272-02-90 2,000 54x50 72x72 54x49 30 Yes Call for Quote
22) BHTT-2436-2960-04-90 4,000 24x36 29x60 24x35 45 Yes Call for Quote
23) BHTT-3036-5060-04-90 4,000 30x36 50x60 30x35 45 Yes Call for Quote
24) BHTT-5450-7272-04-90 4,000 54x50 72x72 54x49 45 Yes Call for Quote
25) BHTT-2436-2960-06-90 6,000 24x36 29x60 24x35 60 Yes Call for Quote
26) BHTT-3036-5060-06-90 6,000 30x36 50x60 30x35 60 Yes Call for Quote
27) BHTT-5450-7272-06-90 6,000 54x50 72x72 54x49 60 Yes Call for Quote

28) BHTT-6078-8490-02-90 2,000 60x78 84x90 60x77 45 Yes Call for Quote
29) BHTT-9696-96102-02-90 2,000 96x96 96x102 96x95 45 Yes Call for Quote
30) BHTT-102108-120120-02-90 2,000 102x108 120x120 102x107 45 Yes Call for Quote
31) BHTT-6078-8490-04-90 4,000 60x78 84x90 60x77 55 Yes Call for Quote
32) BHTT-9696-96102-04-90 4,000 96x96 96x102 96x95 55 Yes Call for Quote
33) BHTT-102108-120120-04-90 4,000 102x108 120x120 102x107 55 Yes Call for Quote
34) BHTT-6078-8490-06-90 6,000 60x78 84x90 60x77 75 Yes Call for Quote
35) BHTT-9696-96102-06-90 6,000 96x96 96x102 96x95 75 Yes Call for Quote
36) BHTT-102108-120120-06-90 6,000 102x108 120x120 102x107 75 Yes Call for Quote
