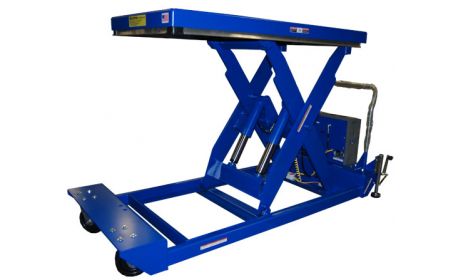

Portable Lift Table

Portable Lift Table - Mobile Lift Cart - BPST Series

Beacon® BPST Series

The hydraulic Portable Lift Table is designed to raise work materials to the appropriate ergonomic height for the worker. This Mobile Lift Cart unit is ideal for elevating and transporting heavy loads. These moveable models are perfect for warehouses, distribution centers, and many other industrial settings.
Starting at: $7,112.08
Portable Lift Table - BPST Series
Model No. Platform Width Platform Length Capacity (LBS) Raised Height Lowered Height Travel Time (Sec.) Std. Control Std. Power Note Price
1) BPST-1-46 24" to 48" 48" to 72" 1,000 46" 10" 9 Hand Control with Battery 12V DC A $7,112.08
2) BPST-2-46 24" to 48" 48" to 72" 2,000 46" 10" 14 Hand Control with Battery 12V DC A $7,576.61
3) BPST-3-46 24" to 48" 48" to 72" 3,000 46" 10" 20 Hand Control with Battery 12V DC A $9,527.05
4) BPST-4-47 24" to 48" 48" to 72" 4,000 47" 12" 28 Hand Control with Battery 12V DC   $11,164.09
5) BPST-5-47 36" to 48" 48" to 72" 5,000 47" 12" 31 Hand Control with Battery 12V DC   $11,541.80

6) BPST-1-58 24" to 48" 64" to 90" 1,000 58" 10" 14 Hand Control with Battery 12V DC A $9,540.95
7) BPST-2-58 24" to 48" 64" to 90" 2,000 58" 10" 20 Hand Control with Battery 12V DC A $10,097.82
8) BPST-3-58 24" to 48" 64" to 90" 3,000 58" 10" 28 Hand Control with Battery 12V DC A $11,067.56
9) BPST-4-60 36" to 48" 64" to 90" 4,000 60" 12" 38 Hand Control with Battery 12V DC   $12,329.67
10) BPST-5-60 36" to 48" 64" to 90" 5,000 60" 12" 38 Hand Control with Battery 12V DC   $12,613.63
Notes:
A: Minimum Frame Width is 34"
Portable Lift Table - OPTION - BPST Series
Model No. Description Note Price
11) BVCC-115-1 AC Motor (115V, 1 Phase, ¾ HP, 60 Hz Motor) With Hand Control   $118.33
12) BPST-AIR Reciprocating Air/Oil (Foot Treadle Control (FRL REQ'D), no charge when ordered with lift table   Call for Quote
13) BPST-FP Manual Foot Pump Option   Call for Quote

14) BPST-PTDS-E Power Traction Drive, 24V DC (1-3,000 lb. capacity)   Call for Quote
15) BPST-PTDS Power Traction Drive, 24V DC (4-5,000 lb. capacity)   Call for Quote
Notes:
A: Minimum Frame Width is 34"

WarningPROP 65 WARNING

For California Residents: www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.

  OPTIONS:
1) Portable Scissor Lift Table Options (3 items)

Product Details

  • Construction: Each Portable Lift Table unit features heavy duty steel construction.
  • Size: Models range from 24" to 48" in width and from 48" to 90" in actual lengths. Platform size should be specified when ordering.
  • Service Range: These units feature raised heights of 46" to 60" and a lowered height of 10" or 12".
  • Overall Width: The minimum frame width is 34".
  • Overall Length: To determine the overall length of the frame, add 25" to the platform length.
  • Electrical: Includes a 12V DC powered battery with an on-board charger and battery charge indicator gauge.
  • Powered: To raise and lower the unit, the deck is controlled by push buttons located on the power unit and with a pendant-style push button control on a 8' coil cord. For added security, a key-operated ON/OFF control is built into the power unit.
  • Weight: Models weigh from 1,408 lbs. to 2,000 lbs.
  • Capacities: This series has capacities of 1,000, 2,000, 3,000, 4,000 or 5,000 lbs.
  • Standard: Units come standard with a safety stop, 8" phenolic casters, hand push rail, electric toe guards, and on board battery charger for DC units.
  • Options: The BVCC-115-1 is an AC motor option with hand control. The BPST-AIR is a reciprocating air/oil foot treadle control. The BPST-FP is a manual foot pump option. Options with "PTDS" include power traction drive for easy pushing through the shop.
  • Limited Warranty: One-year structural, hydraulics, and electrical. A filter regulator - lubricator is required; warranty is void without.
  • Usage: Easy to use and cost effective, this unit serves as a powerful alternative to expensive fork trucks for transporting and lifting heavy loads. It rolls smoothly like a portable workstation, making it ideal for material handling in tight or dynamic work environments. To further reduce worker fatigue and minimize risk of injury, an optional Power Traction Drive System is available, providing effortless mobility and enhanced ergonomic performance. Portable lift table is the choice in industrial work environments.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.
  • BPST - 1 - Video
  • BPST - 2 - Video
