Overhead Drum Grabber

Overhead Drum Grabber - BDRUM-GRAB series

Beacon® BDRUM-GRAB Series

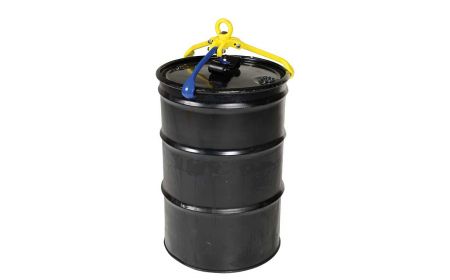

The Overhead Drum Grabber features a 3-arm design to center the drum under the unit. The big lifting ring allows for use with most overhead lifters. This unit is designed to lift closed or open-head 55-gallon steel drums with lid. This series can also work on plastic or fiber drums, but the top lip must be strong enough to support the drum's weight.
Starting at: $517.68

See chart below and click a model number

Product Details

  • Construction: This unit has 3 ductile iron arms for heavy duty lifting. The spring-loaded loop is constructed from polyurethane.
  • Size: Units feature a stationary arm length of 12-1/2" and a moveable arm length of 12-3/8". The eye inner diameter is 2-1/4". Overall size is 22-1/2" wide x 21" long x 12" high.
  • Color: Overhead Drum Grabber units are Beacon blue and yellow.
  • Weight: 20 lbs.
  • Operation: The spring-loaded loop helps to keep the drum secured to the unit for added security in rough and busy environments. After use, the unit must be manually disengaged.
  • Capacity: This Overhead Drum Grabber series has a lifting capacity for closed-head drums of 2,200 lbs. and 1,100 lbs. for open-head drums.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Documents



Overhead Drum Grabber - BDRUM-GRAB Series
Model No. Accommodates Capacity w/ Closed Head Drums (LBS.) Capacity with Open Head Drums (LBS) Stationary Arm Length Moveable Arm Length Eye Inner Diameter Price
1) BDRUM-GRAB 55 Gallon Drums 24" in Diameter 2,200 1,100 12½" 12⅜" 2¼" $517.68
