Homepage
Dock Equipment
Truck Restraints
Trailer Restraints
Trailer Restraints
Bear Claw
®
BMRV Series

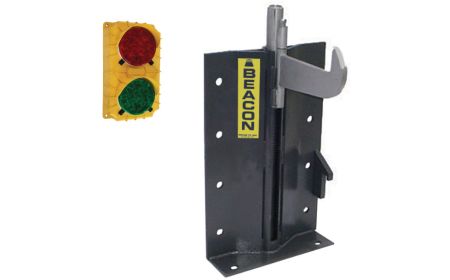

Trailer Restraints operate with a manual push rod while standing on the dock is the simplest type restraint with the lease amount of parts. The BMVR series will help prevent unscheduled truck departures and trailer creep by locking the trailer ICC bar to the dock. The unit is equipped with a vertical grabbing hook, keeping loading docks safer by reducing the chance for accidents.
Starting at:
$
3,475.27
See chart below and click a model number
Product Details
Construction:
Bear Claw
®
Trailer Restraints feature a heavy-duty steel construction frame.
Size:
The manual unit has some of the smallest body profiles in the industry, making equipment damage less inherent.
Electrical:
115 V AC, 1 Phase, 60 Hz is standard.
Installation:
Units are installed on the front face dock wall. There is no concrete or pit work required. Expansion head bolts are required for fast installation. Four-inch-thick dock bumpers are required.
Operation:
Manual push rod operation to activate or de-activate the hook while standing on top of the loading dock.
Capacities:
The mechanical hook provides a 50,000 lbs. draw pull capacity.
Standard:
A set of 3 loading dock driver warning signs. One right reading to be mounted on the inside dock wall and 2 to be mounted on the outside dock wall, one right reading and one reverse reading for the truck drive mirror viewing.
Options:
These Trailer Restraints have manual or automatic traffic signal dock lights.
Limited Warranty:
The standard Beacon warranty is inclusive as a one-year structural and parts limited warranty.
Usage:
A visual inspection of BMVR hook engagement is necessary & should show the ICC bar captured before operating the dock leveler. Visual hook inspection is necessary with the traffic signal light option to prevent a false read. Chocks are also recommended.
Note:
The customer may receive lower insurance premiums by installing a trailer restraint. Call your insurance broker and underwriter or call Beacon's office.
Documents
BMVR-Tech-Sheet
BMVR-Tech-Sheet-2
Electrical-Voltage-International
NEMA-Enclosure-Types
BMVR-Owners-Manual
Prop. 65 WARNING
Bear Claw® Trailer Restraint - BMRV Series
Model No.
Trailer Restraint Operation
Restraining Force (LBS)
Operating Range
Traffic Signal Dock Light
Voltage
Driver Warning Signs
Price
1)
BMVR105
Manual-Push Rod
50,000
12" to 30"

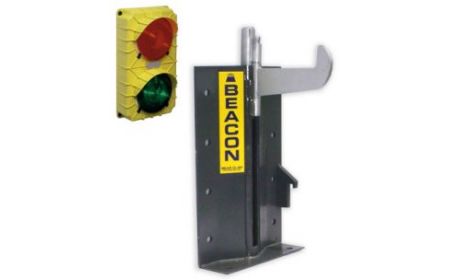

Automatic Operation-Change Red to Green and Back Again
115V AC / 1 Ph / 60 Hz
(1) Inside, (2) Outside,-One Reverse & One Right Reading.
$4,624.99
2)
BMVR103
Manual-Push Rod
50,000
12" to 30"
Manual Operation-Change Red to Green and Back Again
115V AC / 1 Ph / 60 Hz
(1) Inside, (2) Outside,-One Reverse & One Right Reading.
$4,381.55
3)

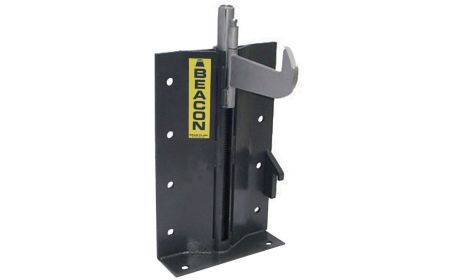

BMVR100
Manual-Push Rod
50,000
12" to 30"
None
None
(1) Inside, (2) Outside,-One Reverse & One Right Reading.
$3,475.27
Trailer Restraint - BMRV Series - OPTION
Model No.
Description
Projection
Price
4)
B1236
Block Out used with thick bumpers
2.00"
$1,127.02
5)
B3049
Block Out used with thick bumpers
5.00"
$1,578.74
6)
B3053
Block Out used with thick bumpers
6.00"
$1,220.98
7)
B2157
Block Out used with Edge of Dock Leveler
11.00"
$1,263.50
PROP 65 WARNING
For California Residents:
www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.
