LED Dock Lights

LED Dock Lights - BDL series

Beacon® LED Dock Lights – BDL series

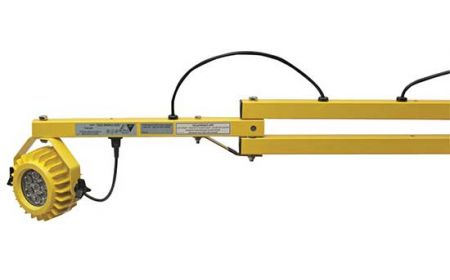

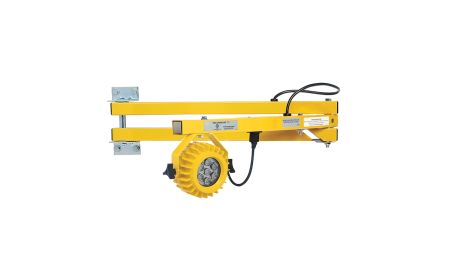

LED Dock Lights are mounted on a durable double strut arm, providing an excellent combination of illumination and structural strength at the dock door loading zone. The rugged design ensures long term reliability for continuous operation in demanding industrial environments.
Starting at: $329.12

See chart below and click a model number

Product Details

  • Models: The HLD2 series is IP66 rated. All units are rated UL and cUL listed.
  • Construction: LED Dock Lights are available with a heavy-duty cast aluminum head or a durable polycarbonate light head, offering strength and flexibility for a variety of loading dock environments.
  • Size: Sizes range from 24" to 114".
  • Electrical: UL and cUL listed.
  • Power: Fixed wattage design eliminates the risk of incandescent bulbs being improperly installed in LED fixtures, ensuring safe operation, consistent performance, and long term reliability at the loading dock.
  • Installation: Units mount to the wall.
  • Color: Feature a Beacon safety yellow finish.
  • Operation: LED dock light uses 94% less energy than standard incandescent heads. Life expectancy for LED is typically 100,000 hours compared to 2,000 hours in standard applications.
  • Standard: The double strut arm is constructed of steel, engineered to withstand the demands of busy warehouse and distribution operations while maintaining precise light positioning.
  • Options: Some units come standard with an adaptor cord and/or (On/Off) switch on the head.
  • Materials: The PL2 light head features a high impact polycarbonate housing, while the HDL2 model is built with a heavy duty steel light head for maximum durability. Both units are equipped with a safety bumper to protect the operator and minimize damage to the light assembly or surrounding equipment during dock operations.
  • Note: All light heads are made in the USA.
LED Dock Lights – BDL series
Model No. Arm Style Arm Length Lamp Head Style Lamp Head Watts Used Lumens Control Connection Price

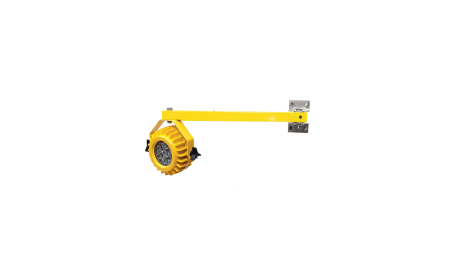

1) BDL24-HDLED Double Strut 24" Heavy Duty Cast Aluminum LED Module 17.7 W 915     $611.82
2) BDL40-HDLED Double Strut 40" Heavy Duty Cast Aluminum LED Module 17.7 W 915     $634.28
3) BDL60-HDLED Double Strut 60" Heavy Duty Cast Aluminum LED Module 17.7 W 915     $653.85
4) BDL90-HDLED Double Strut 90" Heavy Duty Cast Aluminum LED Module 17.7 W 915     $796.26
5) BDL24-HDL2 Double Strut 24" Heavy Duty Cast Aluminum LED Module 16.3 W 1669     Call for Quote
6) BDL40-HDL2 Double Strut 40" Heavy Duty Cast Aluminum LED Module 16.3 W 1669     Call for Quote
7) BDL60-HDL2 Double Strut 60" Heavy Duty Cast Aluminum LED Module 16.3 W 1669     Call for Quote
8) BDL90-HDL2 Double Strut 90" Heavy Duty Cast Aluminum LED Module 16.3 W 1669     Call for Quote
9) BDL114-HDL2 Double Strut 114" Heavy Duty Cast Aluminum LED Module 16.3 W 1669     Call for Quote
10) BDL24-HDL2-S Double Strut 24" Heavy Duty Cast Aluminum LED Module 16.3 W 1669 Includes (ON) (OFF) Switch on head   Call for Quote
11) BDL40-HDL2-S Double Strut 40" Heavy Duty Cast Aluminum LED Module 16.3 W 1669 Includes (ON) (OFF) Switch on head   Call for Quote
12) BDL60-HDL2-S Double Strut 60" Heavy Duty Cast Aluminum LED Module 16.3 W 1669 Includes (ON) (OFF) Switch on head   Call for Quote
13) BDL90-HDL2-S Double Strut 90" Heavy Duty Cast Aluminum LED Module 16.3 W 1669 Includes (ON) (OFF) Switch on head   Call for Quote
14) BDL114-HDL2-S Double Strut 114" Heavy Duty Cast Aluminum LED Module 16.3 W 1669 Includes (ON) (OFF) Switch on head   Call for Quote

15) BDL24-PL1 Double Strut 24" Polycarbonate LED Module 13.4 W 1331     $415.31
16) BDL40-PL1 Double Strut 40" Polycarbonate LED Module 13.4 W 1331     $428.62
17) BDL60-PL1 Double Strut 60" Polycarbonate LED Module 13.4 W 1331     $455.25
18) BDL90-PL1 Double Strut 90" Polycarbonate LED Module 13.4 W 1331     $595.02
19) BDL114-PL1 Double Strut 114" Polycarbonate LED Module 13.4 W 1331     $786.70
20) BDL24-PL2-DL2-ADPT Double Strut 24" Polycarbonate LED Module 13.4 W 1331   Adapter Cord for new Light Head to old arm. Call for Quote
21) BDL40-PL2-DL2-ADPT Double Strut 40" Polycarbonate LED Module 13.4 W 1331   Adapter Cord for new Light Head to old arm. Call for Quote
22) BDL60-PL2-DL2-ADPT Double Strut 60" Polycarbonate LED Module 13.4 W 1331   Adapter Cord for new Light Head to old arm. Call for Quote
23) BDL90-PL2-DL2-ADPT Double Strut 90" Polycarbonate LED Module 13.4 W 1331   Adapter Cord for new Light Head to old arm. Call for Quote
24) BDL114-PL2-DL2-ADPT Double Strut 114" Polycarbonate LED Module 13.4 W 1331   Adapter Cord for new Light Head to old arm. Call for Quote
25) BDL24-PL2-DL2-S-ADPT Double Strut 24" Polycarbonate LED Module 13.4 W 1331 Includes (ON) (OFF) Switch on head Adapter Cord for new Light Head to old arm. Call for Quote
26) BDL40-PL2-DL2-S-ADPT Double Strut 40" Polycarbonate LED Module 13.4 W 1331 Includes (ON) (OFF) Switch on head Adapter Cord for new Light Head to old arm. Call for Quote
27) BDL60-PL2-DL2-S-ADPT Double Strut 60" Polycarbonate LED Module 13.4 W 1331 Includes (ON) (OFF) Switch on head Adapter Cord for new Light Head to old arm. Call for Quote
28) BDL90-PL2-DL2-S-ADPT Double Strut 90" Polycarbonate LED Module 13.4 W 1331 Includes (ON) (OFF) Switch on head Adapter Cord for new Light Head to old arm. Call for Quote
29) BDL114-PL2-DL2-S-ADPT Double Strut 114" Polycarbonate LED Module 13.4 W 1331 Includes (ON) (OFF) Switch on head Adapter Cord for new Light Head to old arm. Call for Quote

30) BDL24-ML1 Double Strut 24" Metal LED Module 14 W 1330     $484.54
31) BDL40-ML1 Double Strut 40" Metal LED Module 14 W 1330     $499.18
32) BDL60-ML1 Double Strut 60" Metal LED Module 14 W 1330     $513.81
33) BDL90-ML1 Double Strut 90" Metal LED Module         $668.23
34) BDL114-ML1 Double Strut 114" Metal LED Module 14 W 1330     $855.92

LED Dock Lights – BDL series (continued)
Model No. Arm Style Arm Length Lamp Head Style Lamp Head Watts Used Lumens Control Connection Price
35) BDL24-PLED Double Strut 24" Polycarbonate PAR38 LED 15 W       $329.12
36) BDL40-PLED Double Strut 40" Polycarbonate PAR38 LED 15 W       $343.76
37) BDL60-PLED Double Strut 60" Polycarbonate PAR38 LED 15 W       $365.05
38) BDL90-PLED Double Strut 90" Polycarbonate PAR38 LED 15 W       $506.16
39) BDL114-PLED Double Strut 114" Polycarbonate PAR38 LED 15 W       $685.86
40) BDLHPS24-PFS Double Strut 24" Polycarbonate Food Service High Pressure Sodium 13.4 W 1331     $541.78
41) BDLHPS40-PFS Double Strut 40" Polycarbonate Food Service High Pressure Sodium 13.4 W 1331     $501.84
42) BDLHPS60-PFS Double Strut 60" Polycarbonate Food Service High Pressure Sodium 13.4 W 1331     $455.25
43) BDLHPS90-PFS Double Strut 90" Polycarbonate Food Service High Pressure Sodium 13.4 W 1331     $714.82
