Rubber Dock Bumper - Laminated Dock Bumpers - BDB-4.5 series

Beacon® BDB-4.5 Series

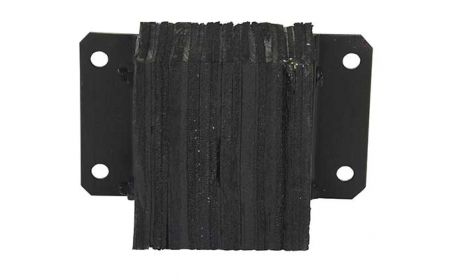

Rubber Dock Bumper - Laminated Dock Bumpers are installed at the loading dock area. Laminated models provide durable, economical protection against damage. The bumpers are designed to absorb shock between the loading dock and the truck.

In Stock

Starting at: $80.14

See chart below and click a model number

Product Details

  • Construction: Units are constructed of recycled rubber tires. Units are reinforced with fabric and adhered together with 3/4" steel tie rods. Units are laminated between their painted structural angles.
  • Projection: These models have a projection of 4.5".
  • Size: Rubber Dock Bumper models come in various sizes ranging from 10" x 12" to 12" x 96" to fit all loading dock applications. The width is measured from bolt hole center to bolt hole center. Bolt holes have a diameter of 13/16".
  • Installation: Installation hardware for bumpers is sold separately. Use 4"-long anchors for laminated bumpers.
  • Options: The Rubber Dock Bumper has optional safety OSHA signs to remind drivers to support trailers with jack stands.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred.
  • Note: Models are supplied with standard steel finish. Please contact Beacon for galvanized finish.

Documents


Options


Horizontal Laminated Rubber Dock Bumper - BDB-4.5 Series
Model No. High Width Projection Note Price
1) BDB1012-4.5 10" 12" 4.5" A $80.14
2) BDB1014-4.5 10" 14" 4.5" A $83.95
3) BDB1018-4.5 10" 18" 4.5" A $97.31
4) BDB1024-4.5 10" 24" 4.5" A $114.48
5) BDB1030-4.5 10" 30" 4.5" A $129.74
6) BDB1036-4.5 10" 36" 4.5" A $143.10
7) BDB1096-4.5 10" 96" 4.5" B $538.06

8) BDB1212-4.5 12" 12" 4.5" A $82.04
9) BDB1214-4.5 12" 14" 4.5" A $85.86
10) BDB1218-4.5 12" 18" 4.5" A $104.94
11) BDB1224-4.5 12" 24" 4.5" A $131.65
12) BDB1230-4.5 12" 30" 4.5" A $146.92
13) BDB1236-4.5 12" 36" 4.5" A $181.26
14) BDB1296-4.5 12" 96" 4.5" B $627.73
15) BDB624-4.5 6" 24" 4.5" A $97.31
16) BDB636-4.5 6" 36" 4.5" A $118.30
Notes:
A: Ship via UPS
B: Ship via Truck
Vertical Laminated Rubber Dock Bumper - BDBV-4.5 Series
Model No. High Width Projection Note Price
17) BDBV-1120-4.5 20" 11" 4.5" A $109.43
18) BDBV-1124-4.5 24" 11" 4.5" A $126.42
19) BDBV-1130-4.5 30" 11" 4.5" A $164.15
20) BDBV-1136-4.5 36" 11" 4.5" A $188.68
Notes:
A: Ship via UPS
B: Ship via Truck
Laminated Rubber Dock Bumper - Flat One Side - BDB-4.5F Series
Model No. High Width Projection Note Price
21) BDB1014-4.5F 10" 14" 4.5" A $114.48
22) BDB1214-4.5F 12" 14" 4.5" A $116.39
Notes:
A: Ship via UPS
B: Ship via Truck
