Gantry Hoist

Gantry Hoist - Overhead Gantry Crane - BFPG series

Bear Claw® BFPG Series

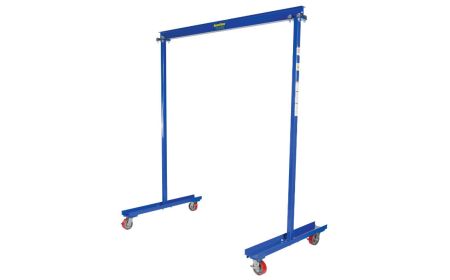

The Gantry Hoist - Overhead Gantry Crane is designed to maximize material handling requirements in light-duty lifting applications. The lightweight industrial design features easy mobility for shop floor applications.
Starting at: $1,378.72

See chart below and click a model number

Product Details

  • Construction: The series has an all welded steel construction.
  • Size: Fixed Height. This work area model has a square base design including a base width of 68" and a straddle width of 68".
  • Installation: Note: All cranes are shipped disassembled. All products should be inspected frequently to ensure safe operation. Final testing and inspecting is left to the end user after final assembly has been completed. For further details see ASME B30.17.
  • Color: The Gantry Hoist has a blue powder coat finish
  • Operation: The overhead gantry crane is not to be moved while loaded.
  • Capacity: This product supports up to 2,000 lbs.
  • Standard: Includes four polyurethane-on-steel wheel casters.
  • Options: Hoist with trolley for the Gantry Hoist sold separately.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents



Bear Claw® Gantry Hoist - BFPG Series
Model No. Under I-Beam to Ground Base Width Straddle Width (ID) I-Beam Flange (W x H) Capacity (LBS) Note Price
1) BFPG-3 90" 48" 68" 2.66"x4" 300 A $1,378.72
2) BFPG-6 90" 48" 68" 2.66"x4" 600 A $1,428.27
3) BFPG-10 90" 48" 68" 2.66"x4" 1,000 A $1,881.11
4) BFPG-20 90" 48" 68" 2.66"x4" 2,000 A $2,402.71
Notes:
A: * Hoist & Trolley sold separately*. *Assembly by others*.


Complementary Products: To learn about an additional portable industrial lifting device, please see Beacon portable jib cranes.
