Mezzanine Safety Gates

Mezzanine Safety Gates - BMEZZ series

Beacon® BMEZZ Series

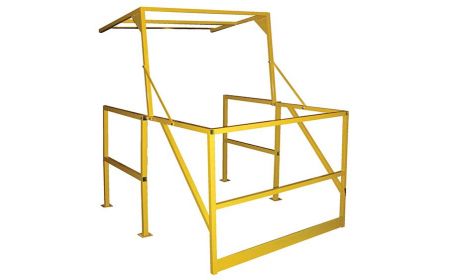

The Mezzanine Safety Gates provide essential fall protection from high platforms and mezzanines. These units feature a 4"-high kick plate, a 21" midrail, and a 42"-high handrail (all OSHA required) without sacrificing load accessibility. This series rotates to enable the loading and unloading of 48" high x 48" wide pallets. The design is balanced to enable operation without the use of springs.
Starting at: $1,087.41

See chart below and click a model number

Product Details

  • Construction: This unit is constructed from welded carbon steel or stainless steel.
  • Size: This single wide unit measures 80-1/16" in height x 68-1/2 wide (usable 56") x 79-5/16" deep. The double wide unit measures 80-1/16" in height x 108-1/2 wide (usable 96") x 79-5/16" deep.
  • Color: The carbon steel units feature a Beacon safety yellow powder coat finish.
  • Weight: The single wide units weigh 215 lbs. and the double wide units weigh 284 lbs.
  • Options: For custom Mezzanine Safety Gates sizes for special applications, contact Beacon. The stainless steel units are supplied with the stainless steel finish.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • BMEZZ - 200 - Video
  • BMEZZ - 200 - Video
  • BMEZZ - 200 - Video
  • BMEZZ - 200 - Video

Documents
Mezzanine Safety Gates - BMEZZ Series
Model No. Overall Height Overall Width Overall Depth Usable Width Handrail Height Mid-rail Height Finish Price
1) BMEZZ-200 80-1/16" 68½ 79-5/16 56" 42" 21" Powder Coated Yellow $1,087.41
2) BMEZZ-200-SS 80-1/16" 68½ 79-5/16 56" 42" 21" Stainless Steel $4,170.70
3) BMEZZ-200-DW 80-1/16" 108½ 79-5/16 96" 42" 21" Powder Coated Yellow $1,704.40
4) BMEZZ-200-DW-SS 80-1/16" 108½ 79-5/16 96" 42" 21" Stainless Steel $5,454.27
