Warehouse Guard Rails - Industrial Safety Structure - BYGR series by Beacon Industries

Beacon® BGR Series

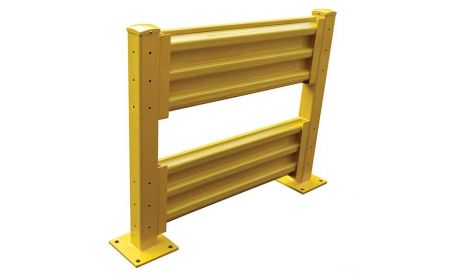

The Warehouse Guard Rails - Industrial Safety Structure are designed to protect buildings, equipment, and personnel from damages and injury both inside and out. These units are available as drop-in style for easy access or bolt-on style for permanent installation.
Starting at: $13.77

See chart below and click a model number

Product Details

  • Construction: Units are constructed from 1/8" thick corrugated double or triple-ridge steel. Posts are 1/4" thick, and steel base plate is 5/8" thick.
  • Size: Railings are either 10" or 15" high depending on the model with a range in length from 12" to 113-7/8". Posts are either 18" or 42" high. Base plates are 10" x 10".

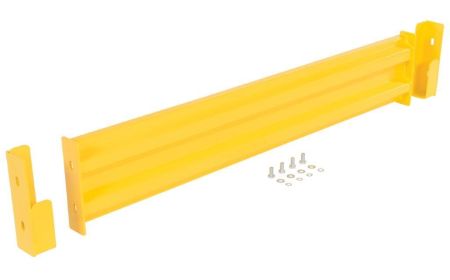

  • Installation: Bolt on or Drop in design available. For drop-in styles, simple slide railings into post saddles. These models include 2 brackets. Bolt-on styles are for installing permanently.
  • Color: Models feature either a Beacon yellow or a galvanized finish. Special colors available.
  • Operation: Single or double swing gates available.
  • Capacities: All models have an impact capacity of 10,000 lbs.
  • Standard: Individual posts come standard with anchors, bolts, washers, and nuts. Two mounting posts are required with each individual railing.
  • Options: For custom Warehouse Guard Rails sizes, please contact Beacon. Four concrete anchor bolts, 3/4" x 4", required for each post mount.

Documents
Warehouse Guard Rails - 2 Rib Drop-In Style - BGR Series
Model No. Finish Height Guard Length Rail Thickness Rail Ribs Rail Mounting Mounting Posts Required Price
1) BGR-F2R-DI-1-YL Yellow 10" 12" ⅛" 2 Drop In 2 $149.25
2) BGR-F2R-DI-2-YL Yellow 10" 24" ⅛" 2 Drop In 2 $168.67
3) BGR-F2R-DI-3-YL Yellow 10" 36" ⅛" 2 Drop In 2 $215.10
4) BGR-F2R-DI-5-YL Yellow 10" 60" ⅛" 2 Drop In 2 $291.24
5) BGR-F2R-DI-6-YL Yellow 10" 72" ⅛" 2 Drop In 2 $316.73
6) BGR-F2R-DI-7-YL Yellow 10" 84" ⅛" 2 Drop In 2 $330.12
7) BGR-F2R-DI-8-YL Yellow 10" 96" ⅛" 2 Drop In 2 $359.93
8) BGR-F2R-DI-9-YL Yellow 10" 108" ⅛" 2 Drop In 2 $382.31
9) BGR-F2R-DI-10-YL Yellow 10" 120" ⅛" 2 Drop In 2 $385.48
Warehouse Guard Post for Drop-In Guard Rail - BGR-FR2-TP Series
Model No. Finish Height Post Mount Type Accommodiates Rib Type Accommodiates Rail Level Price
10) BGR-F2R-DI-TP18-YL Yellow 18" Ridgid Tube Drop In Style 2 Rib Rail 1 Rail Level $177.59
11) BGR-F2R-DI-TP42-YL Yellow 42" Ridgid Tube Drop In Style 2 Rib Rail 2 Rail Level $243.47
12) BGR-F2R-DI-TP60-YL Yellow 60" Ridgid Tube Drop In Style 2 Rib Rail 3 Rail Level $331.87
13) BGR-F2R-DI-TP72-YL Yellow 72" Ridgid Tube Drop In Style 2 Rib Rail 4 Rail Level $377.38

Warehouse Guard Post for Drop-In Guard Rail - BGR-FR2-TP Series (continued)
Model No. Finish Height Post Mount Type Accommodiates Rib Type Accommodiates Rail Level Price
14) BGR-F2R-DI-TP18-HDG Galvanized 18" Ridgid Tube Drop In Style 2 Rib Rail 1 Rail Level $232.88
15) BGR-F2R-DI-TP42-HDG Galvanized 42" Ridgid Tube Drop In Style 2 Rib Rail 2 Rail Level $304.74
Warehouse Guard Rails - 3 Rib Drop-In Style - BGR Series
Model No. Finish Height Guard Length Rail Thickness Rail Ribs Rail Mounting Mounting Posts Required Price
16) BGR-F3R-DI-1-YL Yellow 15" 12" ⅛" 3 Drop In 2 $183.62
17) BGR-F3R-DI-2-YL Yellow 15" 24" ⅛" 3 Drop In 2 $200.05
18) BGR-F3R-DI-3-YL Yellow 15" 36" ⅛" 3 Drop In 2 $264.41
19) BGR-F3R-DI-4-OR Orange 15" 41⅞" ⅛" 3 Drop In 2 $294.28
20) BGR-F3R-DI-4-YL Yellow 15" 48" ⅛" 3 Drop In 2 $294.28
21) BGR-F3R-DI-5-YL Yellow 15" 60" ⅛" 3 Drop In 2 $330.09
22) BGR-F3R-DI-6-OR Orange 15" 65⅞" ⅛" 3 Drop In 2 $376.51
23) BGR-F3R-DI-6-YL Yellow 15" 72" ⅛" 3 Drop In 2 $376.51
24) BGR-F3R-DI-7-YL Yellow 15" 84" ⅛" 3 Drop In 2 $416.78
25) BGR-F3R-DI-8-OR Orange 15" 89⅞" ⅛" 3 Drop In 2 $433.15
26) BGR-F3R-DI-8-YL Yellow 15" 96" ⅛" 3 Drop In 2 $433.15
27) BGR-F3R-DI-9-YL Yellow 15" 108" ⅛" 3 Drop In 2 $451.04
28) BGR-F3R-DI-10-OR Orange 15" 113⅞" ⅛" 3 Drop In 2 $491.58
29) BGR-F3R-DI-10-YL Yellow 15" 120" ⅛" 3 Drop In 2 $491.58

30) BGR-F3R-DI-4-HDG Galvanized 15" 48" ⅛" 3 Drop In 2 $386.92
31) BGR-F3R-DI-6-HDG Galvanized 15" 72" ⅛" 3 Drop In 2 $482.60
32) BGR-F3R-DI-8-HDG Galvanized 15" 96" ⅛" 3 Drop In 2 $579.59
33) BGR-F3R-DI-10-HDG Galvanized 15" 120" ⅛" 3 Drop In 2 $657.44
Warehouse Guard Post for Drop-In Guard Rail - BGR-FR3-TP Series
Model No. Finish Height Post Mount Type Accommodiates Rib Type Accommodiates Rail Level Price
34) BGR-F3R-DI-TP18-OR Orange 18" Ridgid Tube Drop In Style 3 Rib Rail 1 Rail Level $177.59
35) BGR-F3R-DI-TP18-YL Yellow 18" Ridgid Tube Drop In Style 3 Rib Rail 1 Rail Level $177.59
36) BGR-F3R-DI-TP42-OR Orange 42" Ridgid Tube Drop In Style 3 Rib Rail 2 Rail Level $243.47
37) BGR-F3R-DI-TP42-YL Yellow 42" Ridgid Tube Drop In Style 3 Rib Rail 2 Rail Level $243.47
38) BGR-F3R-DI-TP60-YL Yellow 60" Ridgid Tube Drop In Style 3 Rib Rail 3 Rail Level $331.87
39) BGR-F3R-DI-TP72-YL Yellow 72" Ridgid Tube Drop In Style 3 Rib Rail 4 Rail Level $377.38

Warehouse Guard Post for Drop-In Guard Rail - BGR-FR3-TP Series (continued)
Model No. Finish Height Post Mount Type Accommodiates Rib Type Accommodiates Rail Level Price
40) BGR-F3R-DI-TP18-HDG Galvanized 18" Ridgid Tube Drop In Style 3 Rib Rail 1 Rail Level $250.97
41) BGR-F3R-DI-TP42-HDG Galvanized 42" Ridgid Tube Drop In Style 3 Rib Rail 2 Rail Level $312.21
Warehouse Guard Rail - Post Base Anchors
Model No. Description Sleeve Diameter Overall Length Sleeve Length Price
42) BAS-344 Concrete Anchor Bolt (single) 3/4" x 4" ¾" 4¼" 2" $13.77
43) BAS-344-4PK Concrete Anchor Bolt (4-Pack) 3/4" x 4" ¾" 4¼" 2" $27.57
