Browse 10 ProductsSafety Guard Rails
Beacon® BGR Series

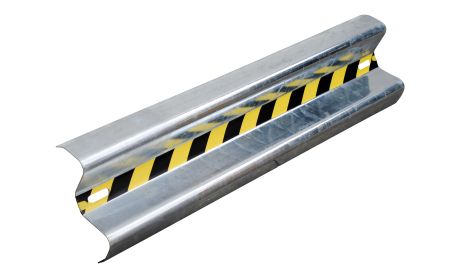

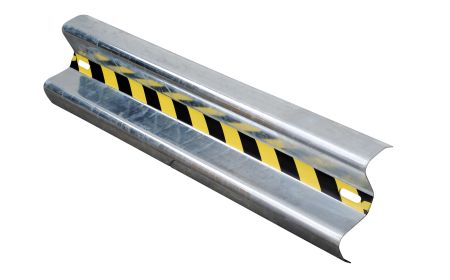

Safety Guard Rails - Galvanized Finish are designed for use in warehouses, parking garages, distribution facilities, and factories where protection is important. These one-two-or three-high railings protect both personnel and equipment visually as well as physically. Units can be used indoors or outdoors and are ideal for protecting building corners and machinery from fork truck and other vehicle damage. Tubular posts are suitable for continuous or perpendicular rail mounting.
Starting at:
$158.35
Product Details
- Size: Units are 12" high.
- Overall Length: Lengths are given as a single unit and range from 36" to 144". Deduct 5" for overlap when combining guard rail units. For custom sizes, contact Beacon.
- Installation: BGR series has 3/4" x 2-1/2" rail slotted holes for mounting. Posts and anchors sold separately.
- Color: Models feature a galvanized finish.
- Weight: Models weigh between 20 and 135 lbs.
- Operation: Units require either 2 or 3 mounting posts.
- Capacity: Units are rated to handle 4,000 lbs. crash force at 4 MPH.
- Standard: Rail mounting hardware is included standard. Floor mounting hardware is sold separately (BAS series).
- Options: For options such as mounting posts, end guards, brackets, and spring posts, click on a Safety Guard Rails model number in the chart and then click on "Options" on the next page. US Department of Transportation mounting and I-beam posts available.
- Post Height: 18", 24", 42", 60" and 72".
| Safety Guard Rails - BGR Series | ||||
| Model No. | Height | Length | Mounting Posts Required | Price |
| 1) BGR-H2R-BO-3-HDG | 12" | 36" | 2 | $158.35 |
| 2) BGR-H2R-BO-4-HDG | 12" | 48" | 2 | $192.65 |
| 3) BGR-H2R-BO-5-HDG | 12" | 60" | 2 | $235.87 |
| 4) BGR-H2R-BO-6-HDG | 12" | 72" | 2 | $264.34 |
| 5) BGR-H2R-BO-7-HDG | 12" | 84" | 2 | $316.61 |
| 6) BGR-H2R-BO-8-HDG | 12" | 96" | 2 | $345.13 |
| 7) BGR-H2R-BO-9-HDG | 12" | 108" | 3 | $380.95 |
| 8) BGR-H2R-BO-10-HDG | 12" | 120" | 3 | $418.21 |
| 9) BGR-H2R-BO-11-HDG | 12" | 132" | 3 | $469.16 |
| 10) BGR-H2R-BO-12-HDG | 12" | 144" | 3 | $503.41 |
| Safety Guard Rails with 2 Drop-In Brackets and Hardware - BGR-D Series | ||||
| Model No. | Height | Length | Mounting Posts Required | Price |
| 11) BGR-H2R-DI-3-HDG | 12-13/16" | 38¾" | 2 | $294.33 |
| 12) BGR-H2R-DI-4-HDG | 12-13/16" | 50¾" | 2 | $316.68 |
| 13) BGR-H2R-DI-6-HDG | 12-13/16" | 74¾" | 2 | $370.43 |
| 14) BGR-H2R-DI-7-HDG | 12-13/16" | 86¾" | 2 | $400.29 |
| 15) BGR-H2R-DI-8-HDG | 12-13/16" | 98¾" | 2 | $452.71 |
| 16) BGR-H2R-DI-9-HDG | 12-13/16" | 110¾" | 3 | $527.39 |
| 17) BGR-H2R-DI-10-HDG | 12-13/16" | 122¾" | 3 | $594.54 |
| 18) BGR-H2R-DI-11-HDG | 12-13/16" | 134¾" | 3 | $661.93 |
| 19) BGR-H2R-DI-12-HDG | 12-13/16" | 146¾" | 3 | $694.68 |
PROP 65 WARNING
For California Residents: www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.
|
OPTIONS: 1) Guard Rail Options (18 items) |
