Pipe Guard Rail
Pipe Guard Rail
Beacon
®
BHDGR series
The Pipe Guard Rail is one of the strongest guard rails in it class. This unit can stop a 12,000 lb. forklift traveling at 8 mph. These models are used in manufacturing facilities and distribution centers to protect machinery.
Call for custom quote for your application
See chart below and click a model number
Product Details
Construction:
The Pipe Guard Rails are manufactured with heavy duty sleeved steel pipe in durable HDPE plastic. The pipe post are 4" schedule 80 and the rail is 6" schedule 40.
Size:
Different models to choose from available with heights from 27”, 36”, and 42”.
Overall Length:
Available as lengths of 48”, 72”, 96”, 120”and 144”.
Installation:
Units are to be anchored to the concrete floor for stability.
Color:
These models are standard safety yellow for easy visibility.
Weight:
The different model selections have a weight range of 299 lbs. to 688lbs.
Standard:
Pipe Guard Rails ship and arrive fully assembled ready to install.
Surcharge:
Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
Usage:
Provides a pleasant appearance and a strong, protective barrier around capital equipment in machine shops and factories.
Documents
Prop. 65 WARNING
Pipe Guard Rail - BHDGR series
Model No.
Overall Length
Overall Height
Base Plate (W x L)
Price
1)
BHDGR-4-27
48"
27"
10"x10"
Call for Quote
2)
BHDGR-4-36
48"
36"
10"x10"
Call for Quote
3)
BHDGR-4-42
48"
42"
10"x10"
Call for Quote
4)
BHDGR-6-27
72"
27"
10"x10"
Call for Quote
5)
BHDGR-6-36
72"
36"
10"x10"
Call for Quote
6)
BHDGR-6-42
72"
42"
10"x10"
Call for Quote
7)
BHDGR-8-27
96"
27"
10"x10"
Call for Quote
8)
BHDGR-8-36
96"
36"
10"x10"
Call for Quote
9)
BHDGR-8-42
96"
42"
10"x10"
Call for Quote
10)
BHDGR-10-27
120"
27"
10"x10"
Call for Quote
11)
BHDGR-10-36
120"
36"
10"x10"
Call for Quote
12)
BHDGR-10-42
120"
42"
10"x10"
Call for Quote
Pipe Guard Rail - BHDGR series (continued)
Model No.
Overall Length
Overall Height
Base Plate (W x L)
Price
13)
BHDGR-12-27
144"
27"
10"x10"
Call for Quote
14)
BHDGR-12-36
144"
36"
10"x10"
Call for Quote
15)
BHDGR-12-42
144"
42"
10"x10"
Call for Quote
Pipe Guard Rail - BAS series - OPTION
Model No.
Description
Price
16)

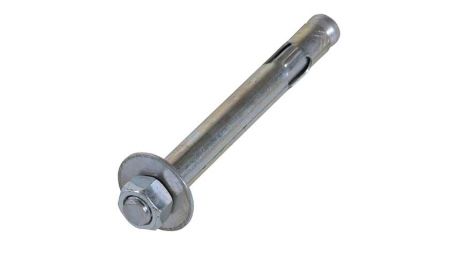

BAS-346
OPTION-Anchor Bolts for Concrete (1) ¾"x6"
$16.13
Model No.
Description
Price
17)
BAS-346-4PK
OPTION-Anchor Bolts for Concrete (4) ¾"x6"
$46.96
PROP 65 WARNING
For California Residents:
www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.
