Browse 28 ProductsIndustrial Safety Guard
Beacon® BGR-PC-YEL Series

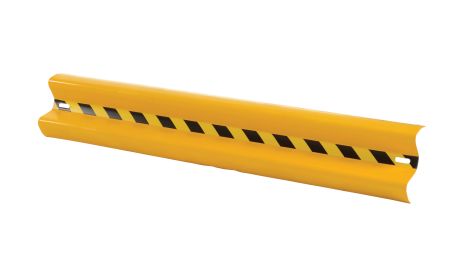

Industrial Safety Guard is designed for use in factories, parking garages, warehouses, machine shops, and distribution facilities where protection is important. These Powder Coat Finish units protect machines, equipment, and personnel. This series can be used indoors or outdoors and is ideal for protecting building corners and machinery from fork truck and other vehicle damage. The tubular posts are machined for continuous or perpendicular rail mounting. The 90-degree angle supports the straight safety railing.
Starting at:
$182.26
Product Details
- Size: The series is available in 36" to 146-3/4" lengths. The BO model rails are 12" high and the DI model rails are 12-13/16" high. Custom sizes are also available; Contact Beacon for details.
- Overall Length: Lengths are given as a single unit. Deduct 5" for overlap when combining units.
- Installation: Units that are 120" or 144" long require 3 mounting posts for installation. All other sizes require 2 mounting posts.
- Color: Units are powder coated Beacon safety yellow for visibility.
- Weight: Models weigh between 20 and 135 lbs.
- Standard: Rail mounting hardware is included with each unit. Models with -D include two drop-in brackets and hardware. Floor mounting hardware is not included with either series.
- Options: After selecting an Industrial Safety Guard model, click on "Options" on the next page to select options such as spring or tubular posts, end caps and guards, adjustable brackets, anchor bolts, and U.S. Department of Transportation mounting units.
| Industrial Safety Guard - BGR-PC-YEL Series | ||||||
| Model No. | Height | Length | Powder Coat | Mounting Posts Required | Price | |
| 1) BGR-H2R-BO-3-YL | 12" | 36" | Yellow | 2 | $182.26 | |
| 2) BGR-H2R-BO-4-YL | 12" | 48" | Yellow | 2 | $216.56 | |
| 3) BGR-H2R-BO-6-YL | 12" | 72" | Yellow | 2 | $283.77 | |
| 4) BGR-H2R-BO-8-YL | 12" | 96" | Yellow | 2 | $363.06 | |
| 5) BGR-H2R-BO-9-YL | 12" | 108" | Yellow | 3 | $401.87 | |
| 6) BGR-H2R-BO-10-YL | 12" | 120" | Yellow | 3 | $439.13 | |
| 7) BGR-H2R-BO-11-YL | 12" | 132" | Yellow | 3 | $485.60 | |
| 8) BGR-H2R-BO-12-YL | 12" | 144" | Yellow | 3 | $519.85 | |
| Industrial Safety Guard with 2 Drop-in Brackets and Hardware - BGR-PC-YEL Series | ||||||
| Model No. | Height | Length | Powder Coat | Mounting Posts Required | Price | |
| 9) BGR-H2R-DI-3-YL | 12-13/16" | 38¾" | Yellow | 2 | $315.25 | |
| 10) BGR-H2R-DI-4-YL | 12-13/16" | 50¾" | Yellow | 2 | $339.09 | |
| 11) BGR-H2R-DI-6-YL | 12-13/16" | 74¾" | Yellow | 2 | $386.87 | |
| 12) BGR-H2R-DI-8-YL | 12-13/16" | 98¾" | Yellow | 2 | $470.64 | |
| 13) BGR-H2R-DI-9-YL | 12-13/16" | 110¾" | Yellow | 3 | $542.33 | |
| 14) BGR-H2R-DI-10-YL | 12-13/16" | 122¾" | Yellow | 3 | $607.98 | |
| 15) BGR-H2R-DI-11-YL | 12-13/16" | 134¾" | Yellow | 3 | $675.38 | |
| 16) BGR-H2R-DI-12-YL | 12-13/16" | 146¾" | Yellow | 3 | $706.63 | |
| OPTION | ||||||
| Model No. | Description | Height | Use with Series | Guard Rail Levels | Price | |
| 17) BGR-H2R-SP | Spring Post | 24" | BGR | One | $147.76 | |
| Model No. | Description | Height | Base Plate | Guard Rail Levels | Use with Series | Price |
| 18) BGR-H2R-BO-TP18-YL | Tubular Post - Powder Coated Yellow | 18" | 10"x10" | One | BGR | $194.03 |
| 19) BGR-H2R-BO-TP42-YL | Tubular Post - Powder Coated Yellow | 42" | 10"x10" | Two | BGR | $264.39 |
| 20) BGR-H2R-BO-TP60-YL | Tubular Post - Powder Coated Yellow | 60" | 10"x10" | Three | BGR | $364.50 |
| 21) BGR-H2R-BO-TP72-YL | Tubular Post - Powder Coated Yellow | 72" | 10"x10" | Three | BGR | $414.28 |
| Model No. | Description | Size (W x H x D) | Use with Series | Price | ||
| 22) BGR-H2R-CAP | Yellow Plastic End Cap (Adds 3" to length - Includes Hardware) | 7"x13½"x4" | BGR | $64.15 | ||
| 23) BGR-H2R-CAP-BK | Black Plastic End Cap (Adds 3" to length - Includes Hardware) | 4"x7"x13½" | BGR | $69.75 | ||
| 24) BGR-H2R-CAP-GY | Grey Plastic End Cap (Adds 3" to length - Includes Hardware) | 7"x13½"x4" | BGR | $69.75 | ||
| Model No. | Description | Size (L x H x D) | Use with Series | Price | ||
| 25) BGR-H2R-BG | Buffer End Guard (Adds 11-7/8" to length) | 25-7/16"x16"x12½" | BGR | $207.50 | ||
| 26) BGR-H2R-BKT-CS-DI | Steel Center Support Bracket for 10 to 12 foot rail. | 5-7/16"x5½"x12¼" | BGR | $46.63 | ||
| 27) BGR-H2R-BKT-DI-BK | Black Drop in U Bracket | 12½"x5½"x5¼" | BGR | $68.68 | ||
| 28) BGR-STC8-DI-BKTCS-YL | Steel Center Support Bracket for 10 or 12 foot rail. | 4½"x12½"x5½" | BGR | $59.38 | ||
| 29) BGR-H2R-TG | Flared End Guard (Adds 16-1/8" to length) | 28⅝"x16⅛"x9⅝" | BGR | $196.24 | ||
| Model No. | Description | Use with Series | Price | |||
| 30) BGR-H2R-TP-ADJBKT | Adjustable Mounting Bracket (Adds 1-1/8" to projection) | BGR | $99.11 | |||
| Options | ||||||
| Model No. | Description | Size (W x L x H) | Material | Color | Price | |
| 31) BGR-H2R-S90C-CAP-BK | 90 Degree Corner Cap for BGR-H2R Models | 8.5"x8.5"x13" | Steel | Black | $106.24 | |
| 32) BGR-H2R-S90C-CAP-YL | 90 Degree Corner Cap for BGR-H2R Models | 8.5"x8.5"x13" | Steel | Yellow | $106.24 | |
