Galvanized Bollards

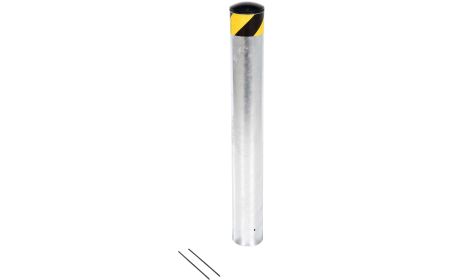

Galvanized Bollards - BBOLPP-HDG series

Beacon® BBOLPP-HDG series

Galvanized Bollards are designed as cast in place during the concrete pour installtion process. The units can be installed inside or outside along equipment, doorways, sidewalks, driveways and buildings. Utilized in parks, schools, commercial office space, stores, industrial settings, factories, airports, warehouses and distribution centers.
Starting at: $202.98

See chart below and click a model number

Product Details

  • Construction: Units feature steel construction with a galvanized steel coating.
  • Size: Overall heights range from 35" to 82" with a usable height of 25" to 72". The outside diameter ranges from 4-1/2" to 6-5/8".
  • Installation: The units can be filled with concrete for extra stability and strength. Each bolllard are supplied with rod anchors to be utilized during the concrete pour installation.
  • Color: Hot dipped Galvanized Steel coating for a long lasting finish for harsh enviroments.
  • Weight: Units weigh from 22 to 69 lbs. depening on the model selected.
  • Standard: All units come standard with a removable cap except the 6-5/8" unit which will have an open top.
  • Note: Galvanized bollards are one of the strongest and most rugged bollards offered by Beacon because they are cast in place, being set during the concrete pour. Furthermore they can be filled with concrete. The finish features a long lasting galvanized coating for extreme environments.

Galvanized Bollards - BBOLPP-HDG series
Model No. Install Process Usable Height Overall Height Outside Diameter Price
1) BBOLPP-24-4.5-HDG Cast In Place Concrete 25" 35" 4½" $202.98
2) BBOLPP-36-4.5-HDG Cast In Place Concrete 36½" 46½" 4½" $255.78
3) BBOLPP-42-4.5-HDG Cast In Place Concrete 42½" 52½" 4½" $290.20
4) BBOLPP-48-4.5-HDG Cast In Place Concrete 48½" 58½" 4½" $397.44
5) BBOLPP-62-4.5-HDG Cast In Place Concrete 62" 72" 4½" $460.23
6) BBOLPP-72-4.5-HDG Cast In Place Concrete 72" 82" 4½" $541.75

7) BBOLPP-24-5.5-HDG Cast In Place Concrete 25" 35" 5-9/16" $228.71
8) BBOLPP-36-5.5-HDG Cast In Place Concrete 36½" 46½" 5-9/16" $291.49
9) BBOLPP-42-5.5-HDG Cast In Place Concrete 42½" 52½" 5-9/16" $364.59
10) BBOLPP-48-5.5-HDG Cast In Place Concrete 48½" 58½" 5-9/16" $417.35
11) BBOLPP-62-5.5-HDG Cast In Place Concrete 62" 72" 5-9/16" $490.30
12) BBOLPP-72-5.5-HDG Cast In Place Concrete 72" 82" 5-9/16" $589.04

13) BBOLPP-24-6.5-HDG Cast In Place Concrete 25" 35" 6⅝" $251.50
14) BBOLPP-36-6.5-HDG Cast In Place Concrete 36½" 46½" 6⅝" $394.53
15) BBOLPP-42-6.5-HDG Cast In Place Concrete 42½" 52½" 6⅝" $477.50
16) BBOLPP-48-6.5-HDG Cast In Place Concrete 48½" 58½" 6⅝" $476.12
17) BBOLPP-62-6.5-HDG Cast In Place Concrete 62" 72" 6⅝" $544.66
18) BBOLPP-72-6.5-HDG Cast In Place Concrete 72" 82" 6⅝" $639.07
