Column Guards

Name: Column Guards
Brand: Beacon
Price: 700.85 USD
Availability: InStock

Column Guards - Security Bollards - BCGP series by Beacon Industries

Beacon® BCGP Series

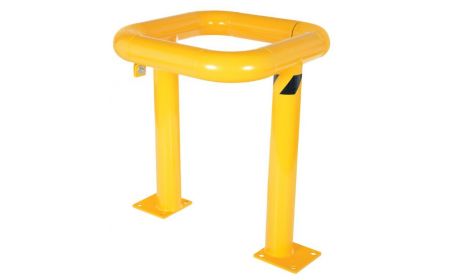

These shielding Column Guards feature a two-piece design for protecting in-plant columns and other vertical supports. These Security Bollards are available at a variety of heights to fit any application.

Starting at: $700.85

See chart below and click a model number

Product Details

Construction: Column Guards feature a heavy-duty welded steel construction.
Size: Units are available in 24", 36", and 48" heights. Models have an inside width of 20" and an inside length of 20".
Service Range: This series can service columns and vertical supports with measurements up to 19" x 19".
Color: Units are powder coated Beacon yellow.
Weight: Models weigh from 132 to 168 lbs.
Standard: Each base plate includes 4 pre-drilled mounting holes standard. Hardware is included to connect the 2 pieces of this product together.
Options: Concrete mounting kits are available each or per four Column Guards.
Note: Some assembly is required. Concrete anchor bolts are not included.

Documents

Options

Column Guards - BCGP Series
Model No.	Height			Inside Width	Inside Length	Price
1) BCGP-24	24"			20"	20"	$700.85
2) BCGP-36	36"			20"	20"	$716.47
3) BCGP-48	48"			20"	20"	$727.78
OPTION
Model No.	Description	Sleeve Diameter	Overall Length	Sleeve Length	For Use With	Price
4) BAS-344	Concrete Anchor Bolts Installation Hardware (Single)	¾"	4¼"	2"	BCGP series	$13.77
5) BAS-344-4PK	Concrete Anchor Bolts Installation Hardware (4-Pack)	¾"	4¼"	2"	BCGP series	$27.57
