Hydraulic Box Dumpers

Hydraulic Box Dumpers - Container Dumper - BHBD series

Beacon® BHBD Series

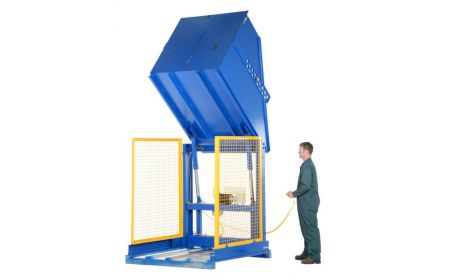

Beacon® Hydraulic Box Dumpers - Container Dumper are built to last with a durable heavy duty steel design. Push button control enables one person for dump industrial-use containers up to 135 degrees. Designed and available with several different dump heights. The special lowered height of only 3/8" enables a pallet truck to load or unload. The retaining bars are designed to adjust every 2" to accommodate many container heights.
Starting at: $10,493.86

See chart below and click a model number

Product Details

  • Construction: Features heavy-duty welded steel construction. Contact Beacon regarding additional hold-down bar heights
  • Projection: Chute reach projection is 10" when fully rotated.
  • Size: The models are available in different sizes ranging from 69" wide x 68-1/2" long to 69" wide x 69" long. The chute on all units is 51-1/2" x 50". Special size units are available.
  • Service Range: The unit's maximum rotation is 135 degrees.
  • Dump Heights: Unit dump heights are 36", 48" and 60".
  • Lift Heights: Level heights on the unit are 53-1/2", 65" and 77". Rotated heights are 111", 129-1/2" and 149-1/2".
  • Electrical: The unit is powered by an internal 2 Hp motor (5 Hp motor on 6,000 lb. models). 460V AC, 3 Phase, 60 Hz is standard. Other electrical options are available.
  • Color: This series has a painted blue finish.
  • Weight: Varying weights among models range from 1,564 to 2,021 lbs.
  • Operation: The worker controls the rotation up and down simply with a hand-held push button control console.
  • Capacities: Models features capacities of 2,000, 4,000 or 6,000 lbs.
  • Standard: The units come standard with a 24v pendant hand-held control on an 8' cord. Its structural frame includes protective mesh side screens.
  • Options: A foot control is optional. Other options for Hydraulic Box Dumpers include different Beacon finishes, a 4-button control for a rotary air/oil power unit.
  • Note: All standard and special box dumper chutes are stitch welded. Special continuous welds for liquid tight available at additional charge.

Hydraulic Box Dumpers Questions and Answers

  • BHBD-2-48360° View
  • BHBD-4-36360° View
  • BHBD-6-60360° View

Documents



Hydraulic Box Dumpers - BHBD Series
Model No. Dump Height Hold Downs Level Height Usable Chute (W x L) Rotated Height Capacity (LBS) Overall (W x L) Price
1) BHBD-2-36 36" 18"-36" 53½" 52"x50" 111" 2,000 69"x68½" $10,493.86
2) BHBD-2-48 48" 18"-42" 65" 52"x50" 129½" 2,000 69"x68½" $11,617.49
3) BHBD-2-60 60" 18"-50" 77" 52"x50" 149½" 2,000 69"x68½" $12,532.52

4) BHBD-4-36 36" 18"-36" 53½" 52"x50" 111" 4,000 69"x68½" $12,848.73
5) BHBD-4-48 48" 18"-42" 65" 52"x50" 129½" 4,000 69"x68½" $12,994.20
6) BHBD-4-60 60" 18"-50" 77" 52"x50" 149½" 4,000 69"x68½" $13,864.52

7) BHBD-6-36 36" 18"-36" 53½" 52"x50" 111" 6,000 69"x69" $14,656.52
8) BHBD-6-48 48" 18"-42" 65" 52"x50" 129½" 6,000 69"x69" $13,594.59
9) BHBD-6-60 60" 18"-50" 77" 52"x50" 149½" 6,000 69"x69" $14,568.39
OPTION
Model No. Description Price
10) BFC-2 Foot Control $312.29
11) BHBD-6-ROTARY-DA-HHPB DA - 4-button control for rotary air/oil power unit (BHBD-6) (warranty void if used W/O Filter - Regulator - Lubricator (FRL)) (call BEACON for db rating) $1,054.07
12) BHBD-GATE-36 Steel Hydraulic box dumper gate 25-1/2" x 92". Yellow $3,751.70
13) BHBD-Gate-48 Steel Hydraulic box dumper gate 33-1/4" x 92". Yellow $4,010.30
14) BHBD-GATE-60 Steel Hydraulic box dumper gate 41-1/2" x 92". Yellow $4,111.19
15) BHBD-PU-X Extended duty power for 6,000 lbs capacity hydraulic box dumper. $8,568.62
