Aluminum Yard Ramp
Aluminum Yard Ramp
Beacon
®
BAY Series

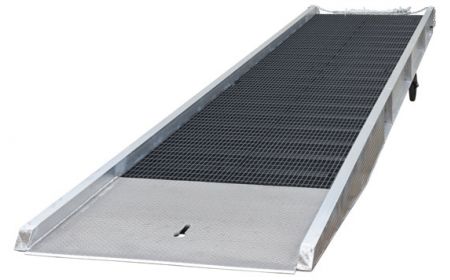

The Aluminum Yard Ramp - Semi Truck Ramps with aluminum grating allow workers to efficiently load and unload trucks, trailers, and other vehicles when no dock is available. One worker is able to position and then employ the unit from ground level. These movable units feature 18" x 5" mold-on-rubber tires for easy portability.
Starting at:
$
22,383.13
See chart below and click a model number
Product Details
Construction:
These units are constructed of heavy-duty aluminum and feature rust-resistant aluminum grating and 4" high curbs.
Size:
These models are available in a variety of sizes, with overall widths of 47", 86", or 95", usable widths of 66", 78", or 87" and lengths of 30' or 36'.
Service Range:
This series has a service height range of 45" to 62".
Weight:
Models come in a variety of weights ranging from 2,783 to 4,200 lbs.
Operation:
Features a hand pump hydraulic lift.
Capacity:
Available with capacities of 16,000, 20,000, 25,000, or 30,000 lbs.
Standard:
A fork tow bar loop, anchor chains, hand pump hydraulic lift, and safety pressure relief valve are standard.
Options:
Aluminum Yard Ramp options can be viewed on the main Yard Ramps page and include a 12V DC hydraulic lift, fork positioning loop, tow bar hitch, hand railings, 6" curbs (in place of 4" curbs), yellow safety curbs, pneumatic tires, and lag holes.
Surcharge:
Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
Note:
Testing, adjustments, training and scheduled maintenance procedures by others.
Documents
BAY-Tech-Sheet
Yard-Ramp-Applications
Prop. 65 WARNING
Options
Aluminum Yard Ramp with Aluminum Grating - BAY Series
Model No.
Capacity (LBS)
Overall Width
Usable Width
Length
Price
1)
BAY-167230
16,000
74"
66"
30'
$22,383.13
2)
BAY-167236-L
16,000
74"
66"
36'
$26,875.33
3)
BAY-168430
16,000
86"
78"
30'
$24,386.28
4)
BAY-168436-L
16,000
86"
78"
36'
$29,453.31
5)
BAY-169330
16,000
95"
87"
30'
$27,345.20
6)
BAY-169336-L
16,000
95"
87"
36'
$39,019.49
7)
BAY-207230
20,000
74"
66"
30'
$24,112.96
8)
BAY-207236-L
20,000
74"
66"
36'
$28,134.17
9)
BAY-208430
20,000
86"
78"
30'
$27,350.60
10)
BAY-208436-L
20,000
86"
78"
36'
$31,973.50
11)
BAY-209330
20,000
95"
87"
30'
$32,917.17
12)
BAY-209336-L
20,000
95"
87"
36'
$39,478.46
13)
BAY-257230
25,000
74"
66"
30'
$25,591.06
14)
BAY-257236-L
25,000
74"
66"
36'
$28,963.36
15)
BAY-258430
25,000
86"
78"
30'
$28,337.31
16)
BAY-258436-L
25,000
86"
78"
36'
$32,748.85
17)
BAY-259330
25,000
95"
87"
30'
$35,025.36
18)
BAY-259336-L
25,000
95"
87"
36'
$42,022.86
Aluminum Yard Ramp with Aluminum Grating - BAY Series (continued)
Model No.
Capacity (LBS)
Overall Width
Usable Width
Length
Price
19)
BAY-307230
30,000
74"
66"
30'
$27,905.18
20)
BAY-307236-L
30,000
74"
66"
36'
$32,848.51
21)
BAY-308430
30,000
86"
78"
30'
$32,105.32
22)
BAY-308436-L
30,000
86"
78"
36'
$37,540.01
PROP 65 WARNING
For California Residents:
www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.
