Browse 10 ProductsSteel Wheel Risers with Roll Off Guard
Beacon® BSWR-ROG series

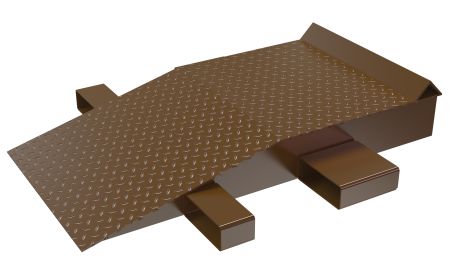

Steel Wheel Risers with Roll Off Guard
Starting at:
$849.90
Product Details
- Models: Features a special roll off guard top angle edge welded at the end of the wheel riser preventing truck movement.
- Construction: Units are constructed of heavy-duty welded steel for long life. Safety treadplate provides positive traction in dock applications.
- Size: Models are available in 9", 11", 13", and 15" heights.
- Overall Width: Models have two available overall widths: 32-1/2" or 38-1/2".
- Overall Length: The overall different model length ranges from 48", 60", 72", 84", 96" and 108".
- Color: Units feature a neutral, earth-tone brown.
- Weight: Models weigh from 185 to 524 lbs.
- Capacities: This series has a maximum capacity of 20,000 lbs. each wheel riser and 40,000 lbs. uniform load per pair.
- Standard: This series assists in loading docks meeting OSHA/ANSI B56.1 part 3 sec 7 requirements.
- Note: Steel Wheel Risers with Roll Off Guard are priced and sold each.
| Steel Wheel Risers with Roll Off Guard - BSWR-ROG series | |||||||
| Model No. | Width | Height | Overall Length | Level Length | Uniform Capacity Each (LBS) | Uniform Capacity Pair (LBS) | Price |
| 1) BSWR-ROG-18-6-48 | 32½" | 9" | 48" | 24" | 20,000 | 40,000 | $849.90 |
| 2) BSWR-ROG-18-6-60 | 32½" | 9" | 60" | 36" | 20,000 | 40,000 | $974.59 |
| 3) BSWR-ROG-18-6-72 | 32½" | 9" | 72" | 48" | 20,000 | 40,000 | $1,091.05 |
| 4) BSWR-ROG-18-6-84 | 32½" | 9" | 84" | 60" | 20,000 | 40,000 | $1,179.82 |
| 5) BSWR-ROG-18-8-60 | 32½" | 11" | 60" | 20,000 | 40,000 | $1,027.43 | |
| 6) BSWR-ROG-18-8-72 | 32½" | 11" | 72" | 20,000 | 40,000 | $1,121.64 | |
| 7) BSWR-ROG-18-8-84 | 32½" | 11" | 84" | 20,000 | 40,000 | $1,239.45 | |
| 8) BSWR-ROG-18-8-96 | 32½" | 11" | 96" | 20,000 | 40,000 | $1,387.78 | |
| 9) BSWR-ROG-18-10-60 | 32½" | 13" | 60" | 20,000 | 40,000 | $1,064.82 | |
| 10) BSWR-ROG-18-10-72 | 32½" | 13" | 72" | 20,000 | 40,000 | $1,178.45 | |
| 11) BSWR-ROG-18-10-84 | 32½" | 13" | 84" | 20,000 | 40,000 | $1,295.02 | |
| 12) BSWR-ROG-18-10-96 | 32½" | 13" | 96" | 20,000 | 40,000 | $1,468.26 | |
Steel Wheel Risers with Roll Off Guard - BSWR-ROG series (continued) |
|||||||
| Model No. | Width | Height | Overall Length | Level Length | Uniform Capacity Each (LBS) | Uniform Capacity Pair (LBS) | Price |
| 13) BSWR-ROG-18-12-72 | 32½" | 15" | 72" | 20,000 | 40,000 | $1,207.69 | |
| 14) BSWR-ROG-18-12-84 | 32½" | 15" | 84" | 20,000 | 40,000 | $1,335.11 | |
| 15) BSWR-ROG-18-12-96 | 32½" | 15" | 96" | 20,000 | 40,000 | $1,565.29 | |
| 16) BSWR-ROG-18-12-108 | 32½" | 15" | 108" | 20,000 | 40,000 | $1,724.79 | |
| 17) BSWR-ROG-24-6-48 | 38½" | 9" | 48" | 24" | 20,000 | 40,000 | $902.51 |
| 18) BSWR-ROG-24-6-60 | 38½" | 9" | 60" | 36" | 20,000 | 40,000 | $1,077.35 |
| 19) BSWR-ROG-24-6-72 | 38½" | 9" | 72" | 48" | 20,000 | 40,000 | $1,186.82 |
| 20) BSWR-ROG-24-6-84 | 38½" | 9" | 84" | 60" | 20,000 | 40,000 | $1,325.37 |
| 21) BSWR-ROG-24-8-60 | 38½" | 11" | 60" | 28" | 20,000 | 40,000 | $1,114.77 |
| 22) BSWR-ROG-24-8-72 | 38½" | 11" | 72" | 40" | 20,000 | 40,000 | $1,236.69 |
| 23) BSWR-ROG-24-8-84 | 38½" | 11" | 84" | 52" | 20,000 | 40,000 | $1,400.41 |
| 24) BSWR-ROG-24-8-96 | 38½" | 11" | 96" | 64" | 20,000 | 40,000 | $1,533.50 |
Steel Wheel Risers with Roll Off Guard - BSWR-ROG series (continued) |
|||||||
| Model No. | Width | Height | Overall Length | Level Length | Uniform Capacity Each (LBS) | Uniform Capacity Pair (LBS) | Price |
| 25) BSWR-ROG-24-10-60 | 38½" | 13" | 60" | 20" | 20,000 | 40,000 | $1,143.85 |
| 26) BSWR-ROG-24-10-72 | 38½" | 13" | 72" | 32" | 20,000 | 40,000 | $1,318.44 |
| 27) BSWR-ROG-24-10-84 | 38½" | 13" | 84" | 44" | 20,000 | 40,000 | $1,436.40 |
| 28) BSWR-ROG-24-10-96 | 38½" | 13" | 96" | 56" | 20,000 | 40,000 | $1,656.82 |
| 29) BSWR-ROG-24-12-72 | 38½" | 15" | 72" | 36" | 20,000 | 40,000 | $1,371.24 |
| 30) BSWR-ROG-24-12-84 | 38½" | 15" | 84" | 48" | 20,000 | 40,000 | $1,522.39 |
| 31) BSWR-ROG-24-12-96 | 38½" | 15" | 96" | 60" | 20,000 | 40,000 | $1,763.54 |
| 32) BSWR-ROG-24-12-108 | 38½" | 15" | 108" | 24" | 20,000 | 40,000 | $1,895.26 |
