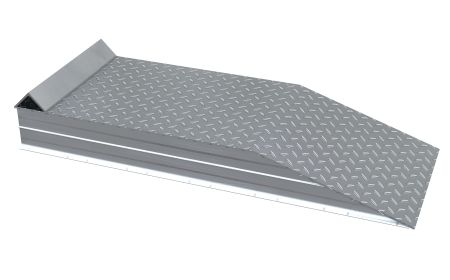

Browse 10 ProductsAluminum Wheel Risers with Roll Off Stop
Beacon® BATWR-ROG series
The Aluminum Wheel Risers with Roll Off Stop is designed to elevate semi-trailers during the loading and unloading process to meet the proper dock height. Features an aluminum back angle plate welded roll off stop.
Starting at:
$907.90
Product Details
- Construction: Units feature heavy-duty welded aluminum construction.
- Size: Model heights are 18" or 24" wide,
- Overall Width: These unit are designed to accommodate trailer sizes. Sizes available are an overall widths of 18" or 24"
- Overall Length: The overall lengths range from 48" to 120".
- Color: The units are silver in color.
- Weight: Units weigh from 43 to 272 lbs. depending on the model. Lightweight aluminum to be moved out of the way for different truck access with a different height requirements if necessary.
- Capacities: The uniform capacities for these units are 15,000 lbs. each and 30,000 lbs. per pair. For each dock location.
- Standard: Aluminum Wheel Risers with Roll Off Stop models are compliant with OSHA/ANSI B56.1 part 3 sec 7.
- Note: Units are priced and sold each.
| Aluminum Wheel Risers with Roll Off Guard - BATWR-ROG series | |||||||
| Model No. | Width | Height | Overall Length | Level Length | Uniform Capacity Each (LBS) | Uniform Capacity Pair (LBS) | Price |
| 1) BATWR-ROG-18-6-48 | 18" | 6" | 48" | 30" | 15,000 | 30,000 | $907.90 |
| 2) BATWR-ROG-18-6-54 | 18" | 6" | 54" | 36" | 15,000 | 30,000 | $992.71 |
| 3) BATWR-ROG-18-6-60 | 18" | 6" | 60" | 42" | 15,000 | 30,000 | $1,083.58 |
| 4) BATWR-ROG-18-6-102 | 18" | 6" | 102" | 84" | 15,000 | 30,000 | $1,614.16 |
| 5) BATWR-ROG-18-8-54 | 18" | 8" | 54" | 30" | 15,000 | 30,000 | $1,029.17 |
| 6) BATWR-ROG-18-8-60 | 18" | 8" | 60" | 36" | 15,000 | 30,000 | $1,138.20 |
| 7) BATWR-ROG-18-8-66 | 18" | 8" | 66" | 42" | 15,000 | 30,000 | $1,244.39 |
| 8) BATWR-ROG-18-8-108 | 18" | 8" | 108" | 84" | 15,000 | 30,000 | $1,900.69 |
| 9) BATWR-ROG-18-10-60 | 18" | 10" | 60" | 30" | 15,000 | 30,000 | $1,226.08 |
| 10) BATWR-ROG-18-10-66 | 18" | 10" | 66" | 36" | 15,000 | 30,000 | $1,456.52 |
| 11) BATWR-ROG-18-10-72 | 18" | 10" | 72" | 42" | 15,000 | 30,000 | $1,553.57 |
| 12) BATWR-ROG-18-10-114 | 18" | 10" | 114" | 84" | 15,000 | 30,000 | $2,156.94 |
Aluminum Wheel Risers with Roll Off Guard - BATWR-ROG series (continued) |
|||||||
| Model No. | Width | Height | Overall Length | Level Length | Uniform Capacity Each (LBS) | Uniform Capacity Pair (LBS) | Price |
| 13) BATWR-ROG-18-12-66 | 18" | 12" | 66" | 30" | 15,000 | 30,000 | $1,433.86 |
| 14) BATWR-ROG-18-12-72 | 18" | 12" | 72" | 36" | 15,000 | 30,000 | $1,529.24 |
| 15) BATWR-ROG-18-12-78 | 18" | 12" | 78" | 42" | 15,000 | 30,000 | $1,621.78 |
| 16) BATWR-ROG-18-12-120 | 18" | 12" | 120" | 84" | 15,000 | 30,000 | $2,467.53 |
| 17) BATWR-ROG-24-6-48 | 24" | 6" | 48" | 30" | 15,000 | 30,000 | $1,045.77 |
| 18) BATWR-ROG-24-6-54 | 24" | 6" | 54" | 36" | 15,000 | 30,000 | $1,138.20 |
| 19) BATWR-ROG-24-6-60 | 24" | 6" | 60" | 42" | 15,000 | 30,000 | $1,279.25 |
| 20) BATWR-ROG-24-6-102 | 24" | 6" | 102" | 84" | 15,000 | 30,000 | $1,849.07 |
| 21) BATWR-ROG-24-8-54 | 24" | 8" | 54" | 30" | 15,000 | 30,000 | $1,245.94 |
| 22) BATWR-ROG-24-8-60 | 24" | 8" | 60" | 36" | 15,000 | 30,000 | $1,403.47 |
| 23) BATWR-ROG-24-8-66 | 24" | 8" | 66" | 42" | 15,000 | 30,000 | $1,555.01 |
| 24) BATWR-ROG-24-8-108 | 24" | 8" | 108" | 84" | 15,000 | 30,000 | $2,188.63 |
Aluminum Wheel Risers with Roll Off Guard - BATWR-ROG series (continued) |
|||||||
| Model No. | Width | Height | Overall Length | Level Length | Uniform Capacity Each (LBS) | Uniform Capacity Pair (LBS) | Price |
| 25) BATWR-ROG-24-10-60 | 24" | 10" | 60" | 30" | 15,000 | 30,000 | $1,424.64 |
| 26) BATWR-ROG-24-10-66 | 24" | 10" | 66" | 36" | 15,000 | 30,000 | $1,553.61 |
| 27) BATWR-ROG-24-10-72 | 24" | 10" | 72" | 42" | 15,000 | 30,000 | $1,667.21 |
| 28) BATWR-ROG-24-10-114 | 24" | 10" | 114" | 84" | 15,000 | 30,000 | $2,476.78 |
| 29) BATWR-ROG-24-12-66 | 24" | 12" | 66" | 30" | 15,000 | 30,000 | $1,630.95 |
| 30) BATWR-ROG-24-12-72 | 24" | 12" | 72" | 36" | 15,000 | 30,000 | $1,796.02 |
| 31) BATWR-ROG-24-12-78 | 24" | 12" | 78" | 42" | 15,000 | 30,000 | $1,876.44 |
| 32) BATWR-ROG-24-12-120 | 24" | 12" | 120" | 84" | 15,000 | 30,000 | $2,743.53 |
