Drum Racker

Name: Drum Racker
Brand: Beacon

Drum Racker - Drum Stacker - BHDC series

Beacon® Lift

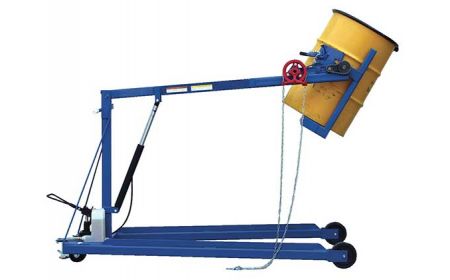

The Drum Racker - Drum Stacker are perfect for positioning 55-gallon steel drums horizontally on shelves. Drums are held in place with a ratchet mechanism. These units may easily rotate 360 degrees with a pull chain or hand crank rotation method.

Call for custom quote for your application

See chart below and click a model number

Product Details

Construction: Feature solid steel construction.
Lift Heights: This series has various lift heights from 60" to 96".
Powered: Optional power units available for lifting and rotating. Models ending in -AC or -DC come standard with either AC or DC lifting power units and a pull chain for rotation.
Weight: Drum Racker units weigh from 604 to 834 lbs.
Operation: Rotation methods are operated by a hand crank, pull chain, AC power, DC power or air/oil-operated power unit.
Capacity: These models have a maximum capacity of 800 lbs.
Standard: The Drum Racker comes standard with a hydraulic foot pump. Units roll on two 8" x 2" glass-filled-nylon casters and two 5" x 2" swiveling polyurethane casters.
Note: When using these models, the drum does not need to be strapped in.

Documents

OPTION - Lift
Model No.	Description	Note	Price
1) BHDC-DC	12V DC power unit	A	$1,227.68
2) BHDC-AC	115V AC power unit	A	$1,227.53
3) BHDC-AIR	Air/Oil operated power unit	A	$865.42
Notes: A: Drum Must be Full to Rotate at Rated Capacity
OPTION - Rotation
Model No.	Description	Note	Price
4) BHDC-R-DC	24V DC power	A	$3,109.60
5) BHDC-R-HC	Hand Crank (instead of pull chain)	A	$207.15
Notes: A: Drum Must be Full to Rotate at Rated Capacity
