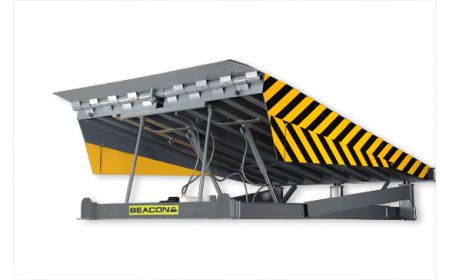

Hydraulic Loading Dock Ramp
Hydraulic Loading Dock Ramp
Beacon
®
BEH5 Series
This model of Hydraulic Loading Dock Ramp is designed with nominal lengths up to 12' to create less grade angle. This Hydraulic Loading Dock Ramp series is ideal for either low docks for standard over the road trucks or to compensate for refrigerated trucks or containers on shipping service. The unit creates a safe working environment and reduces impact on substructure during the loading and unloading process.
Starting at:
$
25,034.56
See chart below and click a model number
Product Details
Construction:
Heavy duty steel construction.
Service Range:
Service range is 12" above dock and 12" below dock for a total of 24" vertical travel working range.
Overall Width:
Designed with overall widths up 97" wide to allow for wide loads on flatbeds.
Overall Length:
Available with lengths up to 12' nominal for extra long smooth transitions from dock to truck service.
Powered:
The Hydraulic Loading Dock Ramp deck is raised with hydraulic dual lift cylinders with a one lip cylinder. Driven by a hydraulic motor pump reservoir self contained unit for easy access mounted to the sub frame.
Color:
Beacon Industrial Grey.
Operation:
Wall mounted push button control station box.
Capacities:
The BEH5 series is rated up to 60,000 lbs. static / 30,000 lbs. dynamic capacity. Published ratings are static, dynamic roll over is 50% of static.
Standard:
Full Range safety toe guards.
Options:
Painted safety yellow and black strips on entire side of the Long Dock Leveler safety toe guards.
Limited Warranty:
Five-year structural and cylinders and one year pump and motor. Extended warranties available.
Surcharge:
Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
Note:
Testing, adjustments, training and scheduled maintenance procedures by others.
Documents
BEH5-Tech-Sheet
BEH5-Tech-Sheet-2
BEH5-Tech-Sheet-3
Electrical-Voltage-International
NEMA-Enclosure-Types
Wheel-Chocks-OSHA
BSJS-1012-OSHA
BEH5-Installation
BEH5-Drawing-1
Prop. 65 WARNING
Options
Hydraulic Loading Dock Ramp - BEH5 Series
Model No.
Capacity
Width
Height
Length
Price
1)
BEH561120
20,000
72"
23½"
11'
$30,717.42
2)
BEH561220
20,000
72"
23½"
12'
$31,412.79
3)
BEH561120.5
20,000
78"
23½"
11'
$31,043.18
4)
BEH561220.5
20,000
78"
23½"
12'
$31,738.55
5)
BEH571120
20,000
83"
23½"
11'
$25,034.56
6)
BEH571220
20,000
83"
23½"
12'
$32,108.16
7)
BEH581120
20,000
96"
23½"
11'
$33,498.90
8)
BEH581220
20,000
96"
23½"
12'
$35,121.44
9)
BEH561130
30,000
72"
23½"
11'
$33,384.05
10)
BEH561230
30,000
72"
23½"
12'
$33,962.48
11)
BEH561130.5
30,000
78"
23½"
11'
$33,707.72
12)
BEH561230.5
30,000
78"
23½"
12'
$34,288.24
13)
BEH571130
30,000
83"
23½"
11'
$34,079.42
14)
BEH571230
30,000
83"
23½"
12'
$34,657.86
15)
BEH581130
30,000
96"
23½"
11'
$35,933.75
16)
BEH581230
30,000
96"
23½"
12'
$37,671.13
Hydraulic Loading Dock Ramp - BEH5 Series (continued)
Model No.
Capacity
Width
Height
Length
Price
17)
BEH561140
40,000
72"
23½"
11'
$36,048.60
18)
BEH561240
40,000
72"
23½"
12'
$36,814.97
19)
BEH561140.5
40,000
78"
23½"
11'
$36,668.79
20)
BEH561240.5
40,000
78"
23½"
12'
$36,837.94
21)
BEH571140
40,000
83"
23½"
11'
$36,743.97
22)
BEH571240
40,000
83"
23½"
12'
$36,743.97
23)
BEH561150
50,000
72"
23½"
11'
$38,715.23
24)
BEH561250
50,000
72"
23½"
12'
$36,743.97
25)
BEH561150.5
50,000
78"
23½"
11'
$39,038.90
26)
BEH561250.5
50,000
78"
23½"
12'
$39,387.63
27)
BEH571150
50,000
83"
23½"
11'
$41,728.50
28)
BEH571250
50,000
83"
23½"
12'
$42,075.14
29)
BEH561160
60,000
72"
23½"
11'
$38,947.02
30)
BEH561260
60,000
72"
23½"
12'
$39,293.66
31)
BEH561160.5
60,000
78"
23½"
11'
$39,270.69
32)
BEH561260.5
60,000
78"
23½"
12'
$44,255.22
33)
BEH571160
60,000
83"
23½"
11'
$44,278.19
34)
BEH571260
60,000
83"
23½"
12'
$44,624.83
PROP 65 WARNING
For California Residents:
www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.
