Air Bag Dock Levelers

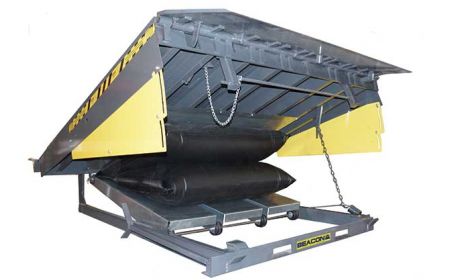

Air Bag Dock Levelers - BXA series

Beacon® BXA Series

The Air Bag Dock Levelers are an asset to the loading dock area of your building. The benefits of the BXA series utilize a rotary switch operation at the low cost of mechanical unit. Manufactured to be durable with minimal moving parts.
Starting at: $8,886.19

See chart below and click a model number

Product Details

  • Construction: These models have a sold steel construction utilizing air bag control.
  • Size: Air Bag Levelers are available in 72", 78", or 83" wide. Industry standard length is available as 6' or 8' .
  • Electrical: Air Bag Levelers standard operation is internal air powered by an internal 0.8 electric motor.
  • Color: Finish - Enamel base gray paint.
  • Operation: The pneumatic operated design provides an efficient operation during the activation of the leveler.
  • Capacities: Air Bag Dock Levelers - BXA Series are available as 30,000, 35,000, 40,000 or 45,000 lb. capacity.

Documents
Air Bag Dock Levelers - BXA Series
Model No. Capacity (LBS) Width Length Height Voltage Controls Price
1) BXA6630 30,000 6' 6' 19" 115 Vac, 1 Ph, 60 Hz. Selector Switch $8,886.19
2) BXA6630.5 30,000 6' 6" 6' 19" 115 Vac, 1 Ph, 60 Hz. Selector Switch $9,058.93
3) BXA7630 30,000 7' 6' 19" 115 Vac, 1 Ph, 60 Hz. Selector Switch $9,201.39
4) BXA6830 30,000 6' 8' 19" 115 Vac, 1 Ph, 60 Hz. Selector Switch $9,051.81
5) BXA6830.5 30,000 6' 6" 8' 19" 115 Vac, 1 Ph, 60 Hz. Selector Switch $9,723.17
6) BXA7830 30,000 7' 8' 19" 115 Vac, 1 Ph, 60 Hz. Selector Switch $9,842.48

Air Bag Dock Levelers - BXA Series (continued)
Model No. Capacity (LBS) Width Length Height Voltage Controls Price
7) BXA6635 35,000 6' 6' 19" 115 Vac, 1 Ph, 60 Hz. Selector Switch $9,539.75
8) BXA6635.5 35,000 6' 6" 6' 19" 115 Vac, 1 Ph, 60 Hz. Selector Switch $9,678.65
9) BXA7635 35,000 7' 6' 19" 115 Vac, 1 Ph, 60 Hz. Selector Switch $9,833.58
10) BXA6835 35,000 6' 8' 19" 115 Vac, 1 Ph, 60 Hz. Selector Switch $9,758.78
11) BXA6835.5 35,000 6' 6" 8' 19" 115 Vac, 1 Ph, 60 Hz. Selector Switch $10,282.34
12) BXA7835 35,000 7' 8' 19" 115 Vac, 1 Ph, 60 Hz. Selector Switch $10,526.31

13) BXA6640 40,000 6' 6' 19" 115 Vac, 1 Ph, 60 Hz. Selector Switch $9,771.25
14) BXA6640.5 40,000 6' 6" 6' 19" 115 Vac, 1 Ph, 60 Hz. Selector Switch $9,822.89
15) BXA7640 40,000 7' 6' 19" 115 Vac, 1 Ph, 60 Hz. Selector Switch $9,940.43
16) BXA6840 40,000 6' 8' 19" 115 Vac, 1 Ph, 60 Hz. Selector Switch $9,885.22
17) BXA6840.5 40,000 6' 6" 8' 19" 115 Vac, 1 Ph, 60 Hz. Selector Switch $10,519.19
18) BXA7840 40,000 7' 8' 19" 115 Vac, 1 Ph, 60 Hz. Selector Switch $10,650.96

19) BXA6645 45,000 6' 6' 19" 115 Vac, 1 Ph, 60 Hz. Selector Switch $9,919.06
20) BXA6645.5 45,000 6' 6" 6' 19" 115 Vac, 1 Ph, 60 Hz. Selector Switch $11,781.77
21) BXA7645 45,000 7' 6' 19" 115 Vac, 1 Ph, 60 Hz. Selector Switch $10,075.77
22) BXA6845 45,000 6' 8' 19" 115 Vac, 1 Ph, 60 Hz. Selector Switch $10,000.97
23) BXA6845.5 45,000 6' 6" 8' 19" 115 Vac, 1 Ph, 60 Hz. Selector Switch $10,000.97
24) BXA7845 45,000 7' 8' 19" 115 Vac, 1 Ph, 60 Hz. Selector Switch $10,807.68

WarningPROP 65 WARNING

For California Residents: www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.

  OPTIONS:
1) Air Bag Dock Levelers Accessories (2 items)
