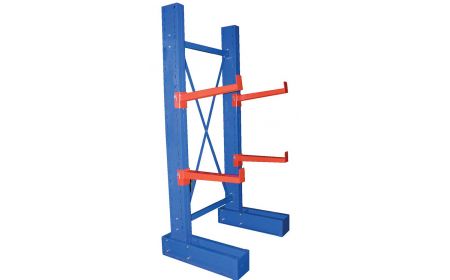

Steel Storage Rack

Steel Storage Rack - BMU series by Beacon Industries

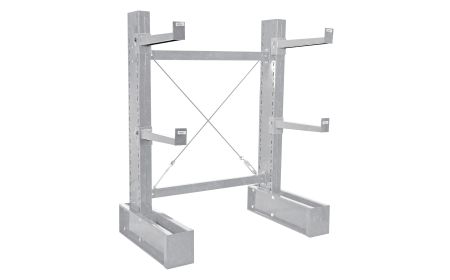

Beacon® Single-Sided – Galvanized Set – BMU Series

TSteel Storage Rack is our medium duty unit with double and single sided units are available. This unit features the flexibility to custom-fit individual applications. The individual components are sold separately to accommodate each customer's specific requirements. Arms, brace sets and two uprights must be chosen in order to complete an entire unit. These units allow you to store long, unwieldy items off the floor. Arms are adjustable and there is 3-1/2" between slots.
Starting at: $58.53

See chart below and click a model number

Product Details

  • Construction: Features steel construction.
  • Size: Available with heights of 72", 96", and 120" and with arm lengths of 12", 18", 24", 30", and 36". Contact Beacon for special sizes.
  • Color: Uprights and braces are powder coated Beacon blue. Arms are powder coated Beacon red.
  • Weight: This series comes in various weights ranging from 11 lbs. to 19 lbs. for arms, 26 lbs. to 68 lbs. for brace sets, and 130 lbs. to 230 lbs. for uprights.
  • Operation: To adjust arms, align with pre-drilled holes and secure with included key lock.
  • Capacities: Single base frame features 5,000 lbs. to 8,100 lbs. capacities and double base frame features 7,600 lbs. to 16,200 lbs. capacities.
  • Options: All Steel Storage Rack arms come with lips to secure items and are available either straight or with a 10 degree incline. Uprights are sold each and not in pairs.
  • Note: Uprights and arms are priced and sold each. Pairs must be purchased to complete a unit.

Documents
Steel Storage Rack - Single-Sided – Galvanized Set – BMU Series
Model No. Uniform Capacity Per Upright Uniform Level Capacity Contents Price
1) BMU-C-6-24-G-SET 11,000 lbs. 1,200 lbs. (2) BMU-C-6-24-G 6' High Single Sided Uprights, (1) BMB-C-6-48-G Brace Set, (4) BMAS-C-24 24" Arms Call for Quote
2) BMU-C-8-24-G-SET 10,600 lbs. 1,200 lbs. (2) BMU-C-8-24-G 8' High Single Sided Uprights, (1) BMB-C-8-48-G Brace Set, (4) BMAS-C-24 24" Arms Call for Quote
Steel Storage Rack - Double-Sided – Galvanized Set – BMU Series
Model No. Uniform Capacity Per Upright Uniform Level Capacity Contents Price
3) BMDU-C-6-24-G-SET 22,000 lbs. 2,400 lbs. (2) BMDU-C-6-24-G 6' High Double Sided Uprights, (1) BMB-C-6-48-G Brace Set, (8) BMSA-C-24 24" Arms Call for Quote
4) BMDU-C-6-36-G-SET 16,400 lbs. 1,600 lbs. (2) BMDU-C-6-36-G 6' High Double Sided Uprights, (1) BMB-C-6-48-G Brace Set, (8) BMSA-C-36 36" Arms $3,106.38
Steel Storage Rack - Single-Sided - Uprights - BMU Series
Model No. Height Base Arms to Use Capacity (LBS) Price
5) BMU-C-6-12 72" 25⅜" 12" 8,100 $660.39
6) BMU-C-6-24 72" 37" 24" 5,500 Call for Quote

Steel Storage Rack - Single-Sided - Uprights - BMU Series (continued)
Model No. Height Base Arms to Use Capacity (LBS) Price
7) BMU-C-10-12 120" 25⅜" 12" 7,100 $968.13
8) BMU-C-10-24 120" 37" 24" 5,000 Call for Quote
Steel Storage Rack - Double-Sided - Uprights - BMU Series
Model No. Height Base Arms to Use Capacity (LBS) Price
9) BMDU-C-6-12 72" 34" 12" 16,200 $738.05
10) BMDU-C-6-18 72" 46" 18" 13,200 $757.37
11) BMDU-C-6-24 72" 58" 24" 11,000 $898.06
12) BMDU-C-6-36 72" 82" 30" or 36" 9,400 or 8,200 $929.30

13) BMDU-C-10-12 120" 34" 12" 14,200 $902.37
14) BMDU-C-10-18 120" 46" 18" 11,800 $1,030.97
15) BMDU-C-10-24 120" 58" 24" 10,000 $1,177.35
16) BMDU-C-10-36 120" 82" 30" or 36" 8,800 or 7,600 $1,219.28
Steel Storage Rack - Brace Sets for 6' Uprights - BMU Series
Model No. Length Number of Braces Price
17) BMB-C-6-36 36" 2 $219.11
Steel Storage Rack - Brace Sets for 8' Uprights - BMU Series
Model No. Length Number of Braces Price
18) BMB-C-8-36 36" 2 $231.12
Steel Storage Rack - Brace Sets for 10' Uprights - BMU Series
Model No. Length Number of Braces Price
19) BMB-C-10-36 36" 2 $158.68
Steel Storage Rack - Straight Arms - BMU Series
Model No. Length Capacity (LBS) Price
20) BMSA-C-12 12" 1,000 $59.29
21) BMSA-C-30 30" 500 $79.86
22) BMSA-C-36 36" 400 $90.32
Steel Storage Rack - 10 degree Inclined Arms - BMU Series
Model No. Length Capacity (LBS) Price
23) BMIA-C-12 12" 1,000 $58.53
24) BMIA-C-18 18" 750 $63.47
25) BMIA-C-24 24" 600 $68.08
26) BMIA-C-30 30" 500 $85.69
27) BMIA-C-36 36" 400 $99.96
