Cantilever Racks

Beacon® BSAC Series

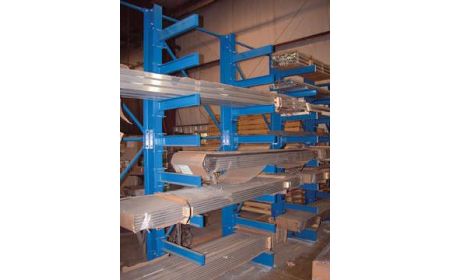

The Cantilever Racks have excellent flexibility to custom-fit individual applications. The bolt-together construction with welded steel components offers an ideal combination of strength and durability. These units feature a powder coat finish. Single- and double-sided uprights are available. Individual components are sold separately; uprights, arms, and braces must all be selected in order to complete one unit.
Starting at: $56.10

Product Details

  • Size: Units are available with column heights of 96", 120",or 144" and come with arm lengths of 12", 24", 36", or 48".
  • Weight: Units come in a variety of weights ranging from 220 to 369 lbs.
  • Capacity: Models are available with a variety of capacities ranging from 7,600 to 26,500 lbs.
  • Options: Arms are available with or without lips in order to custom fit a variety of applications. Capacities range from 1,000 to 3,000 lbs. Braces have a range of Cantilever Racks options as well.
  • Surcharge: Tariffs or surcharges may apply to current published pricing.

Documents



Single-Sided Cantilever Racks - BSAC Series
Model# Column Height Arm Length Capacity per Side Note Price
1) BSAC-812 96" 12" 18,000 A $591.29
2) BSAC-824 96" 24" 12,000 A $615.44
3) BSAC-836 96" 36" 9,200 A $652.88
4) BSAC-848 96" 48" 7,600 A $709.09

5) BSAC-1012 120" 12" 26,500 A $763.81
6) BSAC-1024 120" 24" 16,600 A $789.34
7) BSAC-1036 120" 36" 12,250 A $852.19
8) BSAC-1048 120" 48" 9,500 A $882.98

9) BSAC-1212 144" 12" 26,000 A $869.48
10) BSAC-1224 144" 24" 16,500 A $897.52
11) BSAC-1236 144" 36" 12,250 A $959.11
12) BSAC-1248 144" 48" 9,500 A $991.17
Notes:
A: Uprights Only - Order Separate Brace Sets & Arms Below
B: Braces Only - Order Separate Uprights Above & Arms Below
C: Arms Only - Order Separate Uprights and Brace Sets Above
Double-Sided Cantilever Racks - BDAC Series
Model# Column Height Arm Length Capacity per Side Note Price
13) BDAC-812 96" 12" 18,000 A $643.49
14) BDAC-824 96" 24" 12,000 A $721.11
15) BDAC-836 96" 36" 9,200 A $771.94

16) BDAC-1012 120" 12" 26,500 A $840.17
17) BDAC-1024 120" 24" 16,600 A $933.70
18) BDAC-1036 120" 36" 12,250 A $972.51

19) BDAC-1212 144" 12" 26,000 A $949.73
20) BDAC-1224 144" 24" 16,500 A $1,028.60
21) BDAC-1236 144" 36" 12,250 A $1,078.17
Notes:
A: Uprights Only - Order Separate Brace Sets & Arms Below
B: Braces Only - Order Separate Uprights Above & Arms Below
C: Arms Only - Order Separate Uprights and Brace Sets Above
Cantilever Racks Horizontal Brace Set - BHBS Series
Model# Column Height Column Centers Braces Per Set Note Price
22) BHBS-83 96" 36" 3 B $111.05
23) BHBS-84 96" 48" 3 B $119.06
24) BHBS-85 96" 60" 3 B $133.71
25) BHBS-86 96" 72" 3 B $215.34

26) BHBS-10123 120" or 144" 36" 5 B $167.26
27) BHBS-10124 120" or 144" 48" 5 B $191.30
28) BHBS-10125 120" or 144" 60" 5 B $232.85
29) BHBS-10126 120" or 144" 72" 5 B $349.16
Notes:
A: Uprights Only - Order Separate Brace Sets & Arms Below
B: Braces Only - Order Separate Uprights Above & Arms Below
C: Arms Only - Order Separate Uprights and Brace Sets Above
Cantilever Racks Straight Arm with Lips - BSSAL Series
Model# Arm Length Capacity (LBS) Note Price
30) BSSAL-12 12" 3,000 C $57.47
31) BSSAL-24 24" 2,000 C $72.12
32) BSSAL-36 36" 1,200 C $80.25
33) BSSAL-48 48" 1,000 C $92.04
Notes:
A: Uprights Only - Order Separate Brace Sets & Arms Below
B: Braces Only - Order Separate Uprights Above & Arms Below
C: Arms Only - Order Separate Uprights and Brace Sets Above
Cantilever Racks Straight Arm with No Lips - BSSAL-NL Series
Model# Arm Length Capacity (LBS) Note Price
34) BSSAL-12-NL 12" 3,000 C $56.10
35) BSSAL-24-NL 24" 2,000 C $70.86
36) BSSAL-36-NL 36" 1,200 C $78.88
37) BSSAL-48-NL 48" 1,000 C $88.26
Notes:
A: Uprights Only - Order Separate Brace Sets & Arms Below
B: Braces Only - Order Separate Uprights Above & Arms Below
C: Arms Only - Order Separate Uprights and Brace Sets Above
