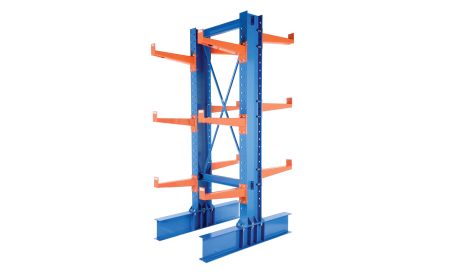

Beacon® Double-Sided Metal Racking – Set – BHDU-C Series

The Metal Racking is our heavy duty unit available as single or double base units. This unit is designed to save space by efficiently storing long lengths of materials such as tubing, pipes, and lumber. It offers flexibility to custom fit applications. The arms feature lips to prevent material roll off and are adjustable. Individual components are sold separately. Arms, braces, and uprights must be purchased to complete an entire single or double-sided unit. Arms are available as straight, inclined, heavy-duty straight and extra-heavy duty straight.
Starting at: $58.25

See chart below and click a model number

Product Details

  • Construction: Features heavy duty steel construction.
  • Size: Available in column heights of 96", 120", 144", and 168" and arm lengths of 18", 24", 30", 36", 42", and 48". Bases range from 28-1/4" up to 106". Contact Beacon in order to design a custom unit.
  • Weight: Single-sided uprights weigh 260 lbs. to 430, double-sided units weigh 275 lbs. to 510 lbs., brace sets weigh from 29 lbs. to 107 lbs., and arms weigh 16 lbs. to 36 lbs.
  • Operation: To adjust arms, simply align arms with pre-drilled holes (spaced every 10-1/4") and bolt in. Hardware is included.
  • Capacity: Single base frame features 12,400 lbs. to 24,700 lbs. capacities and double base frame features 24,800 lbs. to 49,400 lbs. capacities. Metal Racking arms feature a capacity from 1,000 to 3,400 lbs.
  • Note: Uprights are sold each, not in pairs. One pair of uprights, one set of braces (sold with two or three), and two or more arms makes a complete unit.

Documents
Double-Sided Metal Racking – Set – BHDU-C Series
Model No. Uniform Capacity Per Upright Uniform Level Capacity Contents Price
1) BHDU-C-8-24-SET 86,000 lbs. 8,000 lbs. (2) BHDU-C-8-24 8' High Double Sided Uprights, (1) BHB-C-8-6 Brace Set, (8) BHSA-C-24 24" Arms $3,323.15
2) BHDU-C-8-36-SET 64,000 lbs. 4,800 lbs. (2) BHDU-C-8-36 8' High Double Sided Uprights, (1) BHB-C-8-6 Brace Set, (8) BHSA-C-36 36" Arms $4,499.14
Single-Sided Metal Racking – Set – BHU-C Series
Model No. Uniform Capacity Per Upright Uniform Level Capacity Contents Price
3) BHU-C-8-36-SET 32,000 lbs. 2,400 lbs. (2) BHU-C-8-36 8' High Single Sided Uprights, (1) BHB-C-8-6 Brace Set, (8) BHSA-C-36 36" Arms $3,199.61
Double-Sided Metal Racking – Galvanized Set – BHDU-C Series
Model No. Uniform Capacity Per Upright Uniform Level Capacity Contents Price
4) BHDU-C-8-24-G-SET 86,000 lbs. 8,000 lbs. (2) BHDU-C-8-24-G 8' High Double Sided Uprights, (1) BHB-C-8-6-G Brace Set, (8) BHSA-C-24-G 24" Arms $4,360.14
5) BHDU-C-8-36-G-SET 64,000 lbs. 4,800 lbs. (2) BHDU-C-8-36-G 8' High Double Sided Uprights, (1) BHB-C-8-6-G Brace Set, (8) BHSA-C-36-G 36" Arms Call for Quote
Single-Sided Metal Racking – Galvanized Set – BHU-C Series
Model No. Uniform Capacity Per Upright Uniform Level Capacity Contents Price
6) BHU-C-8-36-G-SET 32,000 lbs. 2,400 lbs (2) BHU-C-8-36-G 8' High Single Sided Uprights, (1) BHB-C-8-6-G Brace Set, (8) BHSA-C-36-G 36" Arms Call for Quote
Double Sided Metal Racking - Uprights - BHDU-C Series
Model No. Height Base Arms to Use Capacity (LBS.) Price
7) BHDU-C-8-18 96" 46" 18" 49,400 $1,139.99
8) BHDU-C-8-24 96" 58" 18" 43,000 $1,225.08
9) BHDU-C-8-36 96" 82" 30" / 36" 36,600 / 32,000 $1,376.21
10) BHDU-C-8-48 96" 106" 42" / 48" 28,400 / 25,600 $1,556.85

Double Sided Metal Racking - Uprights - BHDU-C Series (continued)
Model No. Height Base Arms to Use Capacity (LBS.) Price
11) BHDU-C-10-18 120" 46" 18" 49,200 $1,299.88
12) BHDU-C-10-36 120" 82" 30" / 36" 36,400 / 31,600 $1,529.98
13) BHDU-C-10-48 120" 106" 42" / 48" 28,200 / 25,200 $1,722.79

14) BHDU-C-12-18 144" 46" 18" 48,800 $1,470.35
15) BHDU-C-12-24 144" 58" 18" 41,800 $1,540.43
16) BHDU-C-12-36 144" 82" 30" / 36" 35,600 / 31,200 $1,698.78
17) BHDU-C-12-48 144" 106" 42" / 48" 27,800 / 25,000 $1,870.79

18) BHDU-C-14-18 168" 46" 18" 46,800 $1,633.13
19) BHDU-C-14-24 168" 58" 18" 40,400 $1,710.72
20) BHDU-C-14-36 168" 82" 30" / 36" 35,200 / 30,800 $1,851.31
21) BHDU-C-14-48 168" 106" 42" / 48" 27,400 / 24,800 $2,057.41
Double Sided Metal Racking Double Sided Metal Racking - Uprights - BHDU-C Series- BHDU-C Series
Model No. Height Base Arms to Use Capacity (LBS.) Price
22) BHDU-C-10-24 120" 58" 18" 42,600 $1,368.53
Single Sided Metal Racking - Uprights - BHU-C Series
Model No. Height Base Arms to Use Capacity (LBS.) Price
23) BHU-C-8-18 96" 28¼" 18" 24,700 $1,069.60
24) BHU-C-8-24 96" 36½" 24" 21,500 $1,149.12
25) BHU-C-8-36 96" 48½" 30" / 36" 18,300/ 16,000 $1,222.61
26) BHU-C-8-48 96" 60½" 42" / 48" 14,200 / 12,800 $1,309.99

27) BHU-C-10-18 120" 28¼" 18" 24,700 $1,236.65
28) BHU-C-10-24 120" 36½" 24" 21,500 $1,305.30
29) BHU-C-10-36 120" 48½" 30" / 36" 18,300 / 16,000 $1,377.20
30) BHU-C-10-48 120" 60½" 42" / 48" 14,200 / 12,800 $1,459.90

31) BHU-C-12-18 144" 28¼" 18" 24,400 $1,416.27
32) BHU-C-12-24 144" 36½" 24" 20,900 $1,483.35
33) BHU-C-12-36 144" 48½" 30" / 36" 17,800 / 15,600 $1,559.96
34) BHU-C-12-48 144" 60½" 42" / 48" 13,900 / 12,500 $1,644.25

Single Sided Metal Racking - Uprights - BHU-C Series (continued)
Model No. Height Base Arms to Use Capacity (LBS.) Price
35) BHU-C-14-18 168" 28¼" 18" 23,400 $1,587.96
36) BHU-C-14-24 168" 36½" 24" 20,200 $1,666.19
37) BHU-C-14-36 168" 48½" 30" / 36" 17,600 / 15,400 $1,741.01
38) BHU-C-14-48 168" 60½" 42" / 48" 13,700 / 12,400 $1,829.97
Metal Racking - Brace Sets for 8' and 10' Uprights - BHB-C-8 Series
Model No. Upright Height Length Number of Braces Price
39) BHB-C-8-3 96" to 120" 36" 2 $198.60
40) BHB-C-8-4 96" to 120" 48" 2 $227.05
41) BHB-C-8-5 96" to 120" 60" 2 $256.79
42) BHB-C-8-6 96" to 120" 72" 2 $316.71
43) BHB-C-8-7 96" to 120" 84" 2 $343.78
44) BHB-C-8-8 96" to 120" 96" 2 $389.15
Metal Racking - Brace Sets for 12' and 14' Uprights - BHB-C-14 Series
Model No. Upright Height Length Number of Braces Price
45) BHB-C-14-3 144" to 168" 36" 3 $300.28
46) BHB-C-14-4 144" to 168" 48" 3 $327.14
47) BHB-C-14-5 144" to 168" 60" 3 $405.66
48) BHB-C-14-6 144" to 168" 72" 3 $417.11
49) BHB-C-14-7 144" to 168" 84" 3 $420.57
50) BHB-C-14-8 144" to 168" 96" 3 $618.43
Metal Racking - Straight Arms - BHSA-C Series
Model No. Length Capacity (LBS) Price
51) BHSA-C-18 18" 2,500 $58.25
52) BHSA-C-24 24" 2,000 $67.15
53) BHSA-C-30 30" 1,500 $77.65
54) BHSA-C-36 36" 1,200 $89.51
55) BHSA-C-42 42" 1,100 $107.41
56) BHSA-C-48 48" 1,000 $116.51
Metal Racking - Inclined Arms - BHIA-C Series
Model No. Length Capacity (LBS) Price
57) BHIA-C-18 18" 2,500 $58.25
58) BHIA-C-24 24" 2,000 $67.01
59) BHIA-C-30 30" 1,500 $76.11
60) BHIA-C-36 36" 1,200 $89.60
61) BHIA-C-42 42" 1,100 $99.97
62) BHIA-C-48 48" 1,000 $96.95
Heavy Duty Metal Racking - Straight Arm - BHDSA-C Series
Model No. Length Capacity (LBS) Price
63) BHDSA-C-36 36" 2,175 $95.49
64) BHDSA-C-42 42" 1,865 $108.85
65) BHDSA-C-48 48" 1,630 $117.93
66) BHDSA-C-48M 48" 2,000 $138.25
Extra-Heavy Duty Metal Racking - Straight Arms - BXHDSA-C Series
Model No. Length Capacity (LBS) Price
67) BXHDSA-C-36 36" 3,400 $125.44
68) BXHDSA-C-42 42" 2,900 $140.42
69) BXHDSA-C-48 48" 2,500 $153.80
