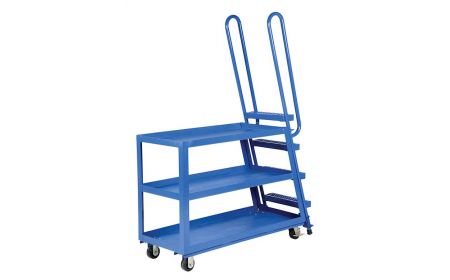

Portable Stockpicker Truck

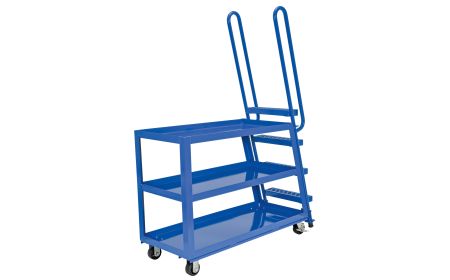

Portable Stock picker Truck - Mobile Picking Cart - BSPA series

Beacon® BSPS-HD Series

Portable Stock picker Truck - Mobile Picking Cart is ideal moving large items such as oversized boxes, cartons, and parts. The units feature a spring-loaded ladder for safer climbing and loading. The steps of each unit have a self-cleaning surface and non-skid footing. All units feature 3 shelves.
Starting at: $1,160.22

See chart below and click a model number

Product Details

  • Construction: This series is available in either steel or aluminum construction.
  • Size: The top shelf heights are 35" for the hi-duty trucks and 63" for the hi-frame trucks. The shelf clearance is 13" on the high-duty carts and 27" on hi-frame trucks. The hi-duty and hi-frame trucks have bottom shelf sizes of 22" or 28" wide x 52" long.
  • Color: Steel models feature a powder coated Beacon blue finish.
  • Weight: Models weigh between 156 and 270 lbs.
  • Capacity: Aluminum models have a 330-lb. capacity per shelf, while the steel models have a 500-lb. capacity per shelf. The aluminum model has a 500-lb. total capacity, while the steel units have a 1,000-lb. total capacity.
  • Standard: The Portable Stock picker Truck series comes standard with 4" x 2" mold-on-rubber casters: two swivel, two rigid. Units ending in -5PU feature 5" x 2" poly-on-steel casters, and those ending in -6MR have 6" x 2" rubber-on-steel casters.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Documents
Steel Hi-Duty Portable Stockpicker Truck - BSPS-HD Series
Model No. Bottom Shelf Size (W x L) Shelf Clearance Top Shelf Height Top Shelf Capacity Total Capacity (LBS) Price
1) BSPS-HD-2252 21½"x51" 13" 37-13/16" 500 1,000 $1,228.96
2) BSPS-HD-2852 27½"x51" 13" 37-13/16" 500 1,000 $1,366.34
Model No. Bottom Shelf Size (W x L) Shelf Clearance Top Shelf Height Top Shelf Capacity (LBS) Total Capacity (LBS) Price
3) BSPS-HD-2252-5PU 21½"x51" 13" 37-13/16" 500 1,000 $1,334.02
4) BSPS-HD-2252-6MR 21½"x51" 13" 37-13/16" 500 1,000 $1,160.22
Aluminum Hi-Duty Portable Stockpicker Truck - BSPA-HD Series
Model No. Bottom Shelf Size (W x L) Shelf Clearance Top Shelf Height Top Shelf Capacity (LBS) Total Capacity (LBS) Price
5) BSPA-HD-2252 22"x52" 13" 35" 330 500 $1,351.49
6) BSPA-HD-2252-5PU 22"x52" 13" 35" 330 500 $1,272.09
7) BSPA-HD-2252-6MR 22"x52" 13" 35" 330 500 $1,272.09
8) BSPA-HD-2852 28"x52" 13" 35" 330 500 $1,877.88
Steel Hi-Frame Portable Stockpicker Truck - BSPS-HF Series
Model No. Bottom Shelf Size (W x L) Shelf Clearance Top Shelf Height Top Shelf Capacity (LBS) Total Capacity (LBS) Price
9) BSPS-HF-2252 21½"x50¾" 27" 65-13/16" 500 1,000 $1,502.20
10) BSPS-HF-2852 21½"x50¾" 27" 65-13/16" 500 1,000 $1,714.92
11) BSPS-HF-2852-5PU 27½"x51" 27" 65-13/16" 500 1,000 $1,857.72
12) BSPS-HF-2852-6MR 27½"x51" 27" 65-13/16" 500 1,000 $1,616.64
