Warehouse Ladder

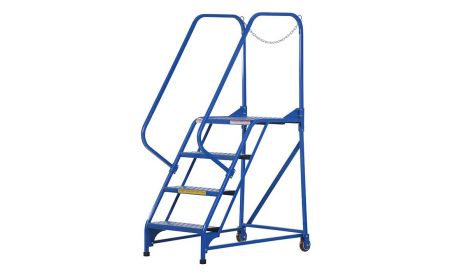

Warehouse Ladder - Platform Ladder - BLAD-MM series

Beacon® BLAD-MM Series

The Warehouse Ladder - Platform Ladder feature tilt-and-roll portability to move around warehouses and stock rooms. These units can be tilted to roll easily on their two 4" x 1-1/4" poly-on-poly wheels. Units are available with 4 to 12 perforated or grip strut steps. Top platform is 24" wide x 21" long.
Starting at: $1,028.43

See chart below and click a model number

Product Details

  • Construction: Units are constructed from steel square tubing framework.
  • Size: Units are 29-1/2" wide but range in length from 43-13/32" to 93-1/4" and in height from 70" to 150". Steps are 24" wide x 7" deep and are 10" apart. Top step heights range from 40" to 120". Removable handrail is 30" high.
  • Color: Models are powder coated Beacon blue.
  • Weight: 115 to 395 lbs.
  • Capacity: Units can handle 350 lbs.
  • Standard: The Warehouse Ladder complies with both OSHA 1910.29 and ANSI 14.7 specifications.
  • Note: Some assembly is required because units are shipped crated.

Documents



Warehouse Ladder - BLAD-MM Series
Model No. Description Number of Steps Top Step Height Top Platform (L x W) Steps (L x W) Step Spacing Step Degree Angle Overall Size (W x D x H) Capacity (LBS) Price
1) BLAD-MM-4-P Perforated Steps 4 40" 21"x24" 24"x7" 10" 58 29½"x43⅝"x70" 350 $1,028.43
2) BLAD-MM-5-P Perforated Steps 5 50" 21"x24" 24"x7" 10" 58 29½"x49¾"x80" 350 $1,093.03
3) BLAD-MM-6-P Perforated Steps 6 60" 21"x24" 24"x7" 10" 58 29½"x56-11/16"x90" 350 $1,161.72
4) BLAD-MM-7-P Perforated Steps 7 70" 21"x24" 24"x7" 10" 58 29½"x62⅜"x100" 350 $1,277.34
5) BLAD-MM-8-P Perforated Steps 8 80" 21"x24" 24"x7" 10" 58 29½"x68⅝"x110" 350 $1,408.10
6) BLAD-MM-9-P Perforated Steps 9 90" 21"x24" 24"x7" 10" 58 29½"x74⅞"x120" 350 $1,473.98
7) BLAD-MM-10-P Perforated Steps 10 100" 21"x24" 24"x7" 10" 58 32"x80⅛"x130" 350 $1,538.67
8) BLAD-MM-11-P Perforated Steps 11 110" 21"x24" 24"x7" 10" 58 32"x87⅜"x140" 350 $1,589.70
9) BLAD-MM-12-P Perforated Steps 12 120" 21"x24" 24"x7" 10" 58 32"x93¼"x156" 350 $1,643.58

10) BLAD-MM-4-G Grip Strut Steps 4 40" 21"x24" 24"x7" 10" 58 29½"x43⅝"x70" 350 $1,084.03
11) BLAD-MM-5-G Grip Strut Steps 5 50" 21"x24" 24"x7" 10" 58 29½"x49¾"x80" 350 $1,159.39
12) BLAD-MM-6-G Grip Strut Steps 6 60" 21"x24" 24"x7" 10" 58 29½"x56-11/16"x90" 350 $1,232.22
13) BLAD-MM-7-G Grip Strut Steps 7 70" 21"x24" 24"x7" 10" 58 29½"x62⅜"x100" 350 $1,356.93
14) BLAD-MM-8-G Grip Strut Steps 8 80" 21"x24" 24"x7" 10" 58 29½"x68⅝"x110" 350 $1,497.49
15) BLAD-MM-9-G Grip Strut Steps 9 90" 21"x24" 24"x7" 10" 58 29½"x74⅞"x120" 350 $1,583.91
16) BLAD-MM-10-G Grip Strut Steps 10 100" 21"x24" 24"x7" 10" 58 32"x80⅛"x130" 350 $1,662.06
17) BLAD-MM-11-G Grip Strut Steps 11 110" 21"x24" 24"x7" 10" 58 32"x87⅜"x140" 350 $1,713.34
18) BLAD-MM-12-G Grip Strut Steps 12 120" 21"x24" 24"x7" 10" 58 32"x93¼"x156" 350 $1,819.52
