Vertical Crossover Ladder

Vertical Crossover Ladder - BCOLV series

Beacon® BCOLV series

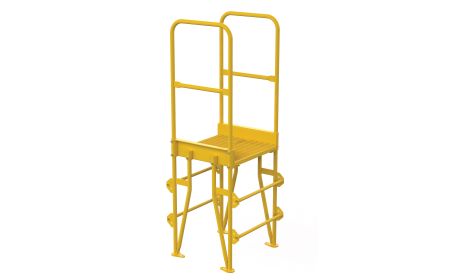

Vertical Crossover Ladder with an upper platform featuring two sided 42-5/8" high handrail, 21" mid rail with a 4" base toeboard to prevent toe from a pinch point ensuring OSHA compliant.
Starting at: $1,499.83

See chart below and click a model number

Product Details

  • Construction: Units feature steel construction for long lasting life and durability.
  • Size: Units come with 3-7 steps. Heights range from 78-5/8" to 126-5/8".
  • Installation: The Vertical Crossover Ladder unit must be mounted to the floor. Complies with OSHA 29 CFR 1910.27.
  • Color: Powder coat finish.
  • Weight: Units weigh from 183 to 370 lbs.
  • Capacities: Uniform capacity is 500 lbs.
  • Standard: Units features upper platform including removable two sided handrails.
  • Usage: Vertical Crossover Ladder is designed for a permanent crossover point. Designed and engineered for compact narrow and tight spaces.

Verticle Crossover Ladder - BCOLV series
Model No. Number of Steps on Each Side Platform (W x L x H) Overall Size (W x L x H) Clearance Span Width Clearance Span Height Uniform Capacity (LBS) Price
1) BCOLV-3-34-8 3 23-9/16"x24"x36" 28-11/16"x29-1/16"x78⅝" 8" 34-3-16" 500 $1,499.83
2) BCOLV-3-34-20 3 23-9/16"x36"x36" 28-11/16"x41-1/16"x78⅝" 20" 34-3/16" 500 $1,554.93
3) BCOLV-3-34-32 3 23-9/16"x48"x36" 23-11/16"x53-1/16"x78⅝" 32" 34-3/16" 500 $1,635.07
4) BCOLV-3-34-44 3 23-9/16"x60"x36" 23-11/16"x60-1/16"x78⅝" 44" 34-3/16" 500 $1,739.21
5) BCOLV-3-34-56 3 23-9/16"x72"x36" 23-11/16"x77-1/16"x78⅝" 56" 34-3/16" 500 $1,840.23

6) BCOLV-4-46-8 4 23-9/16"x24"x48" 28-11/16"x29-1/16"x90⅝" 8" 46-3-16" 500 $1,635.07
7) BCOLV-4-46-20 4 23-9/16"x36"x48" 28-11/16"x41-1/16"x90⅝" 20" 46-3-16" 500 $1,685.59
8) BCOLV-4-46-32 4 23-9/16"x48"x48" 28-11/16"x53-1/16"x90⅝" 32" 46-3-16" 500 $1,739.21
9) BCOLV-4-46-44 4 23-9/16"x60"x48" 28-11/16"x65-1/16"x90⅝" 44" 46-3-16" 500 $1,920.65
10) BCOLV-4-46-56 4 23-9/16"x72"x48" 28-11/16"x77-1/16"x90⅝" 56" 46-3-16" 500 $1,993.41

11) BCOLV-5-58-8 5 23-9/16"x24"x60" 28-11/16"x29-1/16"x102⅝" 8" 58-3/16" 500 $1,797.12
12) BCOLV-5-58-20 5 23-9/16"x36"x60" 28-11/16"x41-1/16"x102⅝" 20" 58-3/16" 500 $1,876.02
13) BCOLV-5-58-32 5 23-9/16"x48"x60" 28-11/16"x53-1/16"x102⅝" 32" 58-3/16" 500 $1,941.41
14) BCOLV-5-58-44 5 23-9/16"x60"x60" 28-11/16"x65-1/16"x102⅝" 44" 58-3/16" 500 $2,039.44
15) BCOLV-5-58-56 5 23-9/16"x72"x60" 28-11/16"x77-1/16"x102⅝" 56" 58-3/16" 500 $2,226.80

Verticle Crossover Ladder - BCOLV series (continued)

Model No. Number of Steps on Each Side Platform (W x L x H) Overall Size (W x L x H) Clearance Span Width Clearance Span Height Uniform Capacity (LBS) Price
16) BCOLV-6-70-8 6 23-9/16"x24"x72" 28-11/16"x29-1/16"x114⅝" 8" 70-3/16" 500 $1,901.25
17) BCOLV-6-70-20 6 23-9/16"x36"x72" 28-11/16"x41-1/16"x114⅝" 20" 70-3/16" 500 $1,984.51
18) BCOLV-6-70-32 6 23-9/16"x48"x72" 28-11/16"x53-1/16"x114⅝" 32" 70-3/16" 500 $2,084.05
19) BCOLV-6-70-44 6 23-9/16"x60"x72" 28-11/16"x65-1/16"x114⅝" 44" 70-3/16" 500 $2,207.47
20) BCOLV-6-70-56 6 23-9/16"x72" x72" 28-11/16"x77-1/16"x114⅝" 56" 70-3/16" 500 $2,351.73

21) BCOLV-7-82-8 7 23-9/16"x24"x84" 28-11/16"x29-1/16"x126⅝" 8" 82-3-16" 500 $2,042.43
22) BCOLV-7-82-20 7 23-9/16"x36"x84" 28-11/16"x41-1/16"x126⅝" 20" 82-3-16" 500 $2,186.58
23) BCOLV-7-82-32 7 23-9/16"x48"x84" 28-11/16"x53-1/16"x126⅝" 32" 82-3-16" 500 $2,289.24
24) BCOLV-7-82-44 7 23-9/16"x60"x84" 28-11/16"x65-1/16"x126⅝" 44" 82-3-16" 500 $2,411.25
25) BCOLV-7-82--56 7 23-9/16"x72"x84" 28-11/16"x77-1/16"x126⅝" 56" 82-3-16" 500 $2,555.26
