Tip Roll Ladders - Ladder Platform - BLAD-TGN series by Beacon Industries

Beacon® BLAD-TGN Series

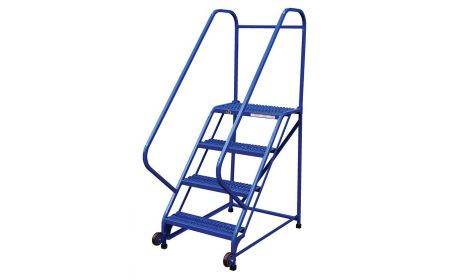

The Tip Roll Ladders - Ladder Platform are available in a straddle design for permanent crossover points or non-straddle design for standard use. Units feature a step angle of 50 or 58 degrees and 2 to 6 steps. Units roll on two 4" x 2" rigid-on-poly wheels. Steps are available as perforated or grip strut. FDA-approved models are available.
Starting at: $908.36

See chart below and click a model number

Product Details

  • Construction: Units feature welded tubular steel construction.
  • Size: Units width is 29-1/2". They range in depth from 30-1/8" to 77-1/8", and in height from 50" to 90". Steps are 24" wide x 7" deep. Top steps are 20" to 60" high.
  • Color: This series features a Beacon blue powder coat finish.
  • Weight: Units weigh from108 to 268 lbs.
  • Capacity: 350 lbs.
  • Standard: Straddle Tip Roll Ladders units (BLAD-TGS) feature a removable tool tray. Tool tray is 24" x 10". Black rubber feet protect floors.
  • Note: Ships fully assembled. The Tip Roll Ladders meet OSHA and ANSI requirements.

Documents
Tip Roll Ladders - Non-Straddle - BLAD-TGN Series
Model No. Step Type Number of Steps Top Step (W x D x H) Overall Size (W x D x H) Step Angle Ground Clearance Height Capacity (LBS) Price
1) BLAD-TRN-50-2-P Perforated 2 24"x14"x20" 29½" 30-15/16"x50" 50° 5½" 300 $908.36
2) BLAD-TRN-50-3-P Perforated 3 24"x14"x30" 29½"x38½"x60" 50° 5½" 300 $933.23
3) BLAD-TRN-50-4-P Perforated 4 24"x14"x40" 29½"x47"x70" 50° 5½" 300 $1,019.93
4) BLAD-TRN-50-5-P Perforated 5 24"x14"x50" 29½"x55½"x80" 50° 5½" 300 $1,241.92
5) BLAD-TRN-50-6-P Perforated 6 24"x14"x60" 29½"x63⅜"x90" 50° 5½" 300 $1,296.98

6) BLAD-TRN-60-2-P Perforated 2 24"x14"x20" 29½"x30⅛"x50" 58° 5½" 300 $908.42
7) BLAD-TRN-60-3-P Perforated 3 24"x14"x30" 29½"x35-13/16"x60" 58° 5½" 300 $942.70
8) BLAD-TRN-60-4-P Perforated 4 24"x14"x40" 29½"x42-1/16"x70" 58° 5½" 300 $1,039.27
9) BLAD-TRN-60-5-P Perforated 5 24"x14"x50" 29½"x48-3/16"x80" 58° 5½" 300 $1,223.95
10) BLAD-TRN-60-6-P Perforated 6 24"x14"x60" 29½"x54-5/16"x90" 58° 5½" 300 $1,290.21

11) BLAD-TRN-50-2-G Grip Strut 2 24"x14"x20" 29½" 30-15/16"x50" 50° 5½" 300 $1,024.16
12) BLAD-TRN-50-3-G Grip Strut 3 24"x14"x30" 29½"x38½"x60" 50° 5½" 300 $1,077.97
13) BLAD-TRN-50-4-G Grip Strut 4 24"x14"x40" 29½"x47"x70" 50° 5½" 300 $1,149.51
14) BLAD-TRN-50-5-G Grip Strut 5 24"x14"x50" 29½"x55½"x80" 50° 5½" 300 $1,360.48
15) BLAD-TRN-50-6-G Grip Strut 6 24"x14"x60" 29½"x63⅜"x90" 50° 5½" 300 $1,441.73

Tip Roll Ladders - Non-Straddle - BLAD-TGN Series (continued)
Model No. Step Type Number of Steps Top Step (W x D x H) Overall Size (W x D x H) Step Angle Ground Clearance Height Capacity (LBS) Price
16) BLAD-TRN-60-2-G Grip Strut 2 24"x14"x20" 29½"x30⅛ "x50" 58° 5½" 300 $973.19
17) BLAD-TRN-60-3-G Grip Strut 3 24"x14"x30" 29½"x35-13/16"x60" 58° 5½" 300 $1,059.88
18) BLAD-TRN-60-4-G Grip Strut 4 24"x14"x40" 29½"x42-1/16" 70" 58° 5½" 300 $1,113.71
19) BLAD-TRN-60-5-G Grip Strut 5 24"x14"x50" 29½"x48-3/16"x80" 58° 5½" 300 $1,361.80
20) BLAD-TRN-60-6-G Grip Strut 6 24"x14"x60" 29½"x54-5/16"x90" 58° 5½" 300 $1,430.82
Tip Roll Ladders - Straddle - BLAD-TGS Series
Model No. Step Type Number of Steps Top Step (W x D x H) Overall Size (W x D x H) Step Angle Ground Clearance Height Capacity (LBS) Price
21) BLAD-TRS-50-2-P Perforated 2 24"x21"x20" 29½"x44-13/16"x50" 50° 5½" 350 $984.05
22) BLAD-TRS-50-3-P Perforated 3 24"x21"x30" 29½"x52⅜"x60" 50° 5½" 350 $999.28
23) BLAD-TRS-50-4-P Perforated 4 24"x21"x40" 29½"x60-15/16"x70" 50° 5½" 350 $1,102.70
24) BLAD-TRS-50-5-P Perforated 5 24"x21"x50" 29½"x69⅜"x80" 50° 5½" 350 $1,306.62
25) BLAD-TRS-50-6-P Perforated 6 24"x21"x60" 29½"x77⅛"x90" 50° 5½" 350 $1,372.83

26) BLAD-TRS-60-2-P Perforated 2 24"x21"x20" 29½"x44-3/16"x50" 58° 5½" 350 $986.93
27) BLAD-TRS-60-3-P Perforated 3 24"x21"x30" 29½"x50-7/16"x60" 58° 5½" 350 $1,022.65
28) BLAD-TRS-60-4-P Perforated 4 24"x21"x40" 29½"x55¾"x70" 58° 5½" 350 $1,116.55
29) BLAD-TRS-60-5-P Perforated 5 24"x21"x50" 29½"x62"x80" 58° 5½" 350 $1,298.48
30) BLAD-TRS-60-6-P Perforated 6 24"x21"x60" 29½"x68¼"x90" 58° 5½" 350 $1,371.48

Tip Roll Ladders - Straddle - BLAD-TGS Series (continued)
Model No. Step Type Number of Steps Top Step (W x D x H) Overall Size (W x D x H) Step Angle Ground Clearance Height Capacity (LBS) Price
31) BLAD-TRS-50-2-G Grip Strut 2 24"x21"x20" 29½"x44-13/16"x50" 50° 5½" 350 $1,163.25
32) BLAD-TRS-50-3-G Grip Strut 3 24"x21"x30" 29½"x52⅜"x60" 50° 5½" 350 $1,258.44
33) BLAD-TRS-50-4-G Grip Strut 4 24"x21"x40" 29½"x60-15/16"x70" 50° 5½" 350 $1,393.56
34) BLAD-TRS-50-5-G Grip Strut 5 24"x21"x50" 29½"x69⅜"x80" 50° 5½" 350 $1,598.87
35) BLAD-TRS-50-6-G Grip Strut 6 24"x21"x60" 29½"x77⅛"x90" 50° 5½" 350 $1,783.62

36) BLAD-TRS-60-2-G Grip Strut 2 24"x21"x20" 29½"x44-3/16"x50" 58° 5½" 350 $1,163.37
37) BLAD-TRS-60-3-G Grip Strut 3 24"x21"x30" 29½"x50-7/16"x60" 58° 5½" 350 $1,309.39
38) BLAD-TRS-60-4-G Grip Strut 4 24"x21"x40" 29½"x55¾"x70" 58° 5½" 350 $1,466.70
39) BLAD-TRS-60-5-G Grip Strut 5 24"x21"x50" 29½"x62"x80" 58° 5½" 350 $1,705.14
40) BLAD-TRS-60-6-G Grip Strut 6 24"x21"x60" 29½"x68¼"x90" 58° 5½" 350 $1,859.47
