Portable Steps

Portable Steps - Mobile Working Platform - BASP series

Beacon® BASP Series

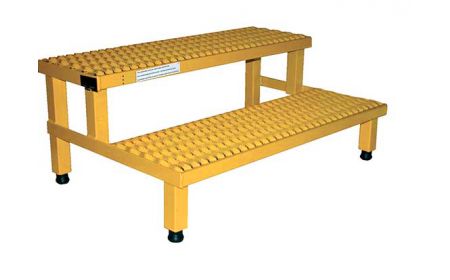

The Portable Steps - Mobile Working Platform serve as portable stairs or as a worker platform. Units feature serrated surfaces to prevent slippage. Legs are adjustable and changes each step's overall height by 1-1/2". The first step is adjustable up to 8-1/4", the second up to 15-1/4", and the third step (if applicable) up to 22-1/4". Units feature either 2 or 3 steps.
Starting at: $356.81

See chart below and click a model number

Product Details

  • Construction: Units feature welded steel, aluminum, or stainless steel construction.
  • Size: Models range in width from 23-3/4" to 71-3/4", in depth from 22-7/8" to 33-7/8", and in height from 14" to 21". Steps are 12" deep.
  • Color: Steel models are powder coated Beacon yellow.
  • Weight: 24 to 126 lbs.
  • Operation: Legs are individually adjustable by screwing them into or out of the leg base.
  • Capacity: Capacity of each model is 500 lbs.
  • Options: Portable Steps options include handles and portable dolly kits. BASP-PORT is a steel bolt-on unit for 24", 36", and 48" models only. Handle serves as hand rail when balancing on top step.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Documents

Options

Steel Adjustable Portable Steps - BASP Series
Model No. Number of Steps Overall Size (W x D) First Step Second Step Third Step Capacity (LBS) Price
1) BASP-24 2 23-13-16"x22⅞" 6" to 8¼" 13" to 15¼" - 500 $356.81
2) BASP-36 2 36-3/16"x22⅞" 6" to 8¼" 13" to 15¼" - 500 $383.91
3) BASP-48 2 48½"x22⅞" 6" to 8¼" 13" to 15¼" - 500 $424.42
4) BASP-60 2 59¾"x22⅞" 6" to 8¼" 13" to 15¼" - 500 $456.21
5) BASP-72 2 72-1/16"x22⅞" 6" to 8¼" 13" to 15¼" - 500 $591.99

6) BASP-24-3 3 23-13/16"x33⅞" 6" to 8¼" 13" to 15¼" 20" to 22¼" 500 $494.37
7) BASP-36-3 3 36-3/16"x33⅞" 6" to 8¼" 13" to 15¼" 20" to 22¼" 500 $512.93
8) BASP-48-3 3 48½"x33⅞" 6" to 8¼" 13" to 15¼" 20" to 22¼" 500 $545.41
Steel Adjustable Portable Steps with Hand Rails - BASP Series
Model No. Number of Steps Overall Size (W x D) First Step adjustment max Second Step adjustment min Hand Rail Height from bottom step Hand Rail Height from upper step Capacity (LBS) Price
9) BASP-24-HR 2 25-15/16"x22⅞ 8¼" 13" 34⅞" 27⅞" 500 $532.80
10) BASP-36-HR 2 38-3/16"x22⅞" 8¼" 13" 34⅞" 27⅞" 500 $558.98
11) BASP-48-HR 2 50½"x22⅞" 8¼" 13" 34⅞" 27⅞" 500 $592.50
Aluminum Adjustable Portable Steps - BASP-A Series
Model No. Number of Steps Overall Size (W x D) First Step Second Step Third Step Capacity (LBS) Price
12) BASP-24-A 2 24⅛"x22¾" 6" to 7½" 13" to 14½" - 500 $1,107.72
13) BASP-36-A 2 36⅛"x22¾" 6" to 7½" 13" to 14½" - 500 $1,189.95
14) BASP-48-A 2 48⅛"x22¾" 6" to7½" 13" to 14½" - 500 $1,296.26
15) BASP-60-A 2 60⅛"x22¾" 6" to 7½" 13" to 14½" - 500 $1,452.39
16) BASP-72-A 2 71⅛"x22¾" 6" to 7½" 13" to 14½" - 500 $1,791.60

17) BASP-24-3-A 3 24⅛"x33⅝" 6" to 7½" 13" to 14½" 20" to 21½" 500 $1,525.16
18) BASP-36-3-A 3 36⅛"x33⅝" 6" to 7½" 13" to 14½" 20" to 21½" 500 $1,588.33
19) BASP-48-3-A 3 48⅛"x33⅝" 6" to 7½" 13" to 14½" 20" to 21½" 500 $1,658.44
OPTION
Model No. Description For Use With Construction Price
20) BASP-PORT Portable Dolly Kit, Bolt-On, 4" x 1-1/4" Rigid Casters BASP-24, BASP-36, and BASP-48 series, all models Steel, Blue Powder Coat Finish $167.24
