Platform and Stairway

Platform and Stairway - BPWPS series by Beacon Industries

Beacon® BPWPS series

The Platform and Stairway can be assembled to fit a wide variety of applications. This unit is designed for workers to adjust the platform and stairway as needed. The platform legs are engineered with a fixed height to keep the unit stable. Each ladder sections includes round tube handrails.
Starting at: $204.31

See chart below and click a model number

Product Details

  • Construction: The Platform and Stairway features an industrial grade welded steel construction with a powder coat finish.
  • Size: These models have platform heights that range from 30” to 70”. Individual grip steps are 23-9/16” wide by 7” deep with 10” step spacing.
  • Installation: All components are sold separately. Fixed height ladder sections attach to the platform.
  • Capacity: Platform legs have a maximum loading capacity of 500 lbs. Stair/ Platform configuration has a maximum capacity of 1,000 lbs.
  • Standard: Each ladder section includes round tube handrails. Each handrail sections have a mid-rail and 4” Toe board. Hardware is included for easy assembly.
  • Options: Concrete wedge anchors are available for securing the Platform and Stairway to the floor.
  • Usage: These modular systems can be configured to fit most applications with a design layout for your requirements.
  • Note: Meets OSHA 1910.23 and ANSI A14.7 specification.

Documents
Platform and Stairway - BPWPS series
Model No. Overall Size (L x W x H) Weight Capacity (LBS) Color Installation Hardware Included Price
1) BPWPS-30-3636-BK 36"x36"x30" 500 Black Yes $883.39
2) BPWPS-30-3672-BK 36"x72"x30" 500 Black Yes $1,723.30
3) BPWPS-30-36108-BK 36"x108"x30" 500 Black Yes $2,594.21
4) BPWPS-40-3636-BK 36"x36"x40" 500 Black Yes $928.19
5) BPWPS-40-3672-BK 36"x72"x40" 500 Black Yes $1,840.90
6) BPWPS-40-36108-BK 36"x108"x40" 500 Black Yes $2,741.21
7) BPWPS-50-3636-BK 36"x36"x50" 500 Black Yes $964.59
8) BPWPS-50-3672-BK 36"x72"x50" 500 Black Yes $2,028.51
9) BPWPS-50-36108-BK 36"x108"x50" 500 Black Yes $2,991.82
10) BPWPS-60-3636-BK 36"x36"x60" 500 Black Yes $1,047.20
11) BPWPS-60-3672-BK 36"x72"x60" 500 Black Yes $2,106.91
12) BPWPS-60-36108-BK 36"x108"x60" 500 Black Yes $3,078.62
13) BPWPS-70-3636-BK 36"x36"x70" 500 Black Yes $1,106.00
14) BPWPS-70-3672-BK 36"x72"x70" 500 Black Yes $2,181.11
15) BPWPS-70-36108-BK 36"x108"x70" 500 Black Yes $3,169.63
Model No. Number of Steps Compatable Platform Height Distance Between Steps Step Depth Step Width Installation Hardware Included Price
16) BPWPS-ST-2-30-BKYL 2 30" 10" 7" 23⅜" Yes $770.54
17) BPWPS-ST-3-40-BKYL 3 40" 10" 7" 23⅜" Yes $829.46
18) BPWPS-ST-4-50-BKYL 4 50" 10" 7" 23⅜" Yes $913.19
19) BPWPS-ST-5-60-BKYL 5 60" 10" 7" 23⅜" Yes $1,026.41
20) BPWPS-ST-6-70-BKYL 6 70" 10" 7" 23⅜" Yes $1,182.25
Model No. Color Handrail Dimentions (L x W x H) Price
21) BPWPS-HR-36-YL Yellow 35⅞"x1-5/16"x47-11/16" $204.31
Platform and Stairway - BAS series - OPTION
Model No. Description Price

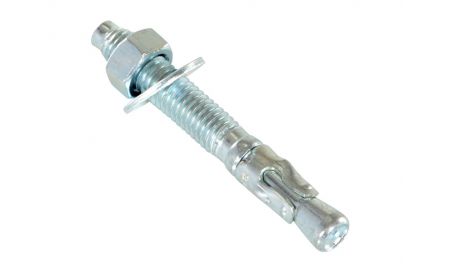

22) BAS-383 OPTION⅜"x3"L Concrete Wedge Anchor, sold each $12.39
23) BAS-383-4PK OPTION⅜"x3"L Concrete Wedge Anchor, 4 pack $17.90
