Mezzanine Stairs

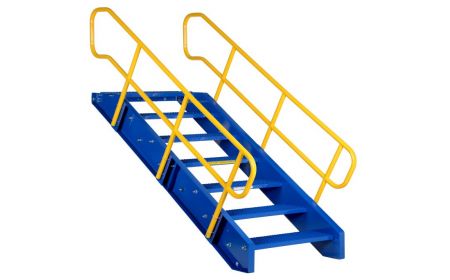

Mezzanine Stairs - Industrial Stairway - BSTAIR series

Beacon® BSTAIR Series

The Mezzanine Stairs - Industrial Stairway allow workers to reach landings up to 144" high. These units are available with 5 to 21 steps. Units feature non-skid grip-strut serrated steps which easily bolt into place. Handrails and side rail also bolt together. This series meets OSHA standards.
Starting at: $2,196.88

See chart below and click a model number

Product Details

  • Construction: Units feature steel construction.
  • Size: Maximum landing height ranges from 35" to 144" for drop down step mounting. If stairways are mounted flush with the floor, an extra step is required. Climbing angle is 30.8 degrees. Steps are 11-3/4" deep and 36" wide.
  • Color: Steps are powder-coated Beacon blue. Handrail tubing is powder-coated Beacon yellow.
  • Weight: Units weigh up to 1,160 lbs.
  • Capacity: 1,000 lbs.
  • Options: Concrete anchoring hardware is available for Mezzanine Stairs.
  • Note: Ships disassembled.

Documents
Mezzanine Stairs - BSTAIR Series
Model No. Number of Steps Step (W x D) Max. Loading Height Capacity (LBS) Step Angle Overall Size (W x L x H) Price
1) BSTAIR-36 5 36"x11¾" 36" 1,000 31° 44⅜"x70"x67½" $2,196.88
2) BSTAIR-48 7 36"x11¾" 48" 1,000 31° 44⅜"x85¼"x79½" $2,488.94
3) BSTAIR-60 8 36"x11¾" 60" 1,000 31° 44⅜"x111"x91½" $2,913.10
4) BSTAIR-72 10 36"x11¾" 72" 1,000 31° 44⅜"x126½"x103½" $3,302.20
5) BSTAIR-84 12 36"x11¾" 84" 1,000 31° 44⅜"x146⅜"x115½" $3,439.39
6) BSTAIR-96 13 36"x11¾" 96" 1,000 31° 44⅜"x166⅜"x127½" $3,642.76
7) BSTAIR-108 15 36"x9½" 108 1,000 31° 44¼"x186¼"x139½" $3,814.98
8) BSTAIR-120 17 36"x11¾" 120" 1,000 31° 44⅜"x206⅜"x151½" $4,007.60
9) BSTAIR-132 18 36"x11¾" 132" 1,000 31° 44¼"x226⅛"x163½" $4,181.24
10) BSTAIR-144 19 36"x11¾" 144" 1,000 31° 44⅜"x246¼"x175½" $4,369.60
