Beacon® BCOL Series

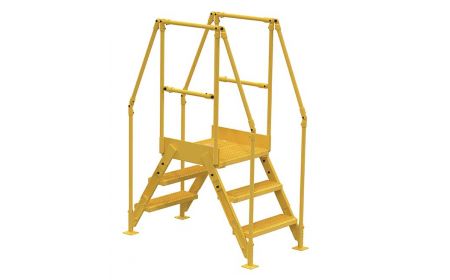

The Crossover Ladder - Crossover Stairs are designed to be mounted as permanent cross-over point over workplace obstructions such as pipes. Units have 3 to 6 steps on each side which are serrated for sure footing and added safety. The top platform has a removable 2-sided 42" high handrail and 21-midrail as well as non-removable 4" toe boards. Step angle is 58 degrees and steps are 7" deep, 23-1/2" wide and 10" high. The ground legs have floor mounting pads and units must be anchored to the floor for use.
Starting at: $2,188.92

See chart below and click a model number

Product Details

  • Construction: This series features all-welded steel construction but can be knockdown for both shipping and storage.
  • Size: Units are 29-1/4" wide and range in overall span from 54-1/2" to 128". Heights range from 72-7/8" to 103". Platform height ranges from 30" to 58", width from 24" to 60", and length is 23-1/2". Overall step height is 30", 40", 50", or 60".
  • Color: Units are powder-coated Beacon yellow.
  • Weight: 280 to 460 lbs.
  • Capacity: All models have a capacity of 500 lbs.
  • Standard: Crossover Ladder units meet OSHA 1910.23 and ANSI A14.7 standards.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Documents
Crossover Ladder - BCOL Series
Model No. Number of Steps on Each Side Platform (W x L x H) Overall Size (W x L x H) Overall Span Width Clear Span Width Overall Step Height Step (W x D x H) Step Angle Capacity (LBS) Price
1) BCOL-3-26-14 3 23½"x24"x30" 29¼"x54½"x72⅞" 54½" 14⅛" 30" 23½"x7"x10" 58° 500 $2,188.92
2) BCOL-3-26-23 3 23½"x36"x30" 29¼"x66½"x72⅞" 66½" 26⅛" 30" 23½"x7"x10" 58° 500 $2,312.77
3) BCOL-3-26-33 3 23½"x48"x30" 29¼"x78½"x72⅞" 78½" 38⅛" 30" 23½"x7"x10" 58° 500 $2,374.64
4) BCOL-3-26-44 3 23½"x60"x30" 29¼"x90½"x73" 90½" 50⅛" 30" 23½"x7"x10" 58° 500 $2,496.95

5) BCOL-4-36-14 4 23½"x24"x40" 29¼"x67"x82⅞" 67" 14⅛" 40" 23½"x7"x10" 58° 500 $2,389.02
6) BCOL-4-36-23 4 23½"x36"x40" 29¼"x79"x82⅞ 79" 26⅛" 40" 23½"x7"x10" 58° 500 $2,511.32
7) BCOL-4-36-33 4 23½"x48"x40" 29¼"x91"x82⅞" 91" 38⅛" 40" 23½"x7"x10" 58° 500 $2,654.30
8) BCOL-4-36-44 4 23½"x60"x40" 29¼"x103"x83" 103" 50⅛" 40" 23½"x7"x10" 58° 500 $2,770.28

9) BCOL-5-46-14 5 23½"x24"x50" 29¼"x79½"x92⅞" 79½" 14⅛" 50" 23½"x7"x10" 58° 500 $2,643.06
10) BCOL-5-46-23 5 23½"x36"x50" 29¼"x91½""x92⅞" 91½" 26⅛" 50" 23½"x7"x10" 58° 500 $2,767.03
11) BCOL-5-46-33 5 23½"x48"x50" 29¼"x103½"x92⅞" 103½" 38⅛" 50" 23½"x7"x10" 58° 500 $2,906.74
12) BCOL-5-46-44 5 23½"x60"x50" 29¼"x115½"x93" 115½" 50⅛" 50" 23½"x7"x10" 58° 500 $3,024.47

Crossover Ladder - BCOL Series (continued)
Model No. Number of Steps on Each Side Platform (W x L x H) Overall Size (W x L x H) Overall Span Width Clear Span Width Overall Step Height Step (W x D x H) Step Angle Capacity (LBS) Price
13) BCOL-6-56-14 6 23½"x24"x60" 29¼"x92"x102⅞" 92" 14⅛" 60" 23½"x7"x10" 58° 500 $2,921.04
14) BCOL-6-56-23 6 23½"x36"x60" 29¼"x104"x102⅞" 104" 26⅛" 60" 23½"x7"x10" 58° 500 $3,046.57
15) BCOL-6-56-33 6 23½"x48"x60" 29¼"x116"x102⅞" 116" 38⅛" 60" 23½"x7"x10" 58° 500 $3,181.74
16) BCOL-6-56-44 6 23½"x60"x60" 29¼"x128"x103" 128" 50⅛" 60" 23½"x7"x10" 58° 500 $3,299.16
