Alternating Stairs

Alternating Stairs - Fixed Ladder - BATS series

Beacon® BATS Series

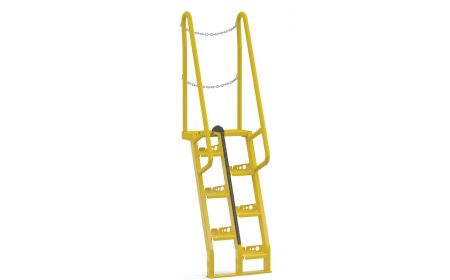

The Alternating Stairs - Fixed Ladder are designed to have a shorter span than most standard sets of steps. For extra safety, a handrail is attached to either side of the unit and formed-steel steps feature raised surfaces for maximum traction. Units are available with a total number of steps ranging from 7 to 24. Step angles are either 56 or 68 degrees. Units include a 3/16" safety chain.
Starting at: $1,546.76

See chart below and click a model number

Product Details

  • Construction: Units feature welded steel construction and bolt-on handrails.
  • Size: Units are 23-1/2" wide. Units range in length from 30" to 122-3/8" and in height from 90" to 210-3/8". The top step is from 48" to 168" high. Top step is 9-1/8" deep x 23-1/4" long; all other steps are 10-1/2" deep x 9-1/8" long.
  • Color: All units feature a Beacon yellow powder coat finish. An optional galvanized finish is available; contact Beacon for details.
  • Weight: Units range in weight from 150 to 638 lbs.
  • Capacity: 350 lbs.
  • Options: Contact Beacon for an optional Alternating Stairs galvanized finish.
  • Note: Unit ships knockdown to lower freight costs for customer.

Documents
Alternating Stairs - BATS Series
Model No. Number of Steps Top Step (W x D x H) Remaining Step (W x D) Step Angle Capacity (LBS) Overall Size (W x L x H) Price
1) BATS-4-56 7 23¼"x9⅛"x48" 9⅛"x10½" 56° 350 23½"x42"x90½" $1,546.76
2) BATS-5-56 8 23¼"x9⅛"x60" 9⅛"x10½" 56° 350 23½"x49¼" x102-7/16" $1,774.13
3) BATS-6-56 10 23¼"x9⅛"x72" 9⅛"x10½" 56° 350 23½"x57½"x114¼" $1,880.12
4) BATS-7-56 12 23¼"x9⅛"x84" 9⅛"x10½" 56° 350 23½"x65¾"x126¾" $2,124.16
5) BATS-8-56 13 23¼"x9⅛"x96" 9⅛"x10½" 56° 350 23½"x73½"x138¼" $2,351.52
6) BATS-9-56 15 23¼"x9⅛"x108" 9⅛"x10½" 56° 350 23½"x81⅝"x150¼" $2,599.84
7) BATS-10-56 16 23¼"x9⅛"x120" 9⅛"x10½" 56° 350 23½"x89¾"x162⅜" $2,839.76
8) BATS-11-56 17 23¼"x9⅛"x132" 9⅛"x10½" 56° 350 23½"x97½"x174⅛" $3,260.98
9) BATS-12-56 20 23¼"x9⅛"x144" 9⅛"x10½" 56° 350 23½"x106"x186⅛" $3,454.86
10) BATS-13-56 21 23¼"x9⅛"x156" 9⅛"x10½" 56° 350 23½"x114⅛"x198⅝" $3,810.51
11) BATS-14-56 24 23¼"x9⅛"x168" 9⅛"x10½" 56° 350 23½"x122⅜"x210⅜" $3,991.85

12) BATS-4-68 7 23¼"x9⅛"x48" 9⅛"x10½" 68° 350 23½"x30"x90" $1,546.76
13) BATS-5-68 8 23¼"x9⅛"x60" 9⅛"x10½" 68° 350 23½"x34⅝"x101⅞" $1,774.12
14) BATS-6-68 10 23¼"x9⅛"x72" 9⅛"x10½" 68° 350 23½"x39½"x113¾" $1,880.08
15) BATS-7-68 12 23¼"x9⅛"x84" 9⅛"x10½" 68° 350 23½"x44½"x125⅞" $2,124.21
16) BATS-8-68 13 23¼"x9⅛"x96" 9⅛"x10½" 68° 350 23½"x x49¾"x137¾" $2,351.50
17) BATS-9-68 15 23¼"x9⅛"x108" 9⅛"x10½" 68° 350 23½"x54⅛"x149⅝" $2,599.85
18) BATS-10-68 16 23¼"x9⅛"x120" 9⅛"x10½" 68° 350 23½"x58⅞"x161⅞" $2,839.76
19) BATS-11-68 17 23¼"x9⅛"x132" 9⅛"x10½" 68° 350 23½"x63½"x173⅝" $3,260.93
20) BATS-12-68 20 23¼"x9⅛"x144" 9⅛"x10½" 68° 350 23½"x68½"x185⅝" $3,454.85
21) BATS-13-68 21 23¼"x9⅛"x156" 9⅛"x10½" 68° 350 23½"x73½"x198" $3,810.47
22) BATS-14-68 24 23¼"x9⅛"x168" 9⅛"x10½" 68° 350 23½"x78⅜"x209⅞" $3,991.81

WarningPROP 65 WARNING

For California Residents: www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.
Finish Options





TM
Call Beacon: 800-454-7159314-487-7600
