Towable Yard Ramp

Towable Yard Ramp - BYRTW Series

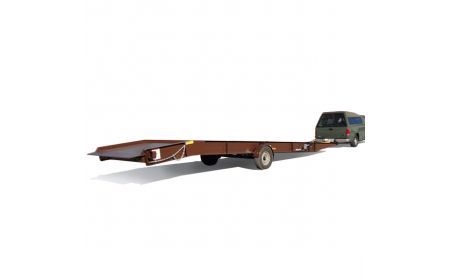

Beacon® Towable Yard Ramp

Towable Yard Ramp can be towed at max speed of 20 mph to a remote area in large yards for loading and unloading when no loading dock is available. Not DOT rated. Designed to service tractor trailers and rail cars. These models feature 27" pneumatic tires for towing and adjustable leg set for storing and height adjustment. Specifically engineered as a Towable Yard Ramp for use with forklifts.
Starting at: $36,797.88

See chart below and click a model number

Product Details

  • Construction: Heavy Duty Welded Steel Construction. Diamond plate base and top with steel grating deck for positive traction. Safety steel curbs 4". Overlap lip is 15" with rubber bumpers on the end.
  • Size: Available ramp lengths of 30', 36, or 40'', in usable ramp widths of 67" or 78" and in various overall ramp widths ranging from 72" to 85".
  • Operating Range: Ramp service range height is 45” to 62”
  • Color: Painted neutral Beacon earth-tone brown
  • Operation: The tow package includes a 2-5/16” diameter ball hitch receiver. Supplied with two safety chains as backup to keep the ramp from coming loose during towing. Towing vehicle supplied by others.
  • Capacities: Weight usage capacities are available in 16,000, 20,000, 25,000, or 30,000 lbs.
  • Standard: This series BYRTW includes 27" pneumatic tires, hydraulic lift pin when towing and a separate leg set for the adjustable Towable Yard Ramp landing gear.
  • Options: Towable Yard Ramp comes with a lighting package that includes running lights, brake lights and a turn flasher kit, specify when quoting. Not DOT rated.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Usage: Designed for large yard areas.
  • Note: Fender tire guards are standard.

Documents
Towable Yard Ramp
Model No. Capacity Overall Ramp Width Overall Ramp Width Length Price
1) BYRTW-16-7230 16,000 72" 66" 30' $36,797.88
2) BYRTW-16-7236 16,000 72" 66" 36' $39,090.34
3) BYRTW-16-8430 16,000 84" 78" 30' $38,571.75
4) BYRTW-16-8436 16,000 84" 78" 36' $41,940.89

5) BYRTW-20-7330 20,000 72" 66" 30' $38,698.82
6) BYRTW-20-8530 20,000 84" 78" 30' $41,765.74
7) BYRTW-20-7336 20,000 72" 66" 36' $38,123.56
8) BYRTW-20-8536 20,000 84" 78" 36' $45,583.07

9) BYRTW-25-7330 25,000 72" 66" 30' $39,942.07
10) BYRTW-25-8530 25,000 85" 78" 30' $43,098.29
11) BYRTW-25-7336 25,000 72" 66" 36' $43,424.55
12) BYRTW-25-8536 25,000 85" 78" 36' $48,418.17

Towable Yard Ramp (continued)
Model No. Capacity Overall Ramp Width Overall Ramp Width Length Price
13) BYRTW-30-7330 30,000 72" 66" 30' $41,934.02
14) BYRTW-30-8530 30,000 85" 78" 30' $46,575.62
15) BYRTW-30-7336 30,000 72" 66" 36' $47,303.71
16) BYRTW-30-8536 30,000 85" 78" 36' $51,388.93
