Browse 10 ProductsPortable Yard Ramp
Beacon® BSY Series

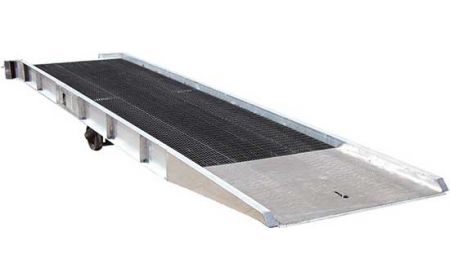

The Portable Yard Ramp - Portable Dock Ramps manufactured with aluminum structure with steel grating enable employees to quickly load and unload trailers, trucks, and similar vehicles when there are no docks available. They allow one employee to position and then use the units from ground level.
Starting at:
$32,351.07
Product Details
- Construction: This product is made of an aluminum frame with steel grating.
- Size: This series comes with usable widths of 66", 78" or 87", overall widths of 74", 86" or 95", and in lengths of 30' or 36'.
- Service Range: These models have a service height range from 45" to 62".
- Weight: The models come in a variety of weights ranging from 3,518 to 5,040 lbs.
- Operation: The units are equipped with a hand pump hydraulic lift.
- Capacities: Available in capacities of 16,000, 20,000, 25,000, and 30,000 lbs.
- Standard: A fork tow bar loop, hand pump hydraulic lift, safety pressure relief valve, 4" curbs, anchor chains, and 18" x 5" mold-on-rubber tires come standard.
- Options: Portable Yard Ramp options include tow bar hitch, fork positioning loop, hydraulic lift with on-board charger, handrails, 6" curbs instead of 4" curbs, safety yellow curbs, pneumatic tires, and lag holes.
- Note: Testing, adjustments, training and scheduled maintenance procedures by others.
Options
| Portable Yard Ramp with Steel Grating - BSY Series | |||||
| Model No. | Capacity (LBS) | Overall Width | Usable Width | Length | Price |
| 1) BSY-167230 | 16,000 | 74" | 66" | 30' | $32,351.07 |
| 2) BSY-167236-L | 16,000 | 74" | 66" | 36' | $36,868.08 |
| 3) BSY-168430 | 16,000 | 86" | 78" | 30' | $34,455.19 |
| 4) BSY-168436-L | 16,000 | 86" | 78" | 36' | $40,547.33 |
| 5) BSY-169330 | 16,000 | 95" | 87" | 30' | $39,063.24 |
| 6) BSY-169336-L | 16,000 | 95" | 87" | 36' | $54,631.91 |
| 7) BSY-207230 | 20,000 | 74" | 66" | 30' | $35,042.88 |
| 8) BSY-207236-L | 20,000 | 74" | 66" | 36' | $39,652.75 |
| 9) BSY-208430 | 20,000 | 86" | 78" | 30' | $38,116.02 |
| 10) BSY-208436-L | 20,000 | 86" | 78" | 36' | $43,330.05 |
| 11) BSY-209330 | 20,000 | 95" | 87" | 30' | $45,870.14 |
| 12) BSY-209336-L | 20,000 | 95" | 87" | 36' | $55,031.85 |
| 13) BSY-257230 | 25,000 | 74" | 66" | 30' | $37,296.23 |
| 14) BSY-257236-L | 25,000 | 74" | 66" | 36' | $41,217.86 |
| 15) BSY-258430 | 25,000 | 86" | 78" | 30' | $40,072.87 |
| 16) BSY-258436-L | 25,000 | 86" | 78" | 36' | $44,822.12 |
| 17) BSY-259330 | 25,000 | 95" | 87" | 30' | $52,055.41 |
| 18) BSY-259336-L | 25,000 | 95" | 87" | 36' | $59,137.02 |
Portable Yard Ramp with Steel Grating - BSY Series (continued) |
|||||
| Model No. | Capacity (LBS) | Overall Width | Usable Width | Length | Price |
| 19) BSY-307230 | 30,000 | 74" | 66" | 30' | $40,614.13 |
| 20) BSY-307236-L | 30,000 | 74" | 66" | 36' | $44,238.69 |
| 21) BSY-308430 | 30,000 | 86" | 78" | 30' | $44,945.28 |
| 22) BSY-308436-L | 30,000 | 86" | 78" | 36' | $53,973.71 |
| OPTION | |||||
| Model No. | Description | Price | |||
| 23) BAY-CRB6 | Installed Additional 6 in. Curb Height | $321.20 | |||
| 24) BAY-PNTR | Factory Installed Rubber Pneumatic Tires | $805.54 | |||
| 25) BAY-YEL | Factory Installed Yellow Painted Safety Curb | $391.57 | |||
