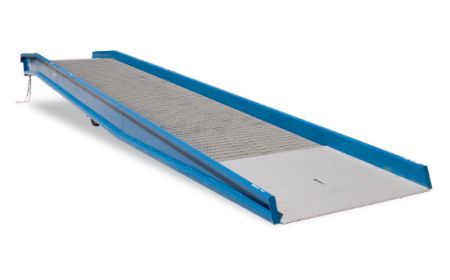

Beacon® Portable Loading Dock – BPLD Series

This BPLD features 8" safety curbs, including double acting hydraulic pump to activate the 18" rubber tires for stationary or mobile positioning.

Approximate 10 working days/

Starting at: $16,785.10

See chart below and click a model number

Product Details

  • Construction: Steel Construction side I beam with steel grating deck surface.
  • Color: Blue and Gray.
  • Capacities: Available in 16,000, 20,000, 25,000 and 30,000 lbs.
  • Usage: Portable Loading Dock to be mobile with either the forklift loop or tow bar, specify when ordering. Designed to move from one location to another in the loading yard. Position in place and have the trailer back up for loading and unloading procedures.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Documents
Portable Loading Dock – BPLD Series
Model No. Capacity (LBS) Overall Width Usable Width Level-Off Incline Length Overall Length Lip Curb Height Wheels Price
1) BPLD16SYS7030 16,000 70" 64"   30' 30' 15" 8" Yes $16,785.10
2) BPLD16SYS8430 16,000 84" 78"   30' 30' 15" 8" Yes $18,005.16
3) BPLD16SYS9630 16,000 96" 90"   30' 30' 15" 8" Yes $20,407.12
4) BPLD16SYS10230 16,000 102" 96"   30' 30' 15" 8" Yes $21,801.02
5) BPLD16SYS12030 16,000 120" 114"   30' 30' 15" 8" Yes $26,808.46

6) BPLD20SYS7030 20,000 70" 64"   30' 30' 15" 8" Yes $17,269.52
7) BPLD20SYS8430 20,000 84" 78"   30' 30' 15" 8" Yes $20,571.42
8) BPLD20SYS9630 20,000 96" 90"   30' 30' 15" 8" Yes $22,709.44
9) BPLD20SYS10230 20,000 102" 96"   30' 30' 15" 8" Yes $26,557.24
10) BPLD20SYS12030 20,000 120" 114"   30' 30' 15" 8" Yes $28,427.08

11) BPLD25SYS7030 25,000 70" 64"   30' 30' 15" 8" Yes $19,711.76
12) BPLD25SYS8430 25,000 84" 78"   30' 30' 15" 8" Yes $21,916.56
13) BPLD25SYS9630 25,000 96" 90"   30' 30' 15" 8" Yes $23,807.60
14) BPLD25SYS10230 25,000 102" 96"   30' 30' 15" 8" Yes $27,150.84
15) BPLD25SYS12030 25,000 120" 114"   30' 30' 15" 8" Yes $29,006.90

Portable Loading Dock – BPLD Series (continued)
Model No. Capacity (LBS) Overall Width Usable Width Level-Off Incline Length Overall Length Lip Curb Height Wheels Price
16) BPLD30SYS7030 30,000 70" 64"   30' 30' 15" 8" Yes $21,737.42
17) BPLD30SYS8430 30,000 84" 78"   30' 30' 15" 8" Yes $22,841.94
18) BPLD30SYS9630 30,000 96" 90"   30' 30' 15" 8" Yes $24,479.64
19) BPLD30SYS10230 30,000 102" 96"   30' 30' 15" 8" Yes $27,890.72
20) BPLD30SYS12030 30,000 120" 114"   30' 30' 15" 8" Yes $30,058.42
Portable Loading Dock - BPLD Series
Model No. Capacity (LBS) Overall Width Usable Width Level-Off Incline Length Overall Length Lip Curb Height Wheels Price
21) BPLD16SYS7036L 16,000 70" 64" 6' 30' 36' 15" 8" Yes $19,077.88
22) BPLD16SYS8436L 16,000 84" 78" 6' 30' 36' 15" 8" Yes $21,251.94
23) BPLD16SYS9636L 16,000 96" 90" 6' 30' 36' 15" 8" Yes $25,653.06

24) BPLD20SYS7036L 20,000 70" 64" 6' 30' 36' 15" 8" Yes $20,797.20
25) BPLD20SYS8436L 20,000 84" 78" 6' 30' 36' 15" 8" Yes $23,126.02
26) BPLD20SYS9636L 20,000 96" 90" 6' 30' 36' 15" 8" Yes $26,324.04

Portable Loading Dock - BPLD Series (continued)
Model No. Capacity (LBS) Overall Width Usable Width Level-Off Incline Length Overall Length Lip Curb Height Wheels Price
27) BPLD25SYS7036L 25,000 70" 64" 6' 30' 36' 15" 8" Yes $22,132.80
28) BPLD25SYS8436L 25,000 84" 78" 6' 30' 36' 15" 8" Yes $24,688.46
29) BPLD25SYS9636L 25,000 96" 90" 6' 30' 36' 15" 8" Yes $27,359.66

30) BPLD30SYS7036L 30,000 70" 64" 6' 30' 36' 15" 8" Yes $24,357.74
31) BPLD30SYS8436L 30,000 84" 78" 6' 30' 36' 15" 8" Yes $26,547.70
32) BPLD30SYS9636L 30,000 96" 90" 6' 30' 36' 15" 8" Yes $28,096.36
Options - BPLD Series
Model No. Description Price
33) BYRAAXLE Axle assembly with hardware. $106.00
34) BYRACB Dock mounted chain bracket. $137.80
35) BYRACYL Yard ramp cylinder. $495.02
36) BYRAUCP Upper cylinder pin with hardware. $41.34
37) BYRALCP Lower cylinder pin with hardware. $59.36
38) BYRACHA Safety chains. $205.64
39) BYRAGALV Galvanized. Call for Quote
40) BYRAHANDRAIL30-YEL 42" high double handrail for 30' all incline yard ramp. $4,657.64
41) BYRAHANDRAIL36L-YEL 42" high double handrail for 36' yard ramp with level off. $6,085.46
42) BYRAUC84ASSY Complete undercarriage assembly-84" ramp. $7,116.84
43) BYRAUC84 Undercarriage tube frame-84" ramp. $1,905.88
44) BYRA40H Hydraulic hose-40". $43.46
45) BYRA60H Hydraulic hose-60". $49.82
46) BYRAHOSE Complete hose assembly. $702.78
47) BYRAHANDLE Pump handle. $107.06
48) BYRAPIN Pump pin/stem. $132.50
49) BYRAHUB Hub assembly (with lug nuts). $605.26
50) BYRAPNEUX Pneumatic wheel in place of solid. $1,196.74
51) BYRAPUMP Yard ramp pump 5,000 PSI with mounting hardware. $2,330.94
52) BYRARC Ramp clamp. $420.82
53) BYRASOLID Solid rubber wheel assembly (no hub). $950.82
54) BYRATOW Tow bar. $420.82
