Free Standing Yard Ramp
Free Standing Yard Ramp
Beacon
®
B16, B20, B25 and B30 Series

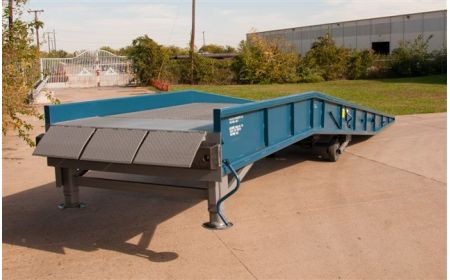

The Free Standing Yard Ramp is a mobile yard ramp designed to stand independently without the support of the truck trailer bed. This mobile unit can be raised and lowered with manual hand crank. Hydraulic hand pump unit allows for adjustable wheels to raise and release the ramp load after the leg set is adjusted to fit the truck bed height.
Starting at:
$
20,554.78
See chart below and click a model number
Product Details
Models:
Free Standing Yard Ramp designed to load and unload trucks in the yard without a loading dock.
Construction:
Heavy Duty Steel Construction. Identified without wheel set includes suffix (LNUALHL) and with wheels (LALHL)
Projection:
Safety Side Curbs: 8" tall.
Service Range:
Adjustable front leg manual crank service range: Approximate 39" to 60". No undercarriage (NU) does not affect service range.
Power:
Grey deck with Blue side structure.
Installation:
Position the Free Standing Yard Ramp in the yard and have tractor trailer truck back up to the ramp, substituting a dock. Use the hand crank to adjust to truck bed height. Flip down the ramp bridges to the truck bed for loading and unloading procedures.
Operation:
Double acting hydraulic hand pump to raise and lower 18" solid rubber wheels off the ground. Legs must be retracted before towing.
Capacity:
16,000, 20,000, 25,000 and 30,000 lbs.
Standard:
Free Standing Yard Ramp includes a removable tow bar to position the unit to a specific location for loading and unloading procedures in the yard.
Surcharge:
Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
Usage:
Sold 18" diameter Rubber Wheels allow for mobility for positioning in the yard. Max tow speed is 3 miles per hour.
Note:
Testing, adjustments, training and scheduled maintenance procedures by others.
Documents
BEACON-Approval-Dwg-LALHL
Prop. 65 WARNING
Free Standing Yard Ramp - B16, B20, B25 and B30 Series
Model No.
Undercarriage
Capacity (LBS)
Overall Width
Usable Width
Length
Level off
Price
1)
B16SYS7036LNUALHL
Without Wheel
16,000
70"
64"
36'
6'
$20,554.78
2)
B16SYS8436LNUALHL
Without Wheel
16,000
84"
78"
36'
6'
$24,021.61
3)
B16SYS9636LNUALHL
Without Wheel
16,000
96"
90"
36'
6'
$29,468.11
4)
B20SYS7036LNUALHL
Without Wheel
20,000
70"
64"
36'
6'
$23,621.78
5)
B20SYS8436LNUALHL
Without Wheel
20,000
84"
78"
36'
6'
$26,442.55
6)
B20SYS9636LNUALHL
Without Wheel
20,000
96"
90'
36'
6'
$30,277.52
Free Standing Yard Ramp - B16, B20, B25 and B30 Series (continued)
Model No.
Undercarriage
Capacity (LBS)
Overall Width
Usable Width
Length
Level off
Price
7)
B25SYS7036LNUALHL
Without Wheel
25,000
70"
64"
36'
6'
$25,228.42
8)
B25SYS8436LNUALHL
Without Wheel
25,000
84"
78"
36'
6'
$28,305.18
9)
B25SYS9636LNUALHL
Without Wheel
25,000
96"
90"
36'
6'
$31,523.34
10)
B30SYS7036LNUALHL
Without Wheel
30,000
70"
64"
36'
6'
$27,907.79
11)
B30SYS8436LNUALHL
Without Wheel
30,000
84"
78"
36'
6'
$30,550.58
12)
B30SYS9636LNUALHL
Without Wheel
30,000
96"
90"
36'
6'
$32,420.52
13)
B16SYS7036LALHL
With Wheels
16,000
70"
64"
36'
6'
$23,955.79
14)
B16SYS8436LALHL
With Wheels
16,000
84"
78"
36'
6'
$27,422.62
15)
B16SYS9636LALHL
With Wheels
16,000
96"
90"
36'
6'
$32,869.12
Free Standing Yard Ramp - B16, B20, B25 and B30 Series (continued)
Model No.
Undercarriage
Capacity (LBS)
Overall Width
Usable Width
Length
Level off
Price
16)
B20SYS7036LALHL
With Wheels
20,000
70"
64"
36'
6'
$26,900.89
17)
B20SYS8436LALHL
With Wheels
20,000
84"
78"
36'
6'
$29,843.56
18)
B20SYS9636LALHL
With Wheels
20,000
96"
90"
36'
6'
$33,678.53
19)
B25SYS7036LALHL
With Wheels
25,000
70"
64"
36'
6'
$28,629.43
20)
B25SYS8436LALHL
With Wheels
25,000
84"
78"
36'
6'
$31,706.19
21)
B25SYS9636LALHL
With Wheels
25,000
96"
90"
36'
6'
$34,924.35
22)
B30SYS7036LALHL
With Wheels
30,000
70"
64"
36'
6'
$31,308.80
23)
B30SYS8436LALHL
With Wheels
30,000
84"
78"
36'
6'
$33,956.46
24)
B30SYS9636LALHL
With Wheels
30,000
96"
90"
36'
6'
$35,816.66
PROP 65 WARNING
For California Residents:
www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.
