Beacon® BDYR Series

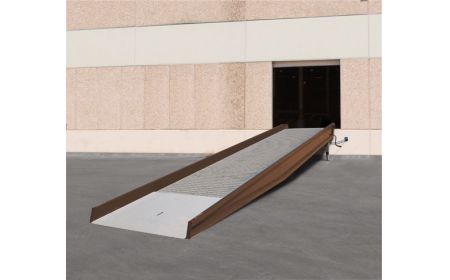

The Dock Yard Ramp - Industrial Ramps allow workers to load and unload trucks, rail cars, and trailers from ground level at facilities without freight docks. They are operated via a manual 2-speed hand crank and feature positive traction open steel grating, safety locking chains, 9" steel wheels, rubber bumpers, 4" high steel safety curbs, and a 15" overlap lip.
Starting at: $21,568.03

See chart below and click a model number

Product Details

  • Construction: Constructed from heavy-duty steel.
  • Size: Models are 30' long. Overall width for the 16,000 lb. capacities range from 72" or 84". The overall width for capacities ranging at 20,000 lbs. or higher is 73" or 85". Refer to chart for usable width.
  • Service Range: The unit's service range is 46" to 62".
  • Color: The units are painted neutral earth-tone brown.
  • Weight: The models come in various weights ranging from 5,670 to 6,720 lbs.
  • Operation: Designed to be mounted to the dock when a vehicle such as a forklift needs to be driven from the top of the dock down to the driveway or dock yard.
  • Capacity: Dock Yard Ramp models are available in service capacities of 16,000, 20,000, 25,000, and 30,000 lbs.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Documents
Dock Yard Ramp - BDYR Series
Model No. Capacity (LBS) Overall Width Usable Width Length Note Price
1) BDYR-16-7230 16000 72" 66" 30' A $21,568.03
2) BDYR-16-8430 16000 84" 78" 30' A $21,869.92
3) BDYR-16-7236 16000 72" 66" 36' B $22,354.98
4) BDYR-16-8436 16000 84" 78" 36' B $24,988.86

5) BDYR-20-7330 20000 73" 66" 30' A $22,195.55
6) BDYR-20-8530 20000 85" 78" 30' A $24,836.22
7) BDYR-20-7336 20000 73" 66" 36' B $24,980.38
8) BDYR-20-8536 20000 85" 78" 36' B $28,121.38

9) BDYR-25-7330 25000 73" 66" 30' A $23,265.73
10) BDYR-25-8530 25000 85" 78" 30' A $25,981.02
11) BDYR-25-7336 25000 73" 66" 36' B $26,264.26
12) BDYR-25-8536 25000 85" 78" 36' B $30,548.35

Dock Yard Ramp - BDYR Series (continued)
Model No. Capacity (LBS) Overall Width Usable Width Length Note Price
13) BDYR-30-7330 30000 73" 66" 30' A $24,980.38
14) BDYR-30-8530 30000 85" 78" 30' A $26,973.18
15) BDYR-30-7336 30000 73" 66" 36' B $29,547.71
16) BDYR-30-8536 30000 85" 78" 36' B $30,824.80
Notes:
A: 30' Ramps include a 30' Ramp Length. Anchors securely to the dock.
B: 36' Ramps include a 30' Ramp Length & 6' Level Off Anchors securely to the dock.
