Crossover Hose Ramp

Name: Crossover Hose Ramp
Brand: Beacon
Price: 744.42 USD
Availability: InStock

Beacon® BUHB Series

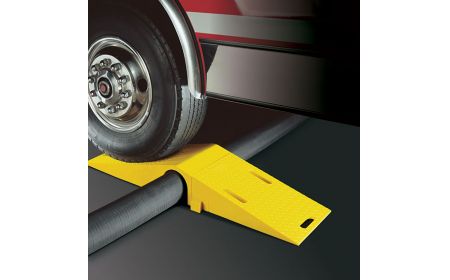

The Crossover Hose Ramp is designed for heavy-duty applications. These Hose Guard Ramps can cover hoses up to 6.5" in diameter.

Starting at: $744.42

See chart below and click a model number

Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Cross-Over Cable Ramps - BUHB Series
Model No.	Description	Bridge Length	Bridge Width	Bridge Height	Tunnel Diameter	Tunnel Top Length	Tunnel Base Length	Ramp Top Length	Ramp Base Length	Capacity Per Tire (LBS)	Price
1) BUHB2025	For up to 3" Lines	34.75"	16"	3.88"	3"	5.38"	13.25"	14.75"	10.75"	23,700	$744.42
2) BUHB3035	For up to 3.5" Lines	38.25"	16"	4.63"	3.5"	6.5"	14.38"	16"	12"	19,800	$842.59
3) BUHB4045	For up to 4.5" Lines	44"	16"	5.5"	4.5"	7.75"	15.63"	18.25"	14.25"	19,300	$1,053.72
4) BUHB5060	For up to 6.5" Lines	60"	16"	8.13"	7"	9.13"	18.25"	25.5"	20.88"	17,100	$1,325.02
OPTION
Model No.	Description									For Use With	Price
5) BUHB2025T	Tunnel Only									Up to 3" lines	$406.32
6) BUHB3035T	Tunnel Only									Up to 3.5" lines	$459.96
7) BUHB4045T	Tunnel Only									Up to 4.5" lines	$575.94
8) BUHB5060T	Tunnel Only									Up to 6.5" lines	$593.79

9) BUHB2025R	Ramp Only									BUHB2025 Tunnel	$333.48
10) BUHB3035R	Ramp Only									BUHB3035 Tunnel	$372.78
11) BUHB4045R	Ramp Only									BUHB4045 Tunnel	$575.94
12) BUHB5060R	Ramp Only									BUHB5060 Tunnel	$710.20
Model No.	Description									For Use With	Price
13) BUHB2025TC	Tunnel Connector Only									BUHB2025 Tunnel	$278.89
14) BUHB3035TC	Tunnel Connector Only									BUHB3035 Tunnel	$327.24
15) BUHB4045TC	Tunnel Connector Only									BUHB4045 Tunnel	$391.56
16) BUHB5060TC	Tunnel Connector Only									BUHB5060 Tunnel	$494.81
