Drum Cradle Rack

Drum Cradle Rack - BPRDC series

Beacon® BPRDC Series

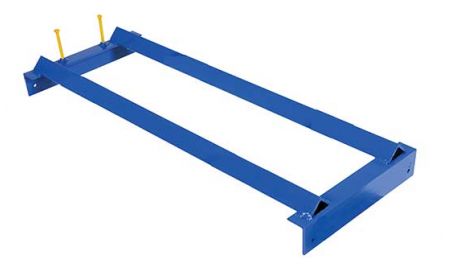

The Drum Cradle Rack is designed to sit in existing 42" deep pallet racks to store drums for easy access. This equipment is ideal for use in areas where pallet racks are in place but there is no room for drum racks. This series is available in two types of models: tilting and rolling. BPRDC-42 feature rear barrel tilting bolts to slope the drum and get up to 3 percent more liquid out. BPRDC-42-R has rotation rollers which allow the barrel to be rotated to dispense liquid and is easier to use with faucets or vents.
Starting at: $183.14

See chart below and click a model number

Product Details

  • Construction: Units feature all-welded steel construction. The roller unit has 3" x 1" polypropylene rollers.
  • Size: BPRDC-42 is 16" wide x 4-3/4" high. BPRDC-42-R is 17-1/4" wide x 7" high. Both models are 43" long.
  • Color: This Drum Cradle Rack series is powder coated Beacon blue.
  • Weight: 36 or 42 lbs.
  • Capacity: This unit works with both 30 and 55-gallon barrels.
  • Options: An optional drip pan is available for the Drum Cradle Rack to catch and prevent messy spills on dispensing start-up or finish.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.



Drum Cradle Rack - BPRDC Series
Model No. Description Overall Size (L x W x H) Works With Price
1) BPRDC-42 Tilting Pallet Rack Drum Cradle 43"x16"x4¾" 42" deep pallet racks $183.14
2) BPRDC-42-R Pallet Rack Drum Cradle with Rollers 43"x17¼"x7" 42" deep pallet racks $277.16
Model No. Construction Overall Size (W x L x H) Length Added Price
3) BPRDC-DPN Steel & Plastic 10¾"x8⅜"x4⅛" 8⅝" $110.51

Call Beacon: 800-454-7159314-487-7600
