Loading Dock Leveler

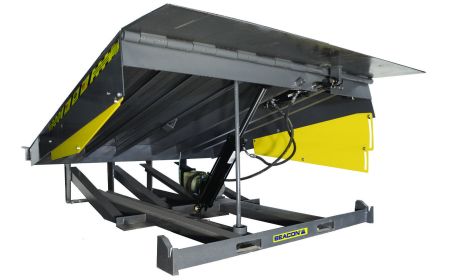

Hydraulic Loading Dock Leveler - BH5 Series

Beacon® BH5 Series

Beacon® technology Loading Dock Leveler is Safe, efficient and engineered for performance. The Beacon® Hydraulic Loading Dock Leveler is designed to seamlessly compensate for height differences between truck beds and loading docks, ensuring smooth and efficient cargo transfer. Built with electric hydraulic technology, this model offers a control panel for fast and reliable operation. Standard safety features include side toe guards to protect personnel during loading and unloading. The unit also features an automatic return-to-dock function with auto-recycle, increasing efficiency and minimizing downtime. Ideal for use in distribution centers, warehouses, manufacturing plants, airports, and assembly facilities, this dock leveler is the reliable choice for demanding environments where safety, performance, and ease of use are essential. The Beacon® brand stands for innovation and dependability in loading dock technology—trusted by professionals worldwide.
Starting at: $10,328.34

See chart below and click a model number

Product Details

  • Construction: The Loading Dock Leveler features heavy-duty welded structural steel construction for long lasting use.
  • Size: This BH5 series has 6', 6.5', or 7' deck widths. The units feature 6', 8', or 10' nominal lengths. Special sizes are available.
  • Electrical: These units feature a 1 Hp 115V AC or 230V AC 1 Phase motor standard. Units are available with a 1 Hp 230V AC or 460V AC 3 Phase motor at no additional charge.
  • Power: Motor Specifications: Class B insulation, Design Code: L, Service Factor: 1.25, Efficiency 72%, intermittent duty, Power Factor: 78%.
  • Color: Finish - Enamel base gray paint.
  • Operation: The hydraulic cylinder controls the deck and lip movement of the Hydraulic Loading Leveler. Auto recycle into stored position is standard after truck departs.
  • Capacities: This BH5 series features service capacities of 25,000, 30,000, 35,000, 40,000, and 45,000 lbs. Published ratings are static, dynamic roll over is 50% of static.
  • Standard: These units come standard with a 16" hinged lip, full-range toe guards, and dock bumpers.
  • Options: An optional Versa panel is available to control the Hydraulic Loading Leveler along with the BEVR650 and overhead doors. Other options include electrical upgrades, self-forming pans, weather seals, pit curb angle kits, and deep pit anchor kits.
  • Note: Loading Dock Leveler testing, adjustments, training and scheduled maintenance procedures by others.

Documents

Options

Loading Dock Leveler - BH5 Series
Model No. Capacity Width Length Height Voltage Controls Price
1) BH56625 25,000 72" 6' 19" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $10,328.34
2) BH56825 25,000 72" 8' 19" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $10,946.13
3) BH561025 25,000 72" 10' 23" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $12,550.34
4) BH56625.5 25,000 78" 6' 19" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $10,981.97
5) BH56825.5 25,000 78" 8' 19" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $11,352.30
6) BH561025.5 25,000 78" 10' 23" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $12,958.21
7) BH57625 25,000 83" 6' 19" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $11,244.79
8) BH57825 25,000 83" 8' 19" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $11,644.13
9) BH571025 25,000 83" 10' 23" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $13,378.04

10) BH56630 30,000 72" 6' 19" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $10,401.73
11) BH56830 30,000 72" 8' 19" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $11,019.52
12) BH561030 30,000 72" 10' 23" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $12,587.88
13) BH56630.5 30,000 78" 6' 19" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $11,019.52
14) BH56830.5 30,000 78" 8' 19" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $11,538.32
15) BH561030.5 30,000 78" 10' 23" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $13,253.46
16) BH57630 30,000 83" 6' 19" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $11,080.95
17) BH57830 30,000 83" 8' 19" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $11,019.52
18) BH571030 30,000 83" 10' 23" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $13,427.53

19) BH56635 35,000 72" 6' 19" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $10,785.71
20) BH56835 35,000 72" 8' 19" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $11,415.45
21) BH561035 35,000 72" 10' 23" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $12,971.87
22) BH56635.5 35,000 78" 6' 19" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $11,401.79
23) BH56835.5 35,000 78" 8' 19" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $11,970.09
24) BH561035.5 35,000 78" 10' 23" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $13,661.33
25) BH57635 35,000 83" 6' 19" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $11,191.88
26) BH57835 35,000 83" 8' 19" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $11,415.45
27) BH571035 35,000 83" 10' 23" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $13,847.35

Loading Dock Leveler - BH5 Series (continued)
Model No. Capacity Width Length Height Voltage Controls Price
28) BH56640 40,000 72" 6' 19" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $10,847.15
29) BH56840 40,000 72" 8' 19" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $11,512.72
30) BH561040 40,000 72" 10' 23" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $13,451.42
31) BH56640.5 40,000 78" 6' 19" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $11,464.94
32) BH56840.5 40,000 78" 8' 19" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $12,092.97
33) BH561040.5 40,000 78" 10' 23" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $14,045.32
34) BH57640 40,000 83" 6' 19" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $11,328.41
35) BH57840 40,000 83" 8' 19" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $12,267.04
36) BH571040 40,000 83" 10' 23" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $14,477.09

37) BH56645 45,000 72" 6' 19" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $11,007.57
38) BH56845 45,000 72" 8' 19" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $11,637.31
39) BH561045 45,000 72" 10' 23" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $13,611.84
40) BH56645.5 45,000 78" 6' 19" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $11,512.72
41) BH56845.5 45,000 78" 8' 19" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $12,180.00
42) BH561045.5 45,000 78" 10' 23" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $14,352.51
43) BH57645 45,000 83" 6' 19" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $12,975.28
44) BH57845 45,000 83" 8' 19" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $11,637.31
45) BH571045 45,000 83" 10' 23" 115 Vac, 1 Ph, 60 Hz. Touch Screen Control Panel $14,611.91
Model No. Capacity Width Length Height Price
46) BEH91035 35,000 107" 15' 25 ¾" $27,791.85
