Loading Dock Plate

Loading Dock Plate - BBTA Series

Beacon® BBTA Series

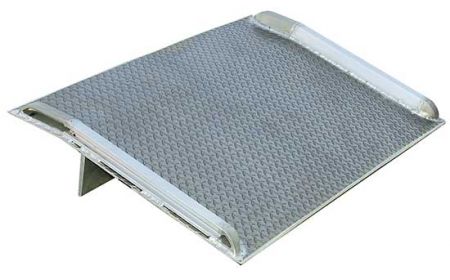

The forklift enabled Loading Dock Plate is designed to maximize safety while working with heavy forklifts and loads. It features locking legs that prevent movement during loading and unloading. The welded aluminum safety curbs provide a visible driving lane and work to prevent accidental runoffs. The locking legs of this unit are uneven to enable it, when not in use, to sit canted for easier forklift pickup. This series complies with OSHA standards.
Starting at: $1,138.89

See chart below and click a model number

Product Details

  • Size: Loading Dock Plate units come in several widths, ranging from 60" to 84", and in a variety of lengths, ranging from 30" to 84".
  • Weight: These units are available in a variety of weights ranging from 106 to 369 lbs.
  • Capacity: These Loading Dock Plate models are available in a variety of capacities ranging from 5,000 to 20,000 lbs.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents
Loading Dock Plate - BBTA Series
Model No. Capacity Width Length Price
1) BBTA-05005478 5,000 54" 78" $2,214.30
2) BBTA-05006072 5,000 60" 72" $2,211.71
3) BBTA-05006660 5,000 66" 60" $2,106.75
4) BBTA-05006672 5,000 66" 72" $4,136.72
5) BBTA-05007230 5,000 72" 30" $1,222.15
6) BBTA-05007236 5,000 72" 36" $1,390.57
7) BBTA-05007248 5,000 72" 48" $1,724.40
8) BBTA-05007260 5,000 72" 60" $2,303.15
9) BBTA-05007266 5,000 72" 66" $4,136.71
10) BBTA-05007272 5,000 72" 72" $4,424.85
11) BBTA-05007836 5,000 78" 36" $1,538.52
12) BBTA-05007866 5,000 78" 66" $4,552.73
13) BBTA-05007872 5,000 78" 72" $4,799.07
14) BBTA-05008466 5,000 84" 66" $5,206.93
15) BBTA-06005478 6,000 54" 78" $2,241.25
16) BBTA-06006054 6,000 60" 54" $1,770.10
17) BBTA-06006060 6,000 60" 60" $1,988.26
18) BBTA-06006072 6,000 60" 72" $2,369.12
19) BBTA-06006084 6,000 60" 84" $2,612.85
20) BBTA-06006636 6,000 66" 36" $1,324.54
21) BBTA-06006660 6,000 66" 60" $2,157.80
22) BBTA-06006672 6,000 66" 72" $4,136.85
23) BBTA-06007236 6,000 72" 36" $1,389.08
24) BBTA-06007266 6,000 72" 66" $4,136.85
25) BBTA-06007836 6,000 78" 36" $1,614.00
26) BBTA-06007848 6,000 78" 48" $1,992.20
27) BBTA-06007860 6,000 78" 60" $2,414.95
28) BBTA-06007866 6,000 78" 66" $4,552.67
29) BBTA-06007872 6,000 78" 72" $4,888.01
30) BBTA-06008436 6,000 84" 36" $1,634.08
31) BBTA-06008448 6,000 84" 48" $2,099.95
32) BBTA-06008460 6,000 84" 60" $2,464.82
33) BBTA-06008466 6,000 84" 66" $5,206.91
34) BBTA-06008472 6,000 84" 72" $5,539.53
35) BBTA-08006078 8,000 60" 78" $2,751.55
36) BBTA-08006084 8,000 60" 84" $2,808.12
37) BBTA 8,000 66" 36" $1,138.89
38) BBTA-08006660 8,000 66" 60" $2,371.95
39) BBTA-08006672 8,000 66" 72" $4,637.62
40) BBTA-08007236 8,000 72" 36" $1,500.96
41) BBTA-08007260 8,000 72" 60" $2,479.50
42) BBTA-08007266 8,000 72" 66" $4,672.47
43) BBTA-08007272 8,000 72" 72" $4,966.00
44) BBTA-08007836 8,000 78" 36" $1,614.00
45) BBTA-08007848 8,000 78" 48" $2,031.23
46) BBTA-08007860 8,000 78" 60" $2,867.31
47) BBTA-08007872 8,000 78" 72" $5,474.93
48) BBTA-08008460 8,000 84" 60" $2,925.16
49) BBTA-08008466 8,000 84" 66" $5,741.44
50) BBTA-08008472 8,000 84" 72" $6,298.72
51) BBTA-10006060 10,000 60" 60" $2,633.03
52) BBTA-10006072 10,000 60" 72" $2,923.84
53) BBTA-10006078 10,000 60" 78" $3,198.49
54) BBTA-10006672 10,000 66" 72" $5,123.45
55) BBTA-10007236 10,000 72" 36" $1,871.02
56) BBTA-10007248 10,000 72" 48" $2,227.81
57) BBTA-10007260 10,000 72" 60" $2,938.70
58) BBTA-10007266 10,000 72" 66" $6,069.88
59) BBTA-10007272 10,000 72" 72" $6,918.03
60) BBTA-10007854 10,000 78" 54" $2,752.88
61) BBTA-10007860 10,000 78" 60" $3,141.90
62) BBTA-10007866 10,000 78" 66" $6,318.98
63) BBTA-10007872 10,000 78" 72" $7,183.18
64) BBTA-10008466 10,000 84" 66" $6,133.15
65) BBTA-12006042 12,000 60" 42" $1,732.51
66) BBTA-12006054 12,000 60" 54" $2,265.49
67) BBTA-12006648 12,000 66" 48" $2,151.15
68) BBTA-12006660 12,000 66" 60" $2,843.01
69) BBTA-12006666 12,000 66" 66" $4,914.77
70) BBTA-12006672 12,000 66" 72" $5,245.97
71) BBTA-12007230 12,000 72" 30" $1,535.96
72) BBTA-12007266 12,000 72" 66" $5,349.70
73) BBTA-12007836 12,000 78" 36" $1,881.91
74) BBTA-12007848 12,000 78" 48" $2,581.92
75) BBTA-12007860 12,000 78" 60" $3,225.29
76) BBTA-12007866 12,000 78" 66" $5,854.49
77) BBTA-12008466 12,000 84" 66" $6,554.58
78) BBTA-15006036 15,000 60" 36" $1,723.07
79) BBTA-15006072 15,000 60" 72" $3,508.16
80) BBTA-15006636 15,000 66" 36" $1,803.87
81) BBTA-15006666 15,000 66" 66" $5,512.61
82) BBTA-15006672 15,000 66" 72" $5,889.52
83) BBTA-15007236 15,000 72" 36" $2,124.24
84) BBTA-15007266 15,000 72" 66" $5,993.12
85) BBTA-15007272 15,000 72" 72" $6,179.03
86) BBTA-15007836 15,000 78" 36" $2,155.06
87) BBTA-15007866 15,000 78" 66" $6,524.98
88) BBTA-15008466 15,000 84" 66" $7,286.81
89) BBTA-20006036 20,000 60" 36" $1,868.32
90) BBTA-20006048 20,000 60" 48" $2,400.11
91) BBTA-20006054 20,000 60" 54" $2,731.36
92) BBTA-20006060 20,000 60" 60" $3,008.58
93) BBTA-20006072 20,000 60" 72" $3,508.00
94) BBTA-20006636 20,000 66" 36" $2,071.60
95) BBTA-20006660 20,000 66" 60" $3,225.47
96) BBTA-20006672 20,000 66" 72" $6,806.28
97) BBTA-20007236 20,000 72" 36" $2,210.42
98) BBTA-20007248 20,000 72" 48" $2,774.32
99) BBTA-20007260 20,000 72" 60" $3,560.63
100) BBTA-20007266 20,000 72" 66" $6,940.91
101) BBTA-20007272 20,000 72" 72" $7,394.54
102) BBTA-20007836 20,000 78" 36" $2,361.17

WarningPROP 65 WARNING

For California Residents: www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.

  OPTIONS:
1) Loading Dock Plate Option (8 items)


Complementary Products: For dock equipment designed to hold trucks firmly in place during loading and unloading, please see Beacon manual truck restraints.
