Aluminum Dock Ramp

Aluminum Dock Ramp - Economy Dock Plates - BE series

Beacon® BE Series

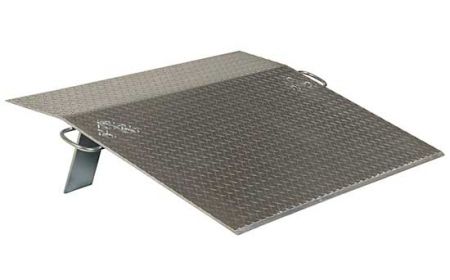

The mobile Aluminum Dock Ramp is used to span the opening between the dock and trailer to allow pallet or hand trucks to safely move in and out of the trailer. Economy Dock Plates are highly portable due to their lightweight construction and handles on each side. The bend or crown is 11 degrees and located 9" from the edge of the dock plates.
Starting at: $471.08

See chart below and click a model number

Product Details

  • Construction: This unit is constructed of high strength, lightweight aluminum alloy non-skid treadplate.
  • Size: Models are available with either a 3/8" plate thickness or 1/2" plate thickness. These units are available in a variety of sizes ranging from 30" wide x 24" long to 72" wide x 60" long.
  • Service Range: The series has a height difference from 3" to 9".
  • Color: The Aluminum Dock Ramp features an aluminum alloy construction with zinc-plated legs and handles.
  • Weight: Models weigh between 35 and 214 lbs.
  • Capacity: Models are available with capacities from 2,000 to 11,900 lbs.
  • Standard: These units meet OSHA requirements with their locking legs.
  • Options: Choose an Aluminum Dock Ramp model to view options, including units without handles, with only one handle, with extra legs or handles, with a smooth surface, an anti-theft chain, a trade-in allowance, or to specify a special location of the legs or bend.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Units are not for use with fork trucks.
BE-4830 360° View

Documents
Aluminum Dock Ramp - BE Series
Model No. Width Length HT Diff. Capacity (LBS) Plate Thickness Note Price
1) BE-3024 30" 24" 3" 3,000 ⅜" A $626.25
2) BE-3030 30" 30" 4" 2,300 ⅜" A $760.06
3) BE-3036 30" 36" 5" 1,800 ⅜" A $841.48
4) BE-3048 30" 48" 7" 1,400 ⅜" A $1,000.16
5) BE-3624 36" 24" 3" 3,600 ⅜" A $701.32
6) BE-3630 36" 30" 4" 3,000 ⅜" A $904.15
7) BE-3636 36" 36" 5" 2,500 ⅜" A $1,060.53
8) BE-3648 36" 48" 7" 1,900 ⅜" A $1,206.83
9) BE-3660 36" 60" 9" 3,000 ⅜"   $1,446.96
10) BE-4824 48" 24" 3" 5,200 ⅜" A $877.00
11) BE-4830 48" 30" 4" 4,100 ⅜" A $1,043.87
12) BE-4836 48" 36" 5" 3,500 ⅜" A $1,271.42
13) BE-4842 48" 42" 6" 3,000 ⅜"   $1,378.15
14) BE-4848 48" 48" 7" 2,600 ⅜"   $1,488.84
15) BE-4860 48" 60" 9" 1,800 ⅜"   $1,781.11

Aluminum Dock Ramp - BE Series (continued)
Model No. Width Length HT Diff. Capacity (LBS) Plate Thickness Note Price
16) BE-6024 60" 24" 3" 5,700 ⅜" A $1,000.12
17) BE-6030 60" 30" 4" 4,600 ⅜" A $1,200.42
18) BE-6036 60" 36" 5" 4,100 ⅜"   $1,388.51
19) BE-6042 60" 42" 6" 3,500 ⅜"   $1,572.31
20) BE-6048 60" 48" 7" 2,900 ⅜"   $1,764.47
21) BE-6060 60" 60" 9" 2,000 ⅜"   $2,075.63

22) BE-7224 72" 24" 3" 6,500 ⅜" A $1,225.73
23) BE-7230 72" 30" 4" 5,400 ⅜"   $1,396.71
24) BE-7236 72" 36" 5" 4,300 ⅜"   $1,705.87
25) BE-7248 72" 48" 7" 3,400 ⅜"   $2,269.83
26) BE-7260 72" 60" 9" 2,500 ⅜"   $2,449.33

27) BEH-3024 30" 24" 3" 5,200 ½" A $471.08
28) BEH-3030 30" 30" 4" 4,100 ½" A $539.69
29) BEH-3036 30" 36" 5" 3,500 ½" A $656.76
30) BEH-3048 30" 48" 7" 2,600 ½" A $846.64
31) BEH-3624 36" 24" 3" 6,200 ½" A $551.92
32) BEH-3630 36" 30" 4" 5,100 ½" A $646.15
33) BEH-3636 36" 36" 5" 4,300 ½" A $750.99
34) BEH-3648 36" 48" 7" 3,000 ½" A $951.70
35) BEH-4824 48" 24" 3" 8,200 ½" A $730.78
36) BEH-4830 48" 30" 4" 6,300 ½" A $854.73
37) BEH-4836 48" 36" 5" 5,300 ½" A $986.74
38) BEH-4842 48" 42" 6" 4,300 ½"   $1,196.60
39) BEH-4848 48" 48" 7" 3,800 ½"   $1,329.99
40) BEH-4860 48" 60" 9" 2,900 ½"   $1,650.25

41) BEH-6024 60" 24" 3" 10,000 ½" A $1,265.34
42) BEH-6030 60" 30" 4" 7,800 ½" A $1,613.91
43) BEH-6036 60" 36" 5" 6,600 ½"   $1,862.63
44) BEH-6042 60" 42" 6" 5,500 ½"   $2,163.10
45) BEH-6048 60" 48" 7" 4,800 ½"   $2,445.24
46) BEH-6060 60" 60" 9" 3,700 ½"   $3,046.52

Aluminum Dock Ramp - BE Series (continued)
Model No. Width Length HT Diff. Capacity (LBS) Plate Thickness Note Price
47) BEH-7224 72" 24" 3" 11,900 ½" A $1,507.58
48) BEH-7230 72" 30" 4" 9,500 ½"   $1,941.96
49) BEH-7236 72" 36" 5" 7,800 ½"   $2,231.97
50) BEH-7248 72" 48" 7" 5,900 ½"   $3,042.44
Notes:
A: May Ship Via UPS
