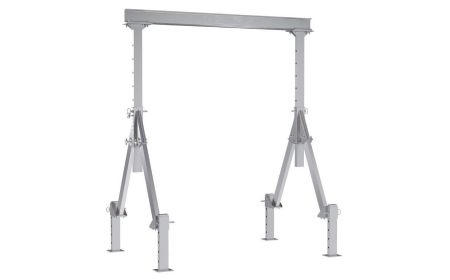

Aluminum A Frame Hoist with Leveling Legs

Aluminum A Frame Hoist with Leveling Legs - BAHA-ALO Series

Bear Claw® BAHA-ALO Series

Aluminum A Frame Hoist with Leveling Legs consists of a stationary crane design with the ability to adjust for off-set surfaces with stable positioning.
Starting at: $4,490.01

See chart below and click a model number

Product Details

  • Construction: Aluminum Construction for indoor and outdoor application use.
  • Overall Length: Aluminum A Frame Hoist with Leveling Legs top beam lengths are available in 8', 10', 12', and 15'. Select the beam length that offers ample space for lifting and lowering.
  • Lift Heights: The height and leveling adjustments can be with the support from a fork truck or other overhead lifting devices for assistance.
  • Installation: Flat footed design provides stability.
  • Operation: Each of the 4 legs have a pin style adjustment design with pre drilled alteration holes, allowing the adjustable legs to be raised or lowered in increments.
  • Options: Hoist and Trolly sold separately.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.
Aluminum A Frame Hoist with Leveling Legs - BAHA-ALO Series
Model No. Capacity (LBS) Beam Length Beam Height Under I-Beam Range Base Width Flange Width Note Price
1) BAHA-2-8-8-ALO 2,000 96" 3.31" 106" 64" 3.31" A $4,490.01
2) BAHA-2-8-10-ALO 2,000 96" 3.31" 130" 64" 3.31" A $4,780.60
3) BAHA-2-8-12-ALO 2,000 96" 3.31" 152" 64" 3.31" A $4,969.77
4) BAHA-2-10-8-ALO 2,000 120" 4.18" 106" 64" 4.18" A $4,903.79
5) BAHA-2-10-10-ALO 2,000 120" 4.18" 130" 64" 4.18" A $5,037.39
6) BAHA-2-10-12-ALO 2,000 120" 4.18" 152" 64" 4.18" A $5,295.56
7) BAHA-2-12-8-ALO 2,000 144" 4.18" 107" 64" 4.18" A $5,454.06
8) BAHA-2-12-10-ALO 2,000 144" 4.18" 130" 64" 4.18" A $5,624.29
9) BAHA-2-12-12-ALO 2,000 144" 4.18" 152" 64" 4.18" A $5,856.02
10) BAHA-2-15-8-ALO 2,000 180" 4.18" 106" 64" 4.18" A $6,611.74
11) BAHA-2-15-10-ALO 2,000 180" 4.18" 130" 64" 4.18" A $7,074.01
12) BAHA-2-15-12-ALO 2,000 180" 4.18" 152" 64" 4.18" A $7,351.40

13) BAHA-4-8-8-ALO 4,000 96" 3.31" 106.12" 64.18" 3.31" A $5,973.47
14) BAHA-4-8-10-ALO 4,000 96" 3.31" 130.12" 64.18" 3.31" A $6,218.47
15) BAHA-4-8-12-ALO 4,000 96" 3.31" 152.12" 64.18" 3.31" A $6,522.24
16) BAHA-4-10-8-ALO 4,000 120" 4.18" 106.12" 64.18" 4.18" A $6,894.98
17) BAHA-4-10-10-ALO 4,000 120" 4.18" 130.12" 64.18" 4.18" A $7,103.26
18) BAHA-4-10-12-ALO 4,000 120" 4.18" 152.12" 64.18" 4.18" A $7,621.40
19) BAHA-4-12-8-ALO 4,000 144" 4.18" 106.12" 64.18" 4.18" A $7,092.99
20) BAHA-4-12-10-ALO 4,000 144" 4.18" 130.12" 64.18" 4.18" A $7,476.14
21) BAHA-4-12-12-ALO 4,000 144" 4.18" 152.12" 64.18" 4.18" A $8,007.25
Notes:
A: * Deduct 12" for distance between upright; (4) 8" 4-position Swivel Lock Phenolic Casters Standard; Adjustable in 6" Increments. * Hoist & Trolley sold separately*. *Assembly by others*.

WarningPROP 65 WARNING

For California Residents: www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.
