Scissor Gates

Scissor Gates - Security Door Gate - BVSSG series

Beacon® BVSSG Series

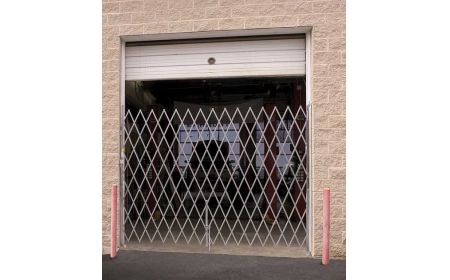

The Scissor Gates are designed to secure daytime access and to add security during nighttime. This Security Door Gate secures receiving doors, loading docks, lift-up doors, hallways, and entryways without sacrificing visibility or air circulation. These models are available in single or double gate design. Units feature durable 3" rubber casters, allowing workers to completely and quickly retract them.
Starting at: $393.94

See chart below and click a model number

Product Details

  • Construction: These units are manufactured of heavy duty, 15 gauge (.071" thick) steel with U-channels riveted back-to-back using airplane-quality rivets. Vertical angles are 1-1/2" x 1-1/2".
  • Size: Units are 11" to 15" when collapsed and have usable widths from 3' up to 20'. Collapsed heights range from 6' 6" up to 8' 6". In use heights are from 6' to 8'. Contact Beacon for custom sizes.
  • Service Range: Single gate models have a service range up to 10'. The double type models have a service range up to 20'. Note: Units lose up to 6" when extended.
  • Installation: The installation hardware is included.
  • Weight: Weights range from 69 to 230 lbs.
  • Operation: The center drop pin rests in included hole in order to secure extended gate. Lock is located on right side of single units.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents



Galvanized Heavy Duty Steel Scissor Gates - Single Style - BVSSG Series
Model No. Collapsed Width Usable Width Collapsed Height In Use Height Price
1) BSSG-465 11" 3' to 4' 6' 6" 6' $393.94
2) BSSG-470 11" 3' to 4' 7' 6' 6" $433.68
3) BSSG-475 11" 3' to 4' 7' 6" 7' $416.40
4) BSSG-480 11" 3' to 4' 8' 7' 6" $516.61
5) BSSG-485 11" 3' to 4' 8' 6" 8' $535.62

6) BSSG-565 11" 4' to 5' 6' 6" 6' $412.94
7) BSSG-570 11" 4' to 5' 7' 6' 6" $454.41
8) BSSG-575 11" 4' to 5' 7' 6" 7' $495.88
9) BSSG-580 11" 4' to 5' 8' 7' 6" $535.62
10) BSSG-585 11" 4' to 5' 8' 6" 8' $556.35

11) BSSG-665 11" 5' to 6' 6' 6" 6' $454.41
12) BSSG-670 11" 5' to 6' 7' 6' 6" $495.88
13) BSSG-675 11" 5' to 6' 7' 6" 7' $535.62
14) BSSG-680 11" 5' to 6' 8' 7' 6" $577.09
15) BSSG-685 11" 5' to 6' 8' 6" 8' $599.55

Galvanized Heavy Duty Steel Scissor Gates - Single Style - BVSSG Series (continued)

Model No. Collapsed Width Usable Width Collapsed Height In Use Height Price
16) BSSG-765 11" 6' to 7' 6' 6" 6' $495.88
17) BSSG-770 11" 6' to 7' 7' 6' 6" $535.62
18) BSSG-775 11" 6' to 7' 7' 6" 7' $577.09
19) BSSG-780 11" 6' to 7' 8' 7' 6" $620.28
20) BSSG-785 11" 6' to 7' 8' 6" 8' $641.01

21) BSSG-865 11" 7' to 8' 6' 6" 6' $556.35
22) BSSG-870 11" 7' to 8' 7' 6' 6" $599.55
23) BSSG-875 11" 7' to 8' 7' 6" 7' $642.74
24) BSSG-880 11" 7' to 8' 8' 7' 6" $680.75
25) BSSG-885 11" 7' to 8' 8' 6" 8' $722.22

26) BSSG-970 15" 8' to 9' 7' 6' 6" $722.22
27) BSSG-975 15" 8' to 9' 7' 6" 7' $763.69
28) BSSG-980 15" 8' to 9' 8' 7' 6" $803.43
29) BSSG-1070 15" 9' to 10' 7' 6' 6" $746.41
30) BSSG-1080 15" 9' to 10' 8' 7' 6" $824.16
Galvanized Heavy Duty Steel Scissor Gates - Double Style - BVPFG Series
Model No. Collapsed Width Usable Width Collapsed Height In Use Height Price
31) BPFG-865 11" 6' to 8' 6' 6" 6' $680.75
32) BPFG-870 11" 6' to 8' 7' 6' 6" $742.95
33) BPFG-875 11" 6' to 8' 7' 6" 7' $763.69
34) BPFG-880 11" 6' to 8' 8' 7' 6" $803.43
35) BPFG-885 11" 6' to 8' 8' 6" 8' $824.16

36) BPFG-1065 11" 8' to 10' 6' 6" 6' $722.22
37) BPFG-1070 11" 8' to 10' 7' 6' 6" $763.69
38) BPFG-1075 11" 8' to 10' 7' 6" 7' $803.43
39) BPFG-1080 11" 8' to 10' 8' 7' 6" $846.62
40) BPFG-1085 11" 8' to 10' 8' 6" 8' $888.09

41) BPFG-1265 11" 10' to 12' 6' 6" 6' $774.05
42) BPFG-1270 11" 10' to 12' 7' 6' 6" $825.89
43) BPFG-1275 11" 10' to 12' 7' 6" 7' $867.36
44) BPFG-1280 11" 10' to 12' 8' 7' 6" $948.56
45) BPFG-1285 11" 10' to 12' 8' 6" 8' $990.03

Galvanized Heavy Duty Steel Scissor Gates - Double Style - BVPFG Series (continued)

Model No. Collapsed Width Usable Width Collapsed Height In Use Height Price
46) BPFG-1465 11" 12' to 14' 6' 6" 6' $889.82
47) BPFG-1470 11" 12' to 14' 7' 6' 6" $929.56
48) BPFG-1475 11" 12' to 14' 7' 6" 7' $901.91
49) BPFG-1480 15" 12' to 14' 8' 7' 6" $1,036.68
50) BPFG-1485 15" 12' to 14' 8' 6" 8' $1,085.06

51) BPFG-1665 15" 14' to 16' 6' 6" 6' $1,012.49
52) BPFG-1670 15" 14' to 16' 7' 6' 6" $1,055.69
53) BFG-1675 15" 14' to 16' 7' 6" 7' $1,119.61
54) BPFG-1680 15" 14' to 16' 8' 7' 6" $1,200.82
55) BPFG-1685 15" 14' to 16' 8' 6" 8' $1,302.76

56) BPFG-1870 15" 16' to 18' 7' 6' 6" $1,257.84
57) BPFG-1875 15" 16' to 18' 7' 6" 7' 6" $1,363.23
58) BPFG-1880 15" 16' to 18' 8' 7' $1,428.89
59) BPFG-2070 15" 18' to 20' 7' 6' 6" $1,425.44
60) BPFG-2080 15" 18' to 20' 8' 7' 6" $1,631.04
