Rack Guide Rails

Beacon® Rack Guide Rails

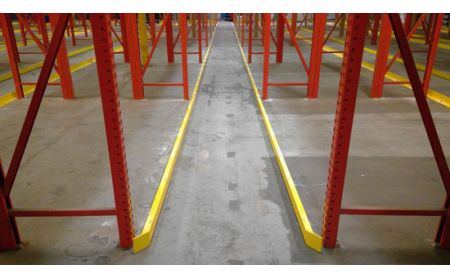

Rack Guide Rails is a pallet rack bumper guide modular unit. The units steer forklifts in an aisle away from pallet racks, preventing damage to the pallet rack and pallets on the rack.
Starting at: $92.75

See chart below and click a model number

Product Details

  • Construction: Rack Guide Rails features steel angle.
  • Size: Angle size is 3" x 4" with 3/8" thick steel. Lengths can be ordered to fit in line, end to end for the required length application.
  • Power: Powder coat safety yellow is standard. Optional colors include black, grey, blue and orange.
  • Installation: 9/16" Holes are predrilled in the angle on 24" centers. Floor anchors by others.
  • Standard: Lengths are 6', 7', 8', 9', 10', and 12'. Special lengths are available.
  • Options: Mitered End for Guard Rail.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents
Rack Guide Rails
Model No. Length Steel Thickness Angle Size Anchor Holes Price
1) BGRSA-3438-72 6' 3 / 8 " 3"x 4" 9/16" Holes on 24" Centers $131.65
2) BGRSA-3438-84 7' 3 / 8 " 3"x 4" 9/16" Holes on 24" Centers $150.73
3) BGRSA-3438-96 8' 3 / 8 " 3"x 4" 9/16" Holes on 24" Centers $167.90
4) BGRSA-3438-108 9' 3 / 8 " 3"x 4" 9/16" Holes on 24" Centers $206.06
5) BGRSA-3438-120 10' 3 / 8 " 3"x 4" 9/16" Holes on 24" Centers $221.33
6) BGRSA-3438-144 12' 3 / 8 " 3"x 4" 9/16" Holes on 24" Centers $261.40
Model No. Description Height Steel Thickness Angle Size Anchor Holes Price
7) BGR2-M Mitered End for Guard Rail 1"x1" mitered End 3"x4" ⅜" 9/16" Holes $92.75
